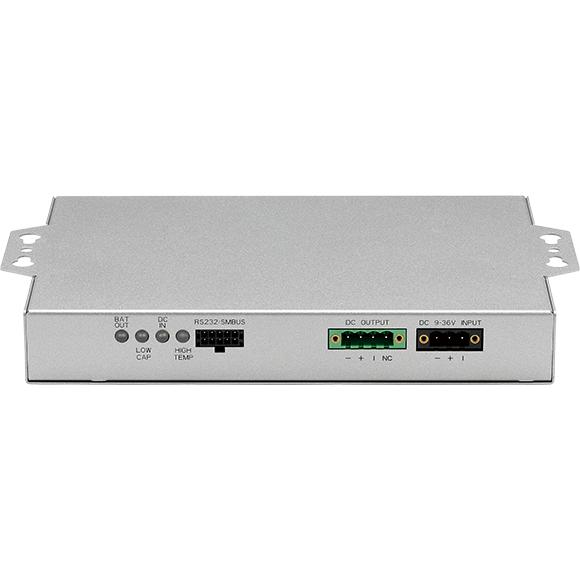

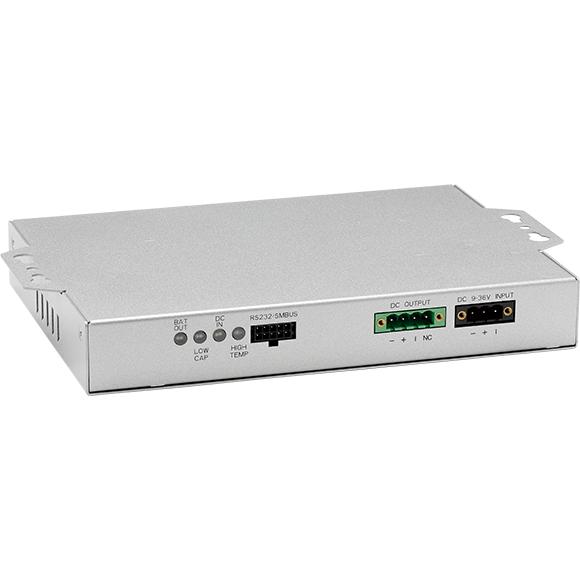

VTK-62B
Smart UPS for in-vehicle application
Big battery capacity 8600 mAh
Lithium-ion rechargeable cell
Real-Time battery status availability
SDK for software development
RS-232/SMBus for communication
Power off delay time setting
- Introduction
- Specification
- Order
- Download
VTK-62B is an intelligent rechargeable battery kit to provide an uninterrupted power with a built-in battery management system. It is designed to use with NEXCOM vehicle/railway computers with enhanced charge/discharge efficiency. Through RS-232 and SMBus interface, VTK-62B can provide crucial information about the status of battery.
| Power Input | 9~36VDC |
| Power Output | 12.6VDC |
| Battery Type | Lithium-ion |
| Capacity | 8600mAh +/-5% |
| Smart Battery Status Information | Input voltage Battery capacity Battery temperature Discharge/charge/stop status Bttery failure The value of delay off time |
| I/O Interface | 1 x 3-pin terminal block (optional M12 connector) for GND, V-In and Ignition 1 x 4-pin terminal block (optional M12 connector) for GND, V-Out and Ignition 1 x 10-pin connector RS232 (TX/RX) SMBus 2 x DO GND 4 x LED indicators Back-up battery power output Capacity alarm Temperature alarm Power in |
| Dimensions | VTK-62B + VTK-62B1-BK, 280 (W) x 150 (D) x 42.2 (H) mm VTK-62B + VTK-62B2-BK, 297.3 (W) x 175 (D) x 39 (H) mm |
| Environment | Operation temperature - Charging: 0~45°C - Discharging: 0~55°C Vibration - 2G, 5~500Hz (in operation) - Operation: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle Highway Truck - Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity test Shock - Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g - Crash Hazard: MIL-STD-810F, Method 516, Procedure V, Ground equipment=75g |
| Certification | CE/FCC class A |
VTK-62B (PN: 10VK0062B00X0)
Back up battery kit (w/ o Bracket)
VTK-62B1-BK (PN: 10VK0062B01X0)
VTK-62B bracket kit, 150 x 280 x 42.2 mm for VTC 1020, VTC 1020-PA, VTC 1910, VTC 1911-IPK

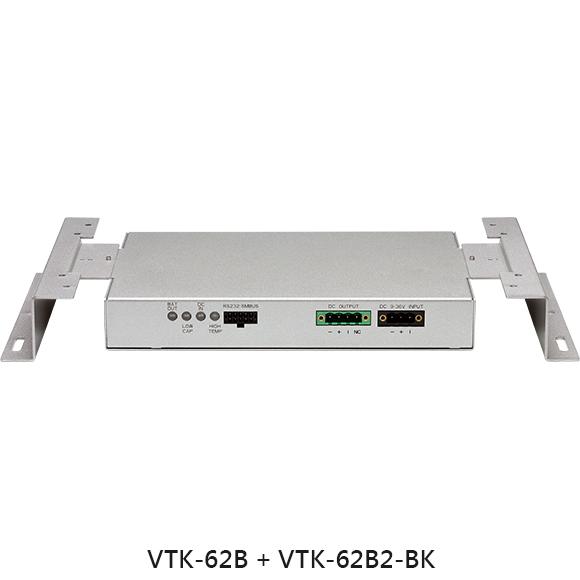

VTK-62B2-BK (PN: 10VK0062B02X0)
VTK-62B bracket kit, 175 x 297.3 x 39 mm for VTC and MVS series (w/ o VTC 1020, VTC 1020-PA, VTC 1910, VTC 1911-IPK)
