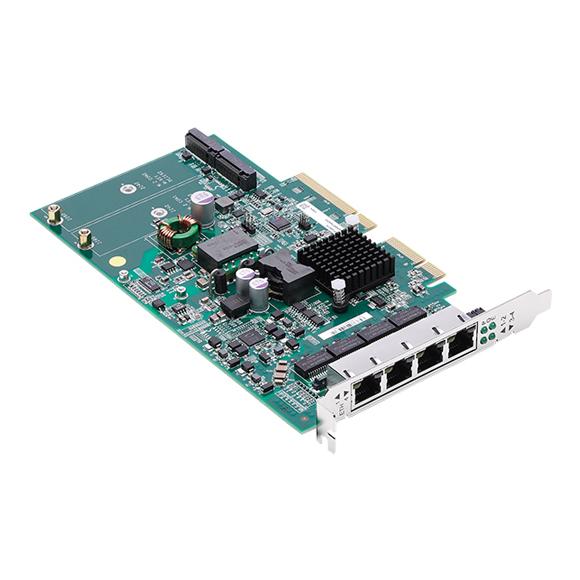

VIOP-GE74

Intelligent 4-Port PoE+ GbE/GigE Frame Grabber

In-vehicle and machine vision applications

4-Port independent GbE with PoE+ function

2KV isolation for LAN signal and power

PoE on/off and power watt monitoring per port

Two ultra-fast NVMe storage media for RAID0/1 configuration

Compact size PCIe card for easy and quick install

9K-byte Jumbo frame and PTP (IEEE 1588) support

Compliant with E-Mark, CE/FCC ClassA and MIL-STD-810G for anti-vibration/shock

Tough environment with operating temp -30~85°C


With built-in Intel® 82580EB controller, GE74 supports up to 4 independent GbE with 1000Mbps satisfying a uncompressing video stream at 4K resolutions in high frame-rate used on AI-aided secure surveillance, auto-inspection/machine vision in smart factory, etc. applications. VIOP-GE74 is equipped with an excellent protection of OCP/OVP and up to 2KV isolation of data and power Ethernet to avoid any transient surge or damage to LOM system. Besides, there are two untra-fast media NMVe SSD to configure RAID0/1 for data integrity if installed on ATC 8110 product. To run at harsh environment is more and more important, GE74 is compliant with military MIL-STD to sustain the vibration and shock and the operating temperature can reach up to -30~85°C.

PCI Express

PCIe 3.0 x4 lane compliant

Extra proprietary PCIe slot for NVMe storage expansion

Power draw from PCIe slot in default

Ethernet4-Port RJ45 independent 10/100/1000 Mbit/s

IEEE 802.3/802.3u/802.3ab and IEEE802.3x

9K-byte jumbo frame

IEEE 802.1AS/IEEE 1588 (PTP) support

GbE controller: Intel® 82580EB

Power over Ethernet (PoE)

IEEE 802.3af/at compliant

25W per port in max., 4-port total at 52W PSE

PoE on/off and power watt monitorin

Protection

OCP & OVP

2KV isolation for Ethernet

NVMe Media Storage*Form factor: M.2 key-M (2242/2280) slot

Interface: PCIe 3.0 x2

Compatible to key M/B+M M.2 PCIe 3.0x4/x2 interface

2 x M.2 slot

Environment & Regulation

Operating temperatures: -30~85°C

Storage temperatures: -40~85°C

Damp heat test per EN60068-2-30

Humidity: IEC60068-2-3, 40C, 95%, 48Hrs

CE, FCC Class A, E-Mark (pre-installed on ATC 8110)

MechanicsAnti-vibration

- IEC 60068-2-64.2.5G (5~500Hz)

- Operating: MIL-STD-810G, 514.6C Procedure 3, Category 4

- Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24

Anti-shock

- MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g

- Crash hazard: Procedure V, ground equipment=75g

Dimension: 190mm x 111mm (L x H)

Net weight: 176g


VIOP-GE74 (P/N: 20V00GE7400X0)

4 x RJ45 independent GbE/GigE PCIe 3.0 card, PoE 52W, 2 x NVMe M.2 slot

*Note: NVMe M.2 storage is valid when GE74 is installed on ATC 8110 1st PCIe slot
