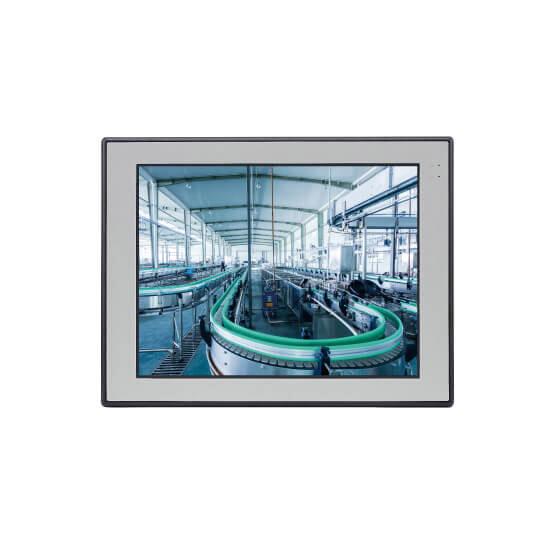

APPC1250T

12英寸4:3 5线电阻式触摸应用面板电脑

板载Intel® Celeron® J3455,1.5GHz,4GBDDR3L

2 x DP,最多3个显示器

2 x USB 3.0, 1 x USB 2.0, 2 x LANs, 3x COMs

支持1 x mini-PCIe和M.2存储

产品系列包括:12.1" (appc1250t) / 15" (appc1550t) / 17" (appc1750t) / 19" (appc1950t)


12.1 "XGA无风扇平板电脑APPC 1250T结合了工业主板,旨在实现多功能的工业应用。APPC 1250T支持1024 x 768(XGA)分辨率和500尼特亮度。前面板采用嵌入式设计,符合IP65标准,使其成为工业应用的完美选择。


APPC 1250T支持LTE,通过双千兆以太网连接器和一个迷你PCIe插槽进行WLAN通信。在存储设备上有几种选择,如M.2和2.5 "SSD。由于支持24V DC的直流电输入,APPC 1250T可以在工业领域和机器设备中获得一个强大的立足点。


此外,APPC 1250T可以通过DP连接第二台显示器,实现双独立显示,并有3个COM端口选项,这将使其成为各种解决方案的真正的智能系统。


面板LCD size: 12.1”, 4:3

Resolution: XGA 1024 x 768

Luminance: 500cd/m2

Contrast ratio: 700

LCDcolor: 16.7M

Viewing angle: 70(U), 70(D), 80(L), 80(R)

Backlight: LED

触摸

5-wire resistive (flush panel type)

Light transmission: 80%

Interface: US

系统

System memory: 1 x 204-pin DDR3L SO DIMM socket, 4GB DDR3L(default), support up to 8GB DDR3L 1866, non-ECC and un-buffered

BIOS: AMI BIOS

CPU: onboard Intel® Celeron® J3455 Quad Core processor, 1.50GHz

Storage device:

  1 x Internal M.2 2242

  1 x Hard drive bay: optional 1 x 2.5” SATA HDD

Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)

Expansion: 1 x mini-PCIe sockets (support optional Wi-Fi module)

Front LED indicator to show operating status

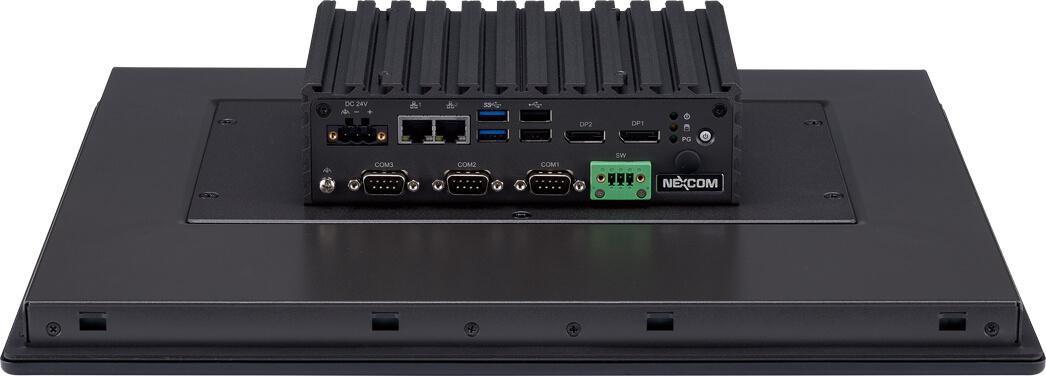

接口Ethernet: 2 x RJ45

Display: 2 x DP1.2

USB: 2 x USB 2.0, 2 x USB 3.0

LED indicator: power/HDD/GPIO programmable LED

Power button

COM #3: RS232/422/485

COM #1&2: RS232

以太网

LAN chip: dual Intel® I210 IT Gigabit LAN

Ethernet interface: 10/100/1000 based-Tx Ethernet compatibl

基本信息

Color: Pantone black\RAL 15 00 front bezel w/ Pantone 400C\RAL 090 80 10 metal style membrane and black silver PC box

IP protection: IP65 front

Mounting: panel/wall/stand/VESA 100mm x 100mm

Power:

   Power input: 24 VDC

   Power adapter: optional AC to DC power adapter (+24V, 60W)

Vibration:

   IEC 68 2-64 (w/ HDD)

   1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)

   2Grms @ sine, 5~500Hz, 1hr/axis (M.2/SSD operating)

   2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)

Shock:

   IEC 68 2-27

   HDD: 20G @ wall mount, half sine, 11ms

Temperature:

   Operating temperature: 0°C to 50°C

   Storage temperature: -20°C to 75°C

Operating humidity: 10%~90% relative humidity, non-condensing (limits to be at 90%

RH at max 50°C)

Dimension: 317 x 243 x 82.5 mm

Weight: 3.5kg

认证

CE approval

FCC Class A

操作系统Windows 10 64-bit


APPC 1250T (10IA0125000X0)

12.1” XGA LED backlight touch panel PC, Intel® Celeron® J3455, Quad Core processor, 1.50GHz, touch screen, 4GB DDR3L, 1 x RS232/422/485


Options

24V, 60W AC/DC power adapter w/o power cord (P/N: 7400060054X00)
