APPC1750T
板载Intel® Celeron® J3455,1.5GHz,4GBDDR3L
2 x DP,最多3个显示器
2 x USB 3.0, 1 x USB 2.0, 2 x LANs, 3x COMs
支持1 x mini-PCIe和M.2存储
产品系列:12.1" (appc1250t) / 15" (appc1550t) / 17" (appc1750t) / 19" (appc1950t)
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
17 "SXGA无风扇平板电脑APPC 1750T结合了工业主板,旨在实现多功能的工业应用。APPC 1750T支持1280 x 1024(SXGA)分辨率和350尼特亮度。前面板采用嵌入式设计,符合IP65标准,使其成为工业应用的完美选择。
APPC 1750T支持LTE,通过双千兆以太网连接器和迷你PCIe插槽进行WLAN通信。在存储设备上有几种选择,如M.2和2.5 "SSD。由于支持24VDC的直流电源输入,APPC 1750T可以在工业领域和机器设备中获得强大的立足点。此外,APPC 1750T可以通过DP连接第二台显示器,实现双独立显示,加上3个COM端口选项,将使它成为一个真正的智能系统的各种解决方案。
面板 | LCD size: 17”, 4:3 Resolution: XGA 1024 x 768 Luminance: 350cd/m2 Contrast ratio: 800 LCDcolor: 16.7M Viewing angle: 60 (U), 80 (D), 80 (L), 80 (R) Backlight: LED |
触摸 | 5-wire resistive (flush panel type) Light transmission: 81% Interface: US |
系统 | CPU: onboard Intel® Celeron® J3455 Quad Core processor, 1.50GHz BIOS: AMI BIOS System memory: 1 x 204-pin DDR3L SO DIMM socket, 4GB DDR3L(default), support up to 8GB DDR3L 1866, non-ECC and un-buffered Storage device: - 1 x Internal M.2 2242 - 1 x Hard drive bay: optional 1 x 2.5” SATA HDD Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C) Expansion: 1 x mini-PCIe sockets (support optional Wi-Fi module) Front LED indicator to show operating status |

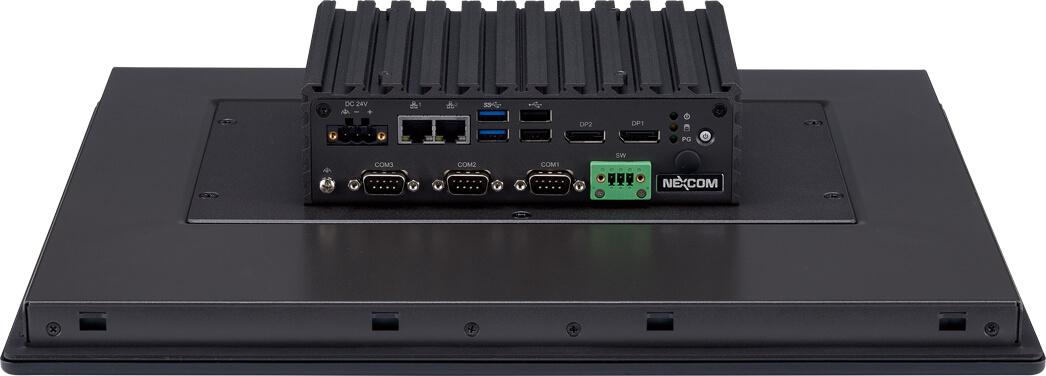

接口 | Ethernet: 2 x RJ45 Display: 2 x DP1.2 USB: 2 x USB 2.0, 2 x USB 3.0 LED indicator: power/HDD/GPIO programmable LED Power button COM #3: RS232/422/485 COM #1&2: RS232 |
以太网 | LAN chip: dual Intel® I210 IT Gigabit LAN Ethernet interface: 10/100/1000 based-Tx Ethernet compatibl |
基本信息 | Color: Pantone blackRAL 15 00 front bezel w/ Pantone 400CRAL 090 80 10 metal style membrane and black silver PC box IP protection: IP65 front Mounting: panel/wall/stand/VESA 100mm x 100mm Power: -Power input: 24 VDC -Power adapter: optional AC to DC power adapter (+24V, 60W) Vibration: -IEC 68 2-64 (w/ HDD) -1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating) -2Grms @ sine, 5~500Hz, 1hr/axis (M.2/SSD operating) -2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating) -2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock: -IEC 68 2-27 -HDD: 20G @ wall mount, half sine, 11ms Temperature: -Operating temperature: 0°C to 50°C -Storage temperature: -20°C to 75°C Operating humidity: 10%~90% relative humidity, non-condensing (limits to be at 90% RH at max 50°C) Dimension: 410.42 x 340.42 x 81.9mm Weight: 5.5kg |
认证 | CE approval FCC Class A |
操作系统 | Windows 10 64-bit |
APPC1750T (10IA0175000X0)
17” SXGA LED backlight touch panel PC, Intel® Celeron® Quad Core processor J3455, 1.50GHz, touch screen, 4GB DDR3L,1 x RS232/422/485
Options
24V, 60W AC/DC power adapter w/o power cord (P/N: P/N: 7400060054X00)
