APPD1206T
符合IP65标准的塑料前挡板,由5线制触摸屏组成的平齐面板
三重显示输入接口:模拟VGA/DVI-D/DisplayPort
与APPC系列有相同的外观
双触摸屏接口:RS232、USB
超薄的深度
OSD多语言功能
- 产品介绍
- 技术参数
- 订购信息
- 相关下载

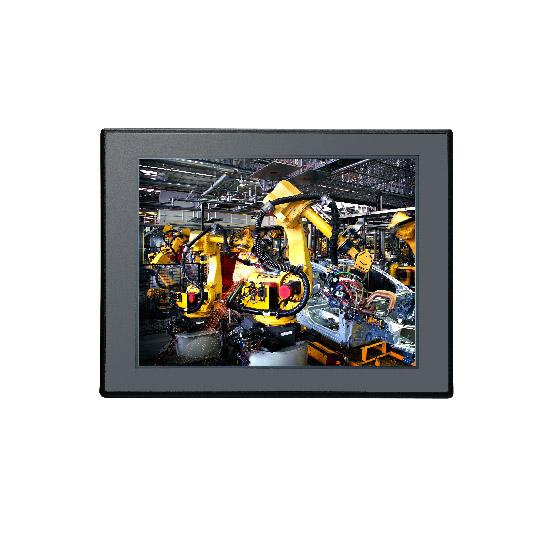

12.1英寸4:3液晶显示器APPD 1206T是基于5线电阻式触摸屏的。它有500尼特的亮度,可以支持高达1024 x 768的分辨率。APPD 1206T是系统和显示器保持分离的空间关键环境的理想选择。此外,采用嵌入式面板设计,具有IP65防护能力。
APPD 1206T提供常用的视频接口:VGA、DVI和DisplayPort同时支持数字和模拟信号;触摸屏可通过RS232或USB端口连接。此外,APPD 1206T支持12~24VDC电源输入,提供面板安装和VESA安装,允许用户选择符合自己情况的安装方式。
APPD 1206T是NISE无风扇电脑、NViS安全监控系列和APPC面板电脑需要第二台显示器时的最佳解决方案。
面板 | LCD size: 12.1", 4:3 Resolution: XGA 1024 x 768 Luminance: 500cd/m2 Contrast ratio: 700 LCD color: 16.7M Viewing angle: 70 (U), 70 (D), 80 (L), 80 (R) Backlight: LE |
触摸 | 5-Wire resistive (flush panel type) Light transmission: 80% Interface: USB and RS232 |

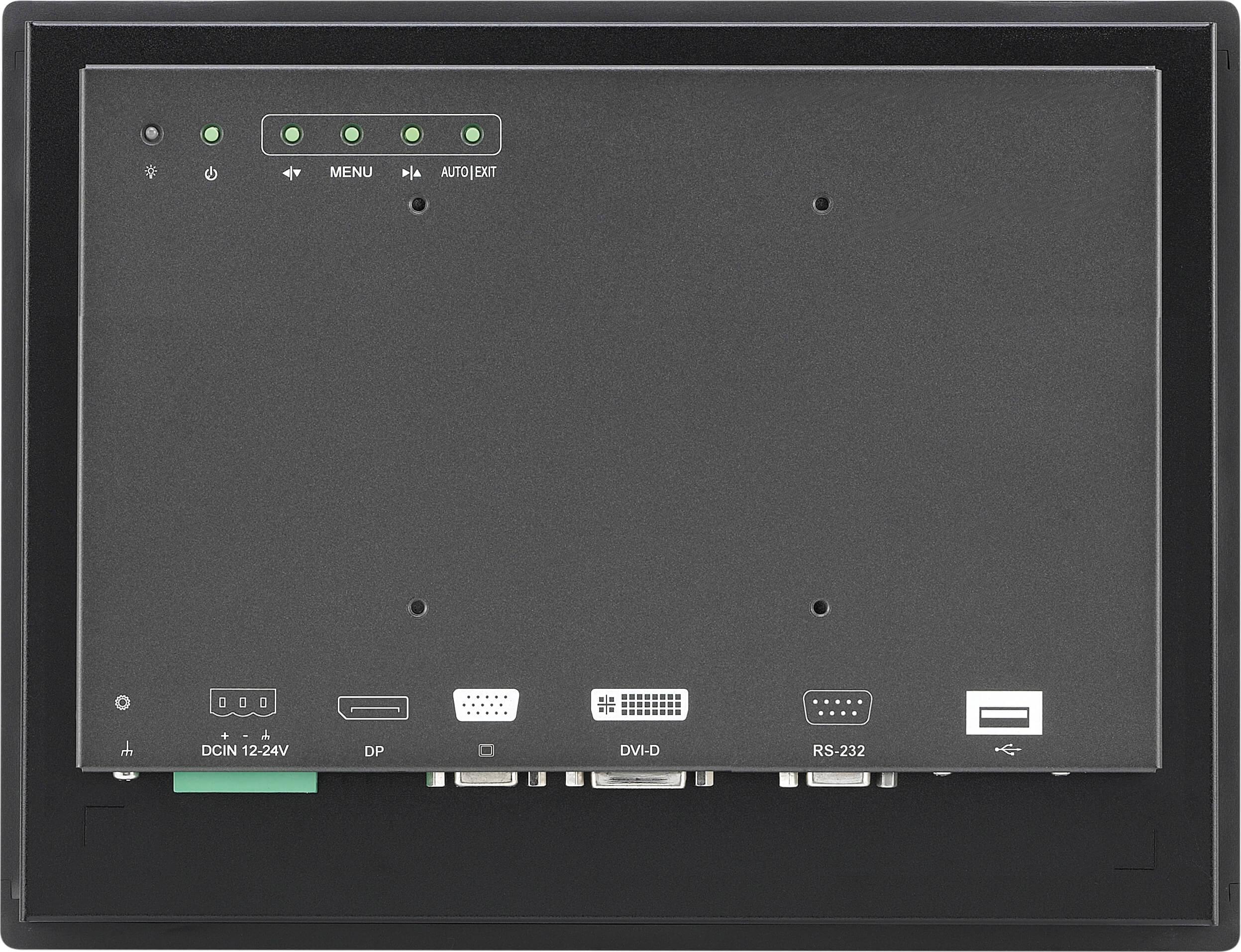

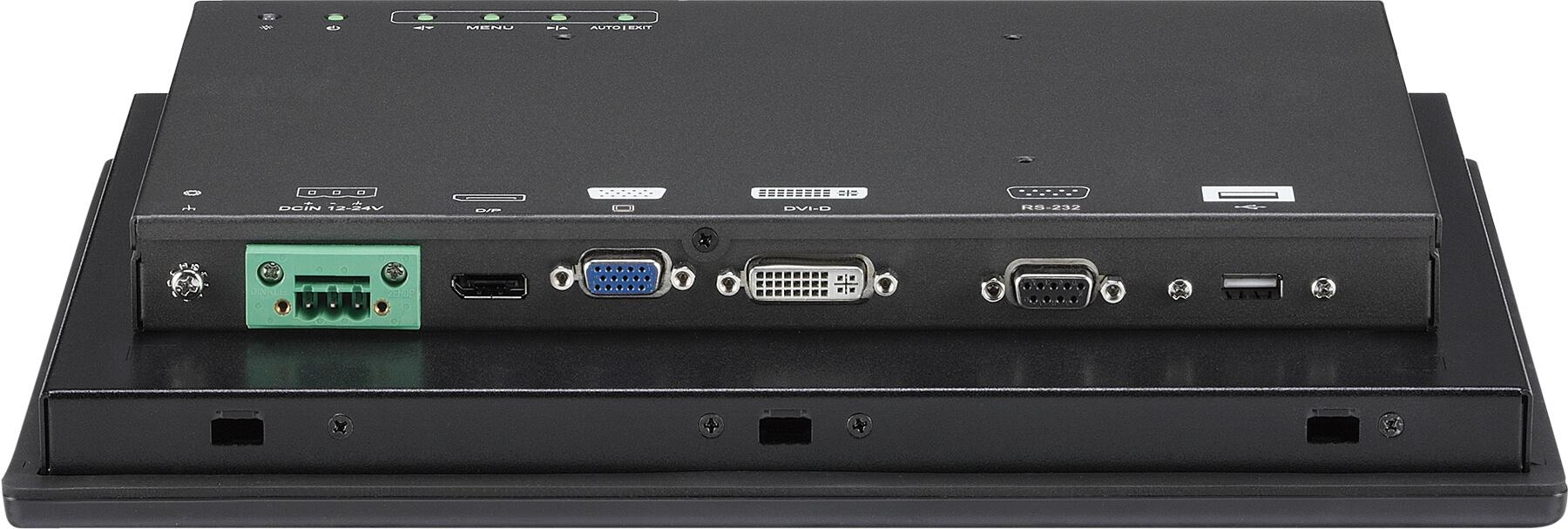

接口 | Touch screen interface port: RS-232 (1 x DB9)/USB type A Video port: VGA (1 x DB15)/DVI-D (1 x DVI-I connector)/DisplayPort DC power input connector: 3-pin Phoenix terminal Block |
OSD 功能 | OSD keypadMultilanguage OSD |
基本信息 | Power input: 12V~24VDC IP protection: IP65 front Color: pantone black and black silver chassis box Mounting: panel/wall/stand/VESA 100mm x 100mm Power adapter: optional AC to DC power adapter (+12V, 60W) Vibration: -IEC 68 2-64 -2Grms @ sine, 5~500Hz, 1hr/axis (Operating) -2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating) Shock: -IEC 68 2-27 -20G@wall mount, half sine, 11ms -Operating temperature: -5°C to 50°C -Storage temperature: -20°C to 75°C Operating humidity: 10%~90% relative humidity, non-condensing Dimension: 317 x 243 x 53.5mmWeight: 2.8K |
认证 | CE approval FCC Class B |
APPD 1206T (P/N: 10IA1206T00X0)
12.1" XGA industrial 4:3 TFT LED backlight flush touch monitor with VGA, DVI-D and DisplayPort, 12~24VDC input, RS-232 and USB touch screen interfaces
Options
12V, 60W AC/DC power adapter w/o power cord (P/N: 7400060048X00)
1.8m DVI-D male to DVI-D male cable (P/N: 603DVI0007X00)
