APPD1501T

15英寸4:3液晶显示器,嵌入式面板设计,具有IP65防护能力

符合IP65标准的塑料前挡板,由5线制触摸屏组成的平齐面板

三重显示输入接口:模拟VGA/DVI-D/DisplayPort

与APPC系列有相同的外观

双触摸屏接口:RS232和USB

超薄的深度

OSD多语言功能

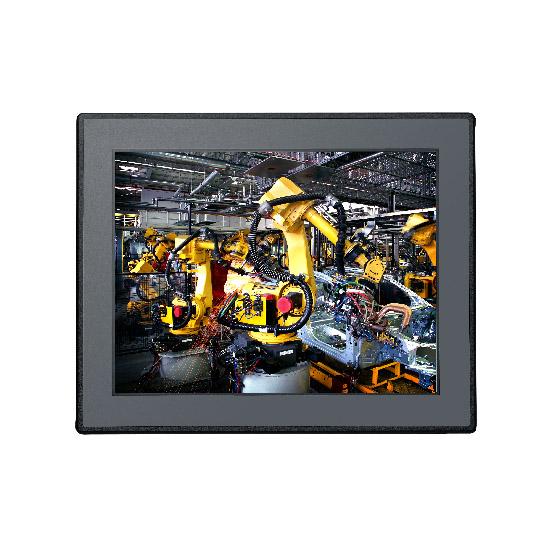

15英寸4:3液晶显示器APPD 1501T是基于5线电阻式触摸屏。它具有400尼特的亮度,可以支持高达1024 x 768的分辨率。APPD 1501T非常适用于系统和显示器保持分离的空间关键环境。


此外,APPD 1501T采用嵌入式面板设计,具有IP65前面板。APPD 1501T提供常用的视频接口。VGA、DVI和DisplayPort,支持数字和模拟信号;触摸屏可以用RS-232或USB端口连接。此外,APPD 1501T支持12~24VDC电源输入,提供面板安装和VESA安装,允许用户选择符合自己情况的安装方式。


APPD 1501T是 NISE无风扇电脑、NViS安全监控系列和APPC面板电脑需要第二台显示器时的最佳解决方案。


面板LCD size: 15", 4:3

Resolution: XGA 1024 x 768

Luminance: 400cd/m2

Contrast ratio: 2500

LCD color: 16.7M

Viewing angle: 88 (U), 88 (D), 88 (L), 88 (R)

Backlight: LED

触摸

5-Wire resistive (flush panel type)

Light transmission: 81%

Interface: USB and RS232

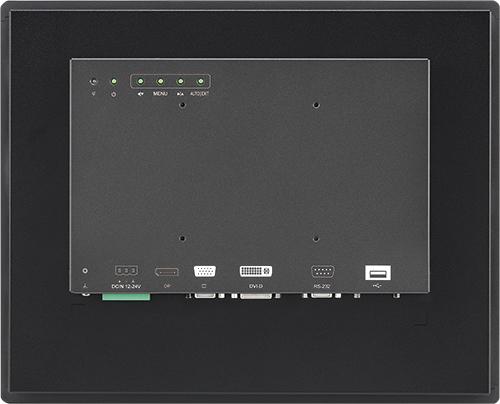

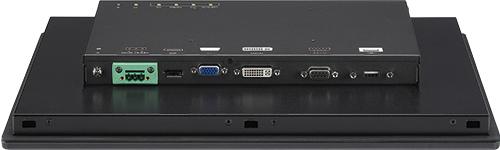

接口Touch screen interface port: RS-232 (1 x DB9)/USB type A

Video port: VGA (1 x DB15)/DVI-D (1 x DVI-I connector)/DisplayPort

DC power input connector: 3-pin Phoenix terminal Blocks

OSD 功能OSD keypadMultilanguage OSD
基本信息Power adapter: optional AC to DC power adapter (+12V, 60W)

Mounting: panel/wall/stand/VESA 100mm x 100mm

Color: pantone black and black silver chassis box

IP protection: IP65 front

Power input: 12V~24VDC

Vibration:

-IEC 68 2-64

-2Grms @ sine, 5~500Hz, 1hr/axis (Operating)

-2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

Shock:

-IEC 68 2-27

-20G@wall mount, half sine, 11ms

-Operating temperature: -5°C to 50°C

-Storage temperature: -20°C to 75°C

Operating humidity: 10%~90% relative humidity, non-condensing

Dimension: 384.37 x 309.95 x 51mm

Weight: 3.9Kg

认证

CE approval

FCC Class B


APPD 1501T (P/N: 10IA1501T00X0)

15" XGA industrial 4:3 LED backlight flush touch monitor with VGA, DVI-D and DisplayPort, 12~24VDC input, RS232 and USB touch screen interfaces


Options

12V, 60W AC/DC power adapter w/o power cord (P/N: 7400060048X00)

1.8m DVI-D male to DVI-D male cable (P/N: 603DVI0007X00)
