CMC 300-F23

Cabinet Mount Fanless PC with Intel® Core™ i5-9500TE 2.2GHz and support 8th & 9th Gen Intel® Core™ i7/i5/i3 Processors

Fanless system design

Intel® Core™ i5-9500TE 2.2GHz and support 8th & 9th Gen Intel® Core™ i7/i5/i3 Processors

2 x Gigabit Ethernet

2 x USB 2.0, 2 x USB 3.0, 1 x COM RS232/422/485

IP65 protection on the outside heatsink

1 x DVI-D display output

2 x DDR4 up to 64GB

1 x mini-PCIe for storage device

2 x PCIe x4 expansion slots

2 x Easy-access 2.5” SSD trays

Support power input 24 VDC

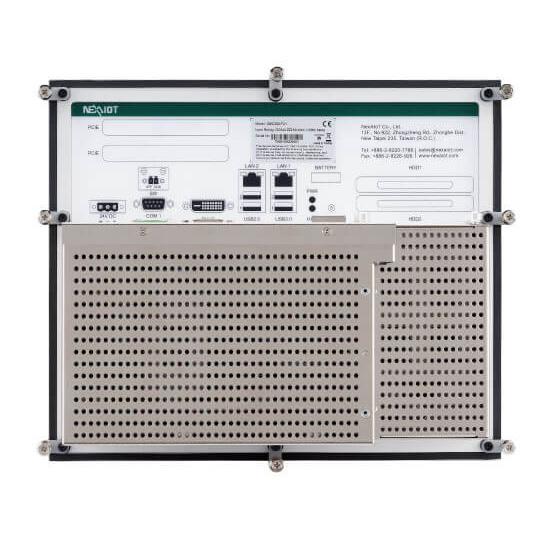

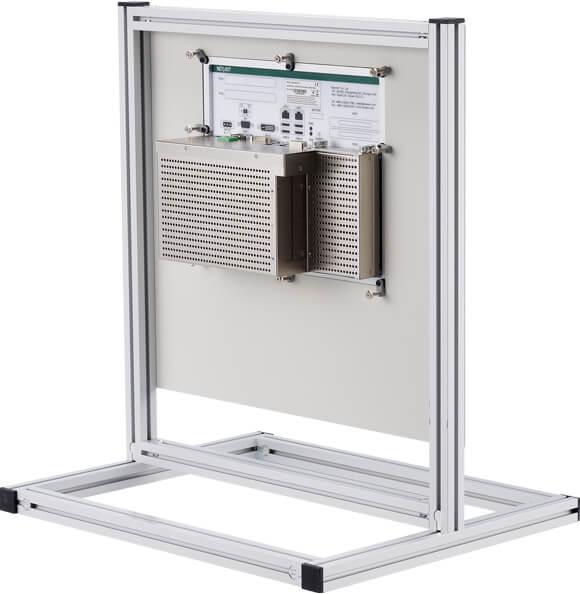

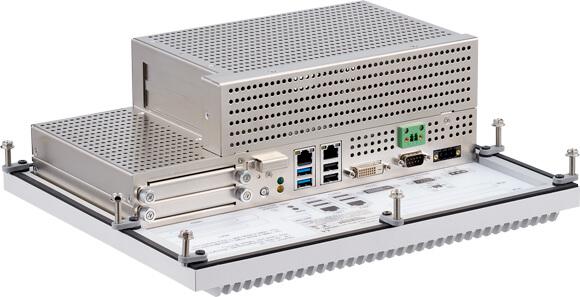

The CMC 300-F23 industrial fanless PC series has been designed with the purpose of being installed in the plate of the control cabinet or in the rear plate of a control cabinet. This fanless PC cut-in to a suitable cut-out in the control cabinet and its heatsink is at outside the cabinet with IP65 protection. The CMC 300-F23 is with Intel® Core™ i5-9500TE 2.2GHz and support 8th & 9th Gen Intel® Core™ i7/i5/i3 Processors. Besides,it is also with two PCIe x4 expansion and two external 2.5” HDD trays. This product meets easy maintenance condition in the industrial such as wind power, charging station.


Default:Intel® Core™ i5-9500TE 2.2GHz

Support Intel® Xeon® E-2278GEL

Support 8th & 9th Gen Intel® Core™ i7/i5/i3 LGA socket type:

- Intel® Core™ Core i3-8100T, i5-8500T, i7-8700T

- Intel® Core™ Core i3-9100TE, i5-9500TE, i7-9700TE

Support up to TDP 35W CPU

PCHIntel® C246 PCH
Main Memory2x DDR4 2400/2666 SO-DIMM sockets, support up to 64GB with non-ECC and un-buffered
I/O Interface Status LEDsPowerSATA (SSD)
I/O Interface

DC power input connector: 3-pin Phoenix contact terminal blocksCOM: 1 x RS232/422/485Display: 1 x DVI-D portEthernet: 2 x RJ45

- LAN: 1 x Intel® I219-LM PHY LAN and 1 x Intel® I210-IT Gigabit LAN

- Ethernet interface: 10/100/1000 Mbps

- Support wake up on LAN2 x USB 2.0 ports2 x USB 3.0 ports2-Pin remote power on/off1 x Easy-access RTC battery socket

Storage Device2 x Easy-access 2.5” SSD trays1 x mini-PCIe slot for storage
ExpansionTwo PCIe x4 expansion slots from PCIe x8 Riser card
Power Requirements

DC power input:

- Input voltage: 18VDC -5% to 24VDC +10%, 7.5A

- Reverse polarity protection


Operating temperature:

- 0°C to 55°C with natural convection

- 0°C to 60°C with mild forced airflowOperating humidity support 10%~90% relative humidity, noncondensingVibration protection w/ HDD condition:

- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64

- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-64


330mm x 275mm x 116.2m

mWeight: 6 KG

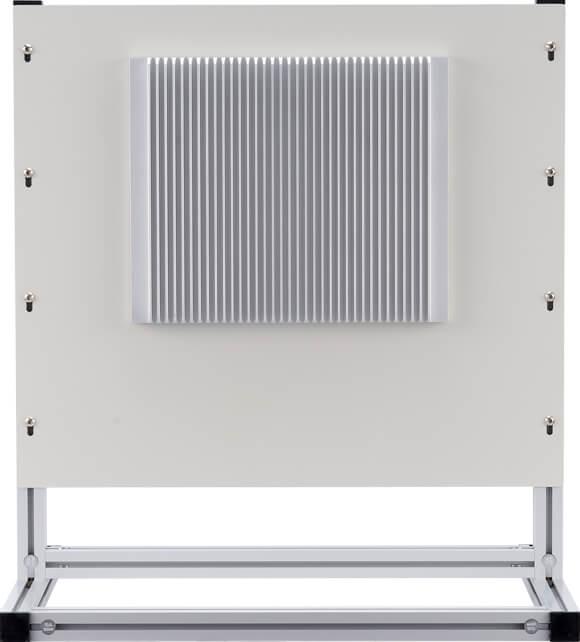

ConstructionAluminum extrusion heat sink and iron nickel plating housingBack cover with reserved RAID card heatsink holeIP65 protection for the outside heatsink

CE (EN61000-6-2/EN61000-6-4)

FCC Class A

OS SupportWindows 10 64-bit

CMC 300-F23 (P/N: 10CM0030002X0)

Cabinet mount controller fanless PC with Intel® Core™ i5-9500TE 2.2GHz, and two PCIe x4 expansion slots



DDR4 DRAM 16GB (P/N: 72BGM16G07H00)

DDR4 DRAM 32GB (P/N: 72BGM32G02H00)
