CMC 300-F22
无风扇系统设计
英特尔®酷睿™i7-9700TE 1.8GHz，支持第八和第九代英特尔®酷睿™i7/i5/i3处理器
2个千兆位以太网
2 x USB 2.0, 2 x USB 3.0, 1 x COM RS232/422/485

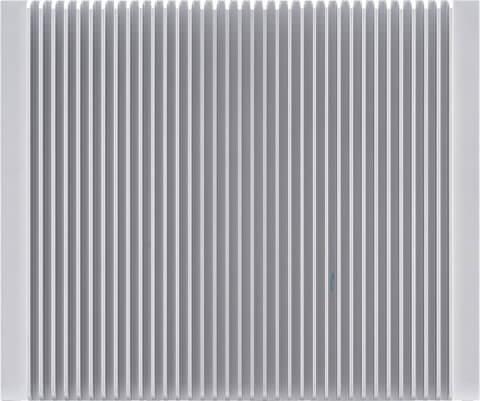

外部散热器具有IP65保护
1 x DVI-D显示输出
2个DDR4，最高可达64GB
1 x mini-PCIe用于存储设备
2个PCIe x4扩展槽
2个2.5英寸SSD托盘
支持24VDC电源输入
- 产品介绍
- 技术参数
- 订购信息
- 相关下载

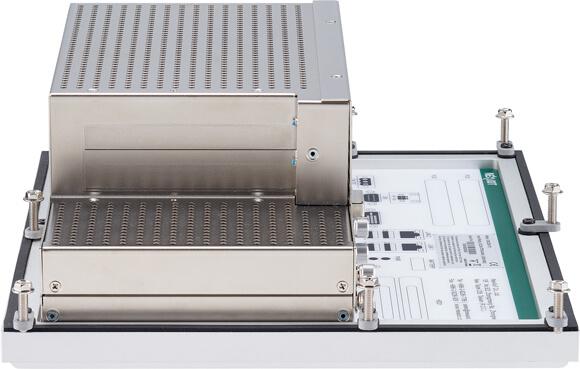

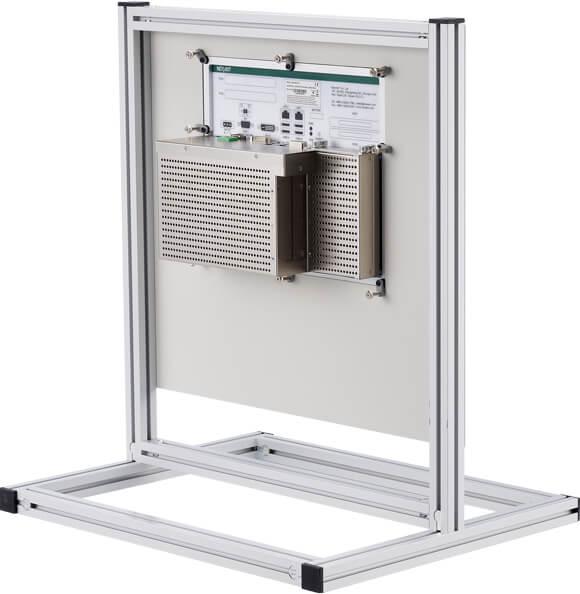

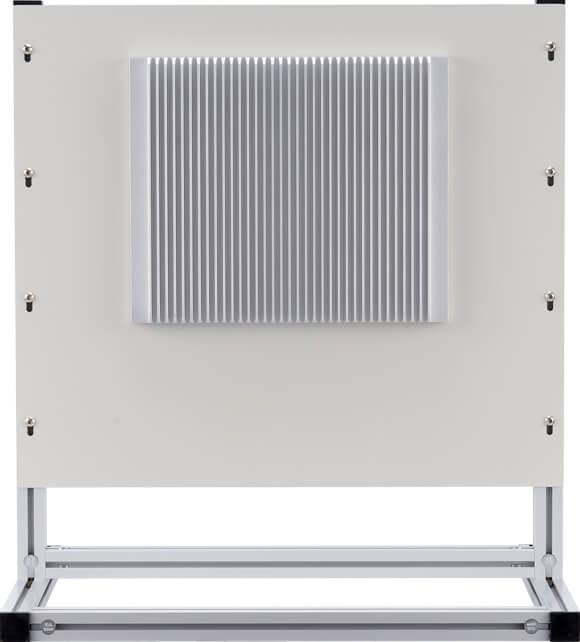

CMC 300-F22工业无风扇PC系列的设计目的是安装在控制柜的面板上或控制柜的后面板上。这款无风扇PC嵌入到控制柜的一个合适的切口，其散热器在控制柜外，具有IP65保护。CMC 300-F22采用Intel® Core™ i7-9700TE 1.8GHz，并支持第八代和第九代Intel® Core™ i7/i5/i3处理器。此外，它还具有两个PCIe x4扩展和两个外部2.5英寸硬盘托盘。该产品符合风力发电、充电站等工业领域的易维护条件。
| CPU | Intel® Core™ i7-9700TE 1.8GHz Support Intel® Xeon® E-2278GEL Support 8th & 9th Gen Intel® Core™ i7/i5/i3 LGA socket type: - Intel® Core™ Core i3-8100T, i5-8500T, i7-8700T - Intel® Core™ Core i3-9100TE, i5-9500TE, i7-9700TE Support up to TDP 35W CPU |
| PCH | Intel® C246 PCH |
| 内存 | 2x DDR4 2400/2666 SO-DIMM sockets, support up to 64GB with non-ECC and un-buffered |
| I/O接口状态LED | PowerSATA (SSD) |

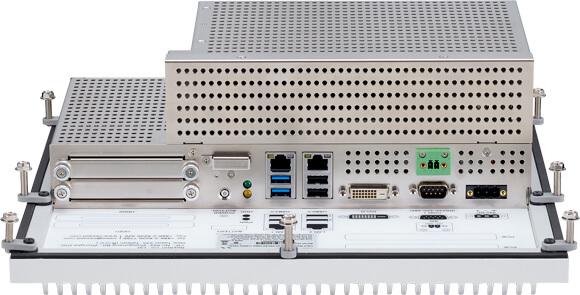

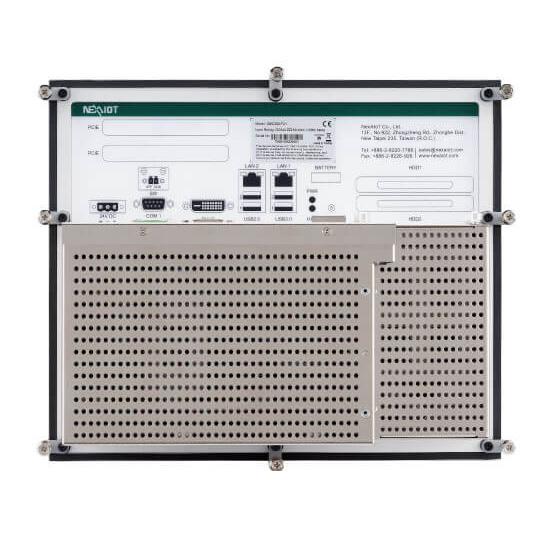

| 接口 | DC power input connector: 3-pin Phoenix contact terminal blocksCOM: 1 x RS232/422/485Display: 1 x DVI-D portEthernet: 2 x RJ45 - LAN: 1 x Intel® I219-LM PHY LAN and 1 x Intel® I210-IT Gigabit LAN - Ethernet interface: 10/100/1000 Mbps - Support wake up on LAN2 x USB 2.0 ports2 x USB 3.0 ports2-Pin remote power on/off1 x Easy-access RTC battery socket |
| 存储 | 2 x Easy-access 2.5” SSD trays1 x mini-PCIe slot for storage |
| 扩展 | Two PCIe x4 expansion slots from PCIe x8 Riser card |
| 电源 | DC power input: - Input voltage: 18VDC -5% to 24VDC +10%, 7.5A - Reverse polarity protection |
| 环境 | Operating temperature: - 0°C to 55°C with natural convection - 0°C to 60°C with mild forced airflowOperating humidity support 10%~90% relative humidity, noncondensingVibration protection w/ HDD condition: - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-64 |
| 基本信息 | 330mm x 275mm x 116.2mm Weight: 6 KG |
| 结构 | Aluminum extrusion heat sink and iron nickel plating housingBack cover with reserved RAID card heatsink holeIP65 protection for the outside heatsink |
| 认证 | CE (EN61000-6-2/EN61000-6-4) FCC Class A |
操作系统 | Windows 10 64-bit |
CMC 300-F22 (P/N: 10CM0030001X0)
Cabinet mount controller fanless PC with Intel® Core™ i7-9700TE 1.8GHz, and two PCIe x4 expansion slots
Options
DDR4 DRAM 16GB (P/N: 72BGM16G07H00)
DDR4 DRAM 32GB (P/N: 72BGM32G02H00)
