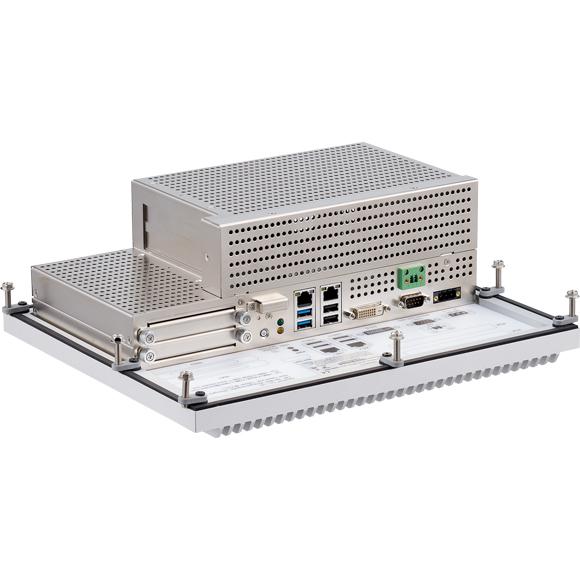

CMC 300-F2x
无风扇系统设计
Intel® Xeon® E-2278GEL and 8th & 9th Gen Intel® Core™ i7/i5/i3 LGA 插槽类型处理器
2 x 千兆以太网
2 x USB 2.0, 2 x USB 3.0, 1 x COM RS232/422/485
外部散热器的 IP65 保护
1 x DVI-D 显示输出
2 x DDR4 高达 64GB
1 x mini-PCIe 用于存储设备
2 x Easy-access 2.5”SSD托盘
支持电源输入 24V DC
- 产品介绍
- 技术参数
- 订购信息
- 相关下载

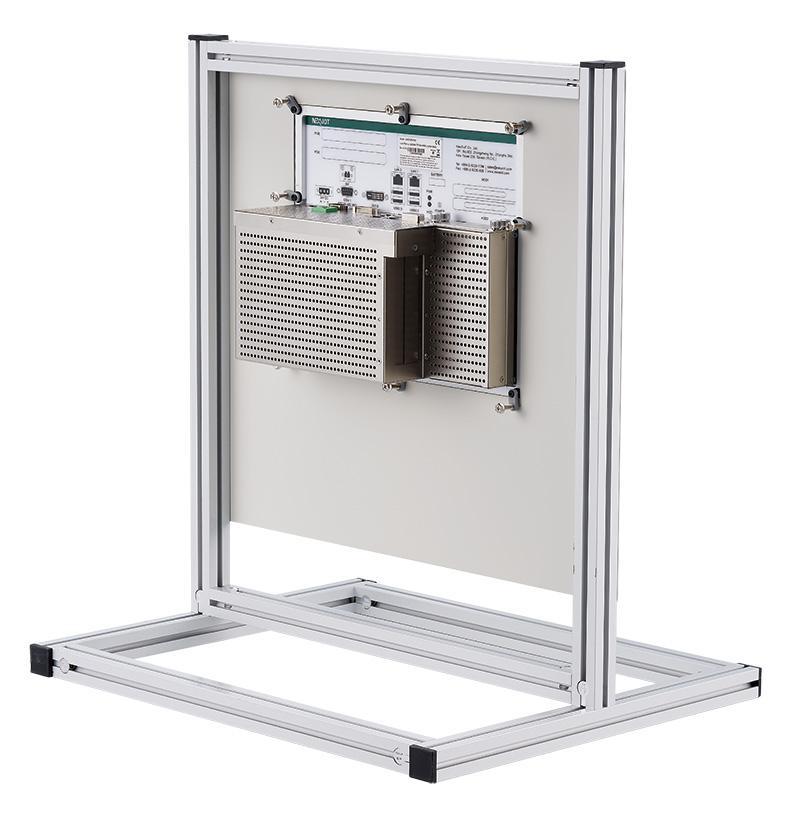

CMC 300-F2x 工业无风扇 PC 系列的设计目的是安装在控制柜的面板或控制柜的后面板中。这款无风扇PC接入控制柜中的合适开口，其散热器位于柜外，防护等级为 IP65。 CMC 300-F2x 是具有两个 PCIe x4 扩展和两个外部 2.5 英寸硬盘托盘的高性能英特尔® Xeon® CPU。 本产品满足风电、充电站等行业易维护条件。
| CPU | Support Intel® Xeon® E-2278GEL Support 8th & 9th Gen Intel® Core™ i7/i5/i3 LGA socket type: - Intel® Core™ Core i3-8100T, i5-8500T, i7-8700T - Intel® Core™ Core i3-9100TE, i5-9500TE, i7-9700TE Support up to TDP 35W CPU |
| PCH | Intel® C246 PCH |
| 内存 | 2x DDR4 2400/2666 SO-DIMM sockets, support up to 64GB with non-ECC and un-buffered |
| I/O 接口状态LED | Power SATA (SSD） |

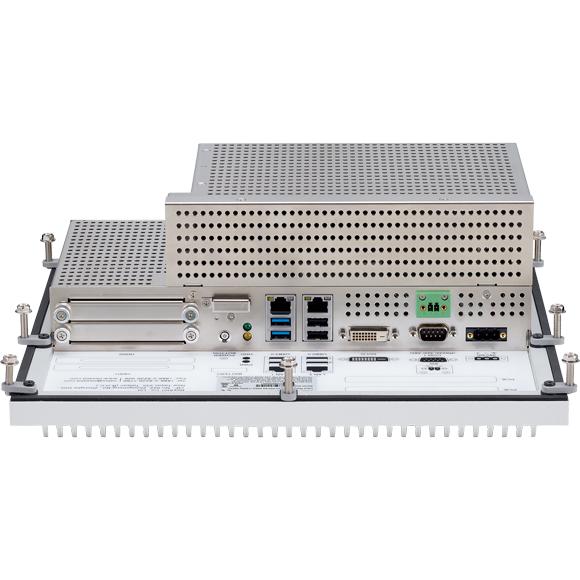

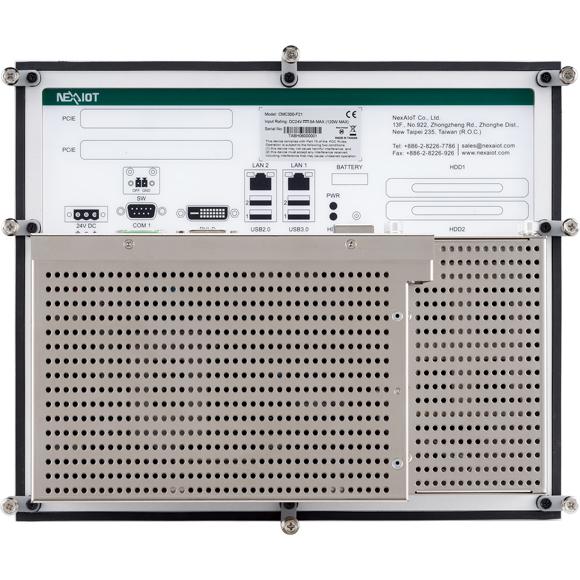

| I/O 界面 | DC power input connector: 3-pin Phoenix contact terminal blocks COM: 1 x RS232/422/485 Display: 1 x DVI-D port Ethernet: 2 x RJ45 - LAN: 1 x Intel® I219-LM PHY LAN and 1 x Intel® I210-IT Gigabit LAN - Ethernet interface: 10/100/1000 Mbps - Support wake up on LAN 2 x USB 2.0 ports 2 x USB 3.0 ports 2-Pin remote power on/off 1 x Easy-access RTC battery socket |
| 存储 | 2 x Easy-access 2.5” SSD trays 1 x mini-PCIe slot for storage |
| 扩展 | Two PCIe x4 expansion slots from PCIe x8 Riser card |
| 电源 | DC power input: - Input voltage: 18VDC -5% to 24VDC +10%, 7.5A - Reverse polarity protection |
| 环境 | Operating temperature: - 0°C to 55°C with natural convection - 0°C to 60°C with mild forced airflow Operating humidity support 10%~90% relative humidity, noncondensing Vibration protection w/ HDD condition: - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6 |
| 基本信息 | Dimension: 330mm x 275mm x 116.2mm Weight: 6 KG |

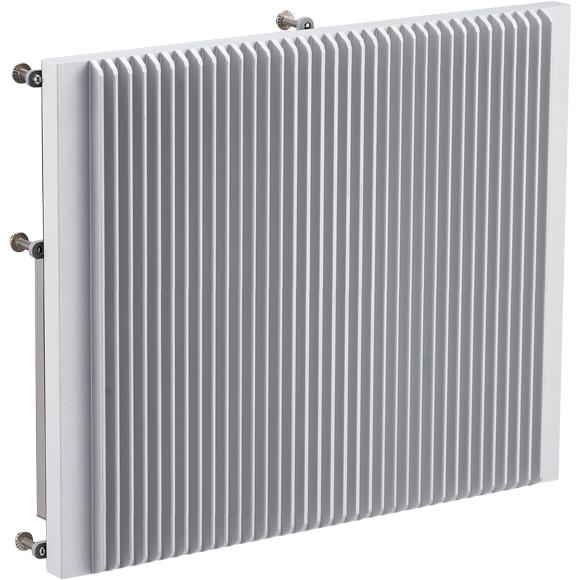

| 结构 | Aluminum extrusion heat sink and iron nickel plating housing Back cover with reserved RAID card heatsink hole IP65 protection for the outside heatsink |
| 认证 | CE (EN61000-6-2/EN61000-6-4) FCC Class A |
| 系统 | Windows 10 64-bit |
CMC 300-F22 (P/N: 10CM0030001X0)
Cabinet mount controller fanless PC with Intel® Core™ i7-9700TE 1.8GHz, and two PCIe x4 expansion slots
CMC 300-F23 (P/N: 10CM0030002X0 )
Cabinet mount controller fanless PC with Intel® Core™ i5-9500TE 2.2GHz, and two PCIe x4 expansion slots
Options
DDR4 DRAM 16GB (P/N: 72BGM16G07H00)
DDR4 DRAM 32GB (P/N: 72BGM32G02H00)
