NEX 614
支持用于第六代英特尔®酷睿™i7/i5/i3和英特尔®赛扬®处理器（代号为Skylake）或下一代英特尔®酷睿™/赛扬®处理器的LGA1151插座
英特尔® Q170/H110芯片组
2个260针的SO-DIMM DDR4，最高可达32GB
三屏显示。HDMI/DP/VGA/LVDS
2 x GbE，采用英特尔® I219LM和i211-AT
1个全尺寸mini-PCIe
4 x SATA 3.0
4个COM，7个USB，4进4出GPIO，高清音频
1 x PCIe x16
DC +12V~24V 输入 ±5%
- 产品介绍
- 技术参数
- 订购信息
- 相关下载

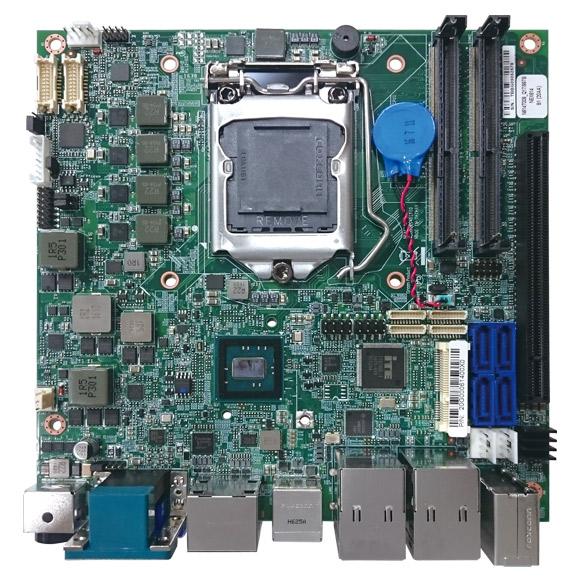

NEX 614是Mini-ITX板，采用第六代英特尔®酷睿™i7/i5/i3处理器和英特尔®赛扬®处理器（代号为Skylake），以及集成英特尔®Skylake图形控制器的下一代英特尔®酷睿™/赛扬®处理器。
NEX 614支持HDMI（4K/2K）、DP、VGA和LVDS（双通道24位，高达1920 x 1200 @60Hz）的多显示器。采用双DDR4 SO-DIMM通道，最大内存支持32GB。
NEX 614嵌入式英特尔® H110默认提供三个SATA，四个串行端口，四个USB 3.0端口，四个USB 2.0端口，两个千兆以太网LAN端口，一个PCIe x16插槽和一个全尺寸MiniPCIe与3G/Wi-Fi/SATA接口。电源输入涵盖了从12V到24V的直流电。通过可选的英特尔® Q170芯片组，NEX 614消耗了第四个SATA功能，用于大容量存储。
NEX 614具有多功能显示、丰富的I/O支持，适用于多媒体以及工业嵌入式应用的关键任务，如Kiosk、数字标牌、游戏、自动化应用等。
| CPU | Socket LGA1151, Intel® 6th and next generation Core™ i7/i5/i3 processor and Intel® Celeron® processors,14nm process |
| 内存 | Dual DDR4/SO-DIMMs, up to 32GB |
| 芯片 | Intel® H110 PCH Intel® Q170 PCH as optional |
| BIOS | AMI system BIOS Plug and play support |
| 板载局域网 | 2 x RJ45 connectors with Intel® I219LM and i211-AT GbE controller Support PXE boot from LAN, wake on LAN function |
| 显示 | 1 x HDMI 1.4 connector (resolution up to 4K/2K@30Hz) 1 x DP 1.2 connector (resolution up to 4096 x 2304) 1 x VGA (resolution up to 1920 x 1200) 1 x LVDS (support dual port 24-bit) |
| 扩展 | 1 x mini-PCI express slot support mSATA, Wi-Fi module and 3G module built with card holder |
| 接口 | COM1/3/4: RS232, 9-pin wafer with cable JST connector COM2 : RS232/422/485, 1 x DB9 male connector on edge I/O USB 2.0/3.0: 7 ports - USB 3.0 x 4 ports edge connector - USB 2.0 x 3 ports by 2.54mm pin connector 4-in/4-out GPIO 2 x 7-pin header with PWR button/reset button/PWR LED/HDD LED 1 x 4-pin fan connector support PWM fan 1 x 3-pin system fan |
| 存储 | 3 x 7-pin SATA 6Gb/s connector; one supports SATA-DOM 4th SATA connector reserved for Q170 as optional to support RAID 0/1/5 2 x 4-pin connector for SATA power |
| 音频 | Realtek ALC886 HD codec |
| 电源 | AT/ATX mode (by jumper setting default-AT) 4-pin power connector (right angle) for DC power input +12V~24V DC input (with ±5%) |
| 可选功能 | TPM module (EBK-TPM) |
| 尺寸 | 170mm (L) x 170mm (W) (6.7”x 6.7”) |
| 环境 | Board level operating temperatures: 0˚C to 60˚C Relative humidity: - 10% to 90% (operating, non-condensing) - 5% to 95% (non-operating, non-condensing) |
| 认证 | Meet CE FCC Class A |
NEX 614 (P/N: TBD)
Mini-ITX, Intel® 6th gen. Skylake Core™ processor family, with DP/HDMI/VGA/LVDS interface/2 x Gigabit LAN/PCIe x16/mPCIe/8 x USB/4 x COMs/TPM (option)/4 x SATA/12V~24V DC input
