NEX 614A
Intel® Skylake-U（第六代Core™ i7/i5/i3 ）处理器，15W~25W TDPs
BGA 1356
支持两个DDR4 SO-DIMM插座
支持DP1.2/HDMI1.4/LVDS的多个显示器
2 x SATAIII, 2 x GbE LAN, 4 x COM, 4 x USB 3.0, 2 x USB 2.0, 8bit DIO, HD音频, 1 x PCie 2.0 x1, 1 x M.2, 1 x mini-PCIe
DC输入+12V
可选的: Wi-Fi模块、M.2存储
- 产品介绍
- 技术参数
- 订购信息
- 相关下载

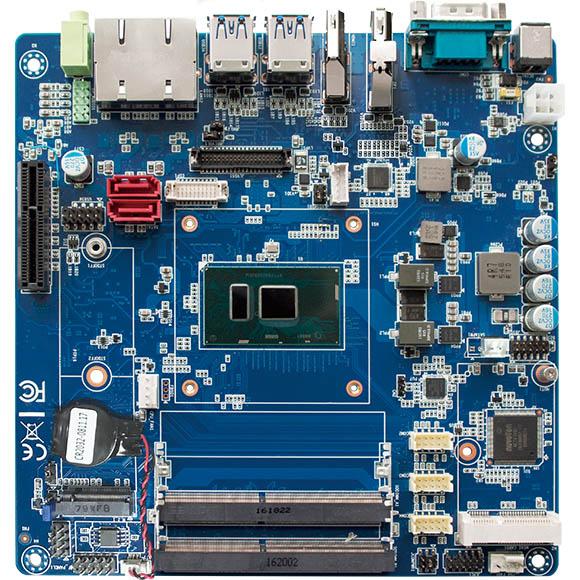

NEX614A是迷你ITX电脑，搭载Intel® Skylake-U（支持Intel® Core™ i7-6600U/ i5-6300U/ i3-6100U/ Celeron® 3955U）处理器，支持15~25W CPU。
NEX614A的工作温度范围为0℃~60℃。这主要是针对户外或半户外环境的嵌入式应用。如Kiosk、小型智能设备、安装在恶劣环境中的户外系统、家庭自动化和客户端等。
NEX614A最大支持32GB DDR4 SDRAM的内存。此外，它还提供两个4K/2K@60Hz的DP或HDMI显示输出，为外围设备和高分辨率提供灵活性支持。
| CPU | Intel® Skylake-U (support for Intel® Core™ i7-6600U/ i5-6300U/ i3-6100U/Celeron® 3955U (default) processor TDP: 15W~25W) |
| 显示 | 1 x DP connector (DP1.2 resolution up to 4096 x 2304@60Hz) 1 x HDMI connector (HDMI1.4 resolution up to 4096 x 2160@60Hz) 1 x LVDS connector (resolution up to 1920 x 1080@60Hz) LVDS (colay eDP, default LVDS) |
| 系统 | 2 x DDR4 2133 SO-DIMM sockets support up to 32GB, non-ECC 2 x SATAIII 6Gb/s connector 1 x SATA power connector 2 x Realtek GbE LAN contorller 2 x dual deck USB 3.0 1 x USB 2.0 header 4 x Serial ports: - 1 x RS232/485/422 by COM1(DB9) - 3 x RS232 by COM2~4 (+5V/RI/+12V select by COM 2) 1 x 8-Bit DIO header (by BIOS setting) WDT 1~255 steps by software program Support Realtek HD audio: - 1 x HD audio jack (Line-out) - 1 x Front panel connector 1 x DC jack (5.5/2.5mm), 1 x ATX 4-pin power connector |
| 存储 | 2 x SATA III 6.0Gb/s (SATA2 3955U not support) 1 x M.2 Key-M, 2242/2280 (default), only support SATA |
| 扩展 | 1 x mini-PCI express slot (half/full_default) size, support PCIe/USB interface 1 x PCIe x4 slot |
| 电源 | 12V DC input: DC lockable jack or ATX 4-pin power connector Power mode AT/ATX (jumper selection) |
| 接口 | 1 x DC power jack 1 x Serial port 1 x DP connector 1 x HDMI connector 2 x USB 3.0 (double deck) 2 x GbE controller 1 x Line-out |
| 环境 | Operating temperature: 0°C~40°C Storage semperature: -20°C~80°C Relative humidity: operating 10%~90%, non-condensing |
| 尺寸 | Display head: mini-ITX, 6.7” x 6.7” (170mm x 170mm) |
| 操作系统 | Windows 7 32/64-bit, 8.1,10 64-bit & Fedora |
| 认证 | EMC & Safety CE/FCC Class A |
NEX614A-3955U (P/N: 10G00061403X0)
Optional Accessories
12V, 60W power adapter w/o power cord (P/N: 7400060028X00)
COM PORT cable (P/N: 603COM0092X00)
USB cable (P/N: 60233USB71X00)
SATA cable (P/N: 60233ATA48X00)
SATA power cable (P/N: 60233PW168X00)
