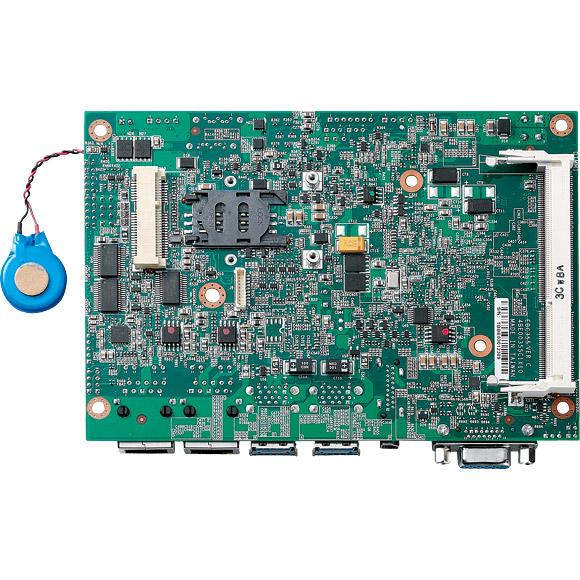

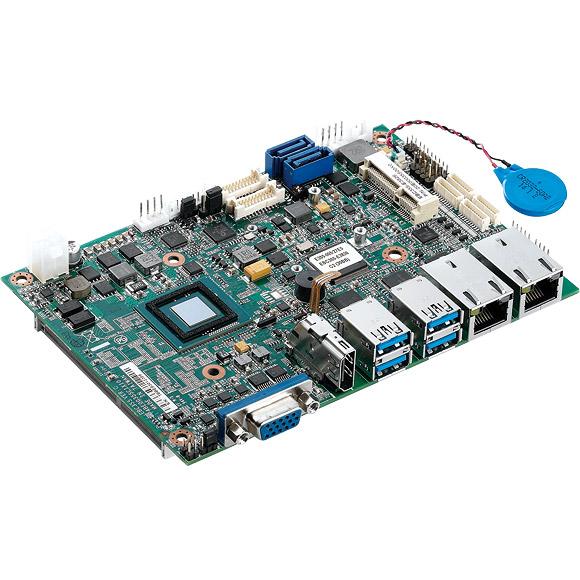

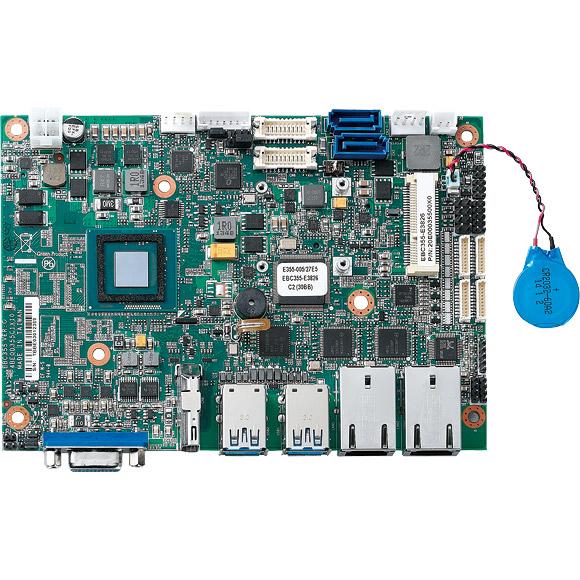

EBC 355

3.5" SBC 板载Intel® Atom™ E3800处理器,HDMI/ VGA/ 1x24/48-bit LVDS 双通道,双Mini-PCIe

板载Intel® Atom™ E3800处理器

1个204-pin SO-DIMM插槽,最高支持8GB DDR3L 1066/1333 MHz SDRAM

显示:HDMI/ VGA/ 2x LVDS (2x DF13 20-pin 18/ 24-bit单通道)

2x Mini-PCIe

2x Intel® i210 PCI Express 千兆以太网

2x SATA2.0

4x USB3.0, 4-输入/ 4-输入 GPIO, 音频输入/输出

串口:3x RS232, 1x RS232/422/485端口

支持AT/ ATX模式和单+12VDC输入


EBC 355是一款3.5英寸主板,基于多核SoC Intel® Atom™ E3800处理器(原代码为"Bay Trail")。该3.5英寸主板专为嵌入式应用而设计,支持宽温操作,低功耗、支持USB 3.0端口和Intel® 第七代显卡,以及多个显示支持。


该3.5英寸主板系列专为嵌入式应用而设计。EBC 355系列最高支持8GB DDR3L SDRAM内存,并提供4个USB 3.0端口和3个显示输出(VGA、HDMI和LVDS),支持多种外设,以及双显示支持。该3.5”主板可支持-20 到60℃宽温操作,EBC 355系列是使用电池供电的便携式设备、多媒体HMI平板、用户严苛环境下的室外系统、家庭自动化和精简型用户端的最佳选择。



CPUSupport Intel® Atom™ processor E3800 product family
内存Single 204-pin SO-DIMM socket supports up to 8 GB DDR3L 1066/1333 MHz SDRAM
平台控制中心Atom™ processor E3800 product family (formerly codenamed "Bay Trail-I")
BIOS

AMI System BIOS

Plug and play support

Advanced Power Management and Advanced Configuration & Power Interface support

显示

Integrated Intel® Gen.7 Graphics Engine

Supports VGA and HDMI interface

Analog VGA interface: 1xDB-15 connector, resolution up to 1920 x 1200 @75Hz

HDMI interface: 1x HDMI connector, resolution up to 1920 x 1200

LVDS interface: 1x dual (24/48-bit) LVDS panel, resolution up to 1920 x 1200 DF13 20-pin LVDS connector for internal connection

音频

Realtek ALC886 CODEC for High Definition:

1x 4 2.0 pitch pin-header for MIC-in

1x 4 2.0 pitch pin-header for Line out

1x 5 2.0 pitch pin-header for speaker out

板载LAN

2x Intel® i210 Gigabit Ethernet

Support PXE boot from LAN, wake on LAN function

扩展2x Mini-PCIe
I/O Interface

Serial port: 4 ports

COM1, 3, 4 support RS232 with 10-pin box header

COM2 support RS232/422/485 with 10-pin box header

USB3.0: 4 ports

4 x ports edge connector

8 GPIO lines via header (GPI 0~3 and GPO0~3) TTL level (0/5V)

On-board power LED and HDD active LED pin header

1 x 4-pin fan connector (for CPU)

1 x keyboard/mouse pin header

Onboard buzzer/SMBus2.0/reset SW/o n & off switch button

Edge I/O Interface

1 x VGA connector

1 x HDMI connector

2 x dual stack USB3.0 connector

2 x RJ45 with LED connector

Watchdog TimerWatchdog time-out can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)
Storage2 x SATA2.0 ports
System Monitor

Monitoring of 4 voltages and 2 temperatures

4 voltage (Vcore, +12V, +3.3V, 5V)

2 temperatures (CPU, system)

1 fan speed detection

On-board RTC

On-chip RTC with battery backup

1 x external Li-ion battery

电源需求

Power requirement: +12V DC Input

One 4-pin power connector

尺寸146mm (L) x 102mm (W) 5.7" x 4.0"
运行环境

Board Level Operating temperatures: -20°C to 60°C

Storage temperatures: -25°C to 85°C

Relative humidity:

10% to 90% (operating, non-condensing)

5% to 95% (non-operating, non-condensing)

认证

Meet CE

FCC Class A


EBC 355-E3826 (P/N: 10E00035500X0)

RoHS Compliant Low power embedded board with Intel® Atom™ processor E3826 and based on Intel® integrated graphics engine w/ HDMI/24/48bit LVDS/4 x USB3.0/4 x COMs/2 x Mini-PCIe/2 x Gigabit LAN/2 x SATA


EBC 355-E3845 (P/N: 10E00035502X0)

RoHS Compliant Low power embedded board with Intel® Atom™ processor E3845 and based on Intel® integrated graphics engine w/ HDMI/24/48bit LVDS/4 x USB3.0/4 x COMs/2 x Mini-PCIe/2 x Gigabit LAN/2 x SATA


EBC 355 Cable Kit (P/N: 10E00035501X0)
