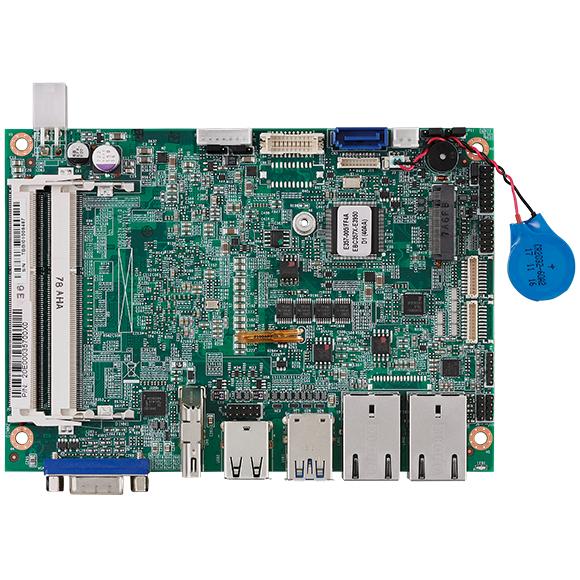

EBC 357X_汉智兴科技

3.5" ECX板载英特尔Atom®处理器E3900产品系列 HDMI/VGA/1 x 18/24位单通道，M. 2

板载Intel Atom®处理器E39xx处理器系列

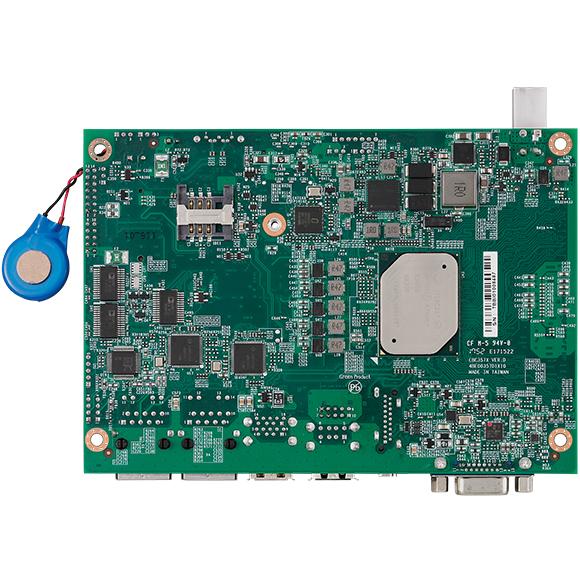

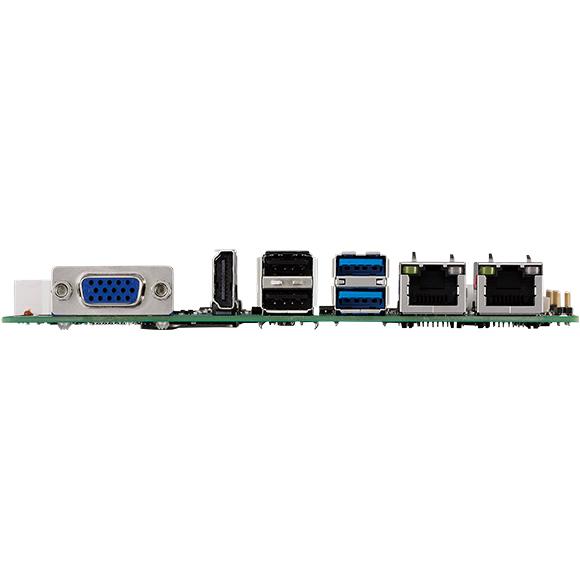

CPU 倒置设计

2 x 204针SO-DIMM DDR3L

三合一显示器。HDMI/VGA/LVDS

1 x M.2 (2242) B键

2 x Intel® i210-IT PCI express Gigabit Ethernet

1 x SATA 2.0

2 x USB 3.0, 4 x USB 2.0, 4-in/4-out GPIO, Mic-in, Speak-out

串行端口：1 x RS232，1 x RS232/422/485端口

支持AT/ATX模式和单一的+12VDC输入

EBC 357X是3.5 "SBC系列下的产品，它基于多核SoC英特尔Atom®处理器（以前代号为 "Apollo Lake"）。EBC 357X系列在宽温度范围内运行，功耗低。这个系列的3.5英寸板子是针对嵌入式应用的。它最大支持16GB DDR3L SDRAM的内存。

此外，它还提供VGA、HDMI和LVDS三种显示输出，以提供支持一系列外设和三联屏的灵活性。

EBC 357X系列是电池供电的便携式设备、多媒体HMI面板、安装在恶劣环境中的户外系统、家庭自动化和客户机的理想选择。

CPU	Intel® Atom™ processor E39xx processor family, 14nm core, Quad/Dual Core, 1.8/2.0GHz, 2 x L2-Cache 1MB 16-way shared per 2 cores, TDP: 6.5W/12W
内存	Dual DDR3L/SO-DIMMs, up to 8GB
BIOS	AMI system BIOS Plug and play support
显示	1 x HDMI connector (resolution up to 3840 x 2160@30Hz) 1 x VGA connector (resolution up to 1920 x 1200) LVDS interface: 1 x single (18/24 bit) LVDS panel, resolution up to 1366 x 768. (Dual channel optional)
存储	1 x M.2 (2242) B key 1 x SATA port
音频	Realtek ALC888s HD codec 1 x 4 2.0 pitch pin header for MIC-in 1 x 4 2.0 pitch pin header for Line-out 1 x 5 2.0 pitch pin-header for speak-out
板载局域网	2 x Intel® I210-IT GbE controller Support PXE boot from LAN, wake on LAN function
扩展	1 x M.2 slot M key support PCIe (default) & SATA interface
电源	AT/ATX mode (by jumper setting default-AT) 4-pin power connector (right angle) for DC power input Single power 12V DC input
I/O	Serial port x 4 - COM1/3/4: RS232 1 x 10-pin 1.0mm JST connector. (COM3/4 optional) - COM2: RS232/422/485, 1 x 10-pin 1.0mm JST connector 4-in/4-out GPIO One 2 x 7 2.0mm pin header with SMBus/power on-off/system reset/power/storage LED One 4-pin fan connector support PWM fan
可选功能	TPM module (EBK-TPM)
尺寸	146mm (L) x 102mm (W) (5.7” x 4.0")
环境	Board level operating temperatures: -40˚C~85˚C
相对湿度	10% to 90% (operating, non-condensing) 5% to 95% (non-operating, non-condensing)
认证	Meet CE FCC Class A

EBC 357X-E3950 (P/N: 10E00035700X0) RoHS Compliant

Low power embedded board with Intel Atom® processor E3950 and extended -40˚C~85˚C, with HDMI/VGA/LVDS,

2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA

EBC 357X-E3930 (P/N: 10E00035701X0) RoHS Compliant

Low power embedded board with Intel Atom® processor E3930 and extended -40˚C~85˚C, with HDMI/VGA/LVDS,

2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA

Optional Accessories

7P+15P SATA cable (P/N: 60233AT136X00)

COM port cable (P/N: 60233SIO62X00)
