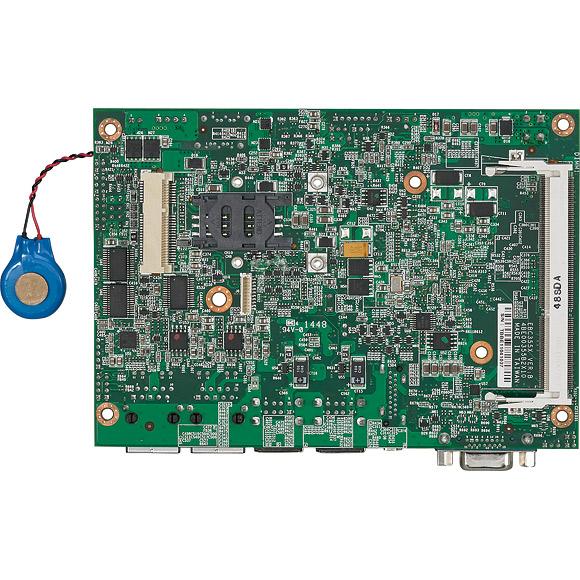

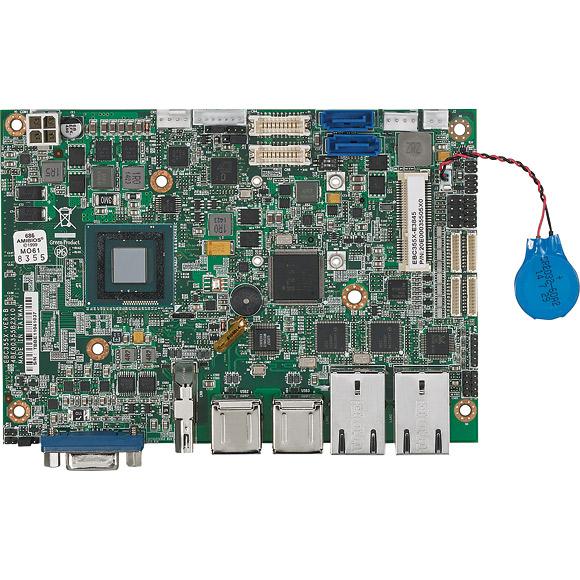

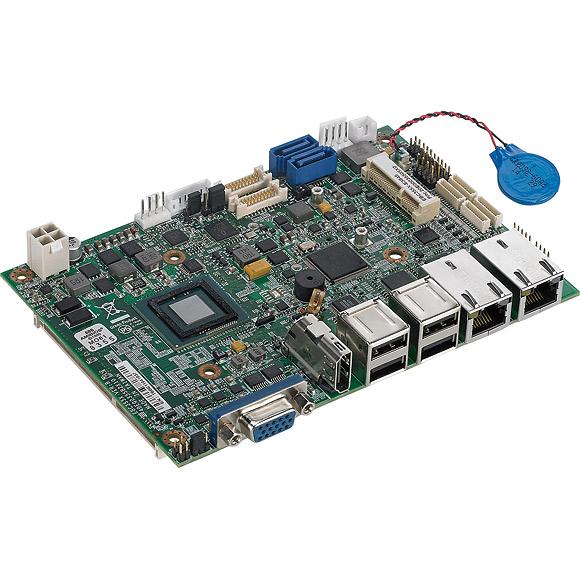

EBC 355X
板载 Intel® Atom™ E3800处理器
1个204-pin SO-DIMM槽，支持达8 GB DDR3L 1066/1333 MHz SDRAM
显示: HDMI/VGA/1 x LVDS (2 x DF13 20-pin 24/48-bit 单通道)
2 x Mini-PCIe
2 x Intel® i210 PCI Express 千兆以太网
2 x SATA 2.0
4 x USB 2.0, 4-in/4-out GPIO, Mic-in , Speak out
串口: 3 x RS232, 1 x RS232/422/485 port
支持 AT/ATX 模式和单+12VDC输入
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
EBC 355X 系列是 3.5" 板， 基于多核SoC Intel® Atom™ E3800处理器(原代码为"Bay Trail")。该3.5英寸主板专为嵌入式应用而设计，支持宽温操作，低功耗、支持USB 3.0端口和Intel® 第七代显卡，以及多个显示支持。
新汉的3.5英寸主板系列专为嵌入式应用而设计。EBC 355X 系列最高支持8GB DDR3L SDRAM内存，并提供4个USB 2.0端口和3个显示输出（VGA、HDMI和LVDS），支持多种外设，以及双显示支持。该3.5”主板可支持-40 到85 ℃宽温操作，EBC 355X 系列是使用电池供电的便携式设备、多媒体HMI平板、用户严苛环境下的室外系统、家庭自动化和精简型用户端的最佳选择。
| CPU | Support Intel® Atom™ processor E3800 product family |
| 内存 | Single 204-pin SO-DIMM socket supports up to 8 GB DDR3L 1066/1333 MHz SDRAM |
| 平台控制总线 | Atom™ processor E3800 product family (formerly codenamed "Bay Trail-I") |
| BIOS | AMI System BIOS Plug and play support Advanced Power Management and Advanced Configuration & Power Interface support |
| 显示 | Integrated Intel® Gen.7 Graphics Engine Supports VGA and HDMI interface Analog VGA interface: 1 xDB-15 connector, resolution up to 1920 x 1200 @75Hz HDMI interface: 1 x HDMI connector, resolution up to 1920 x 1200 LVDS interface: 1 x dual (24/48-bit) LVDS panel, resolution up to 1920 x 1200 DF13 20-pin LVDS connector for internal connection |
| Audio | Realtek ALC886 CODEC for High Definition: 1 x 4 2.0 pitch pin-header for Mic-in 1 x 4 2.0 pitch pin-header for Line-out 1 x 5 2.0 pitch pin-header for speaker out |
| 板载网络 | 2 x Intel® i210 Gigabit Ethernet Support PXE boot from LAN, wake on LAN function |
| 扩展 | 2 x Mini-PCIe |
| I/O 接口 | Serial port: 4 ports COM1, 3, 4 support RS232 with 10-pin box header COM2 support RS232/422/485 with 10-pin box header USB 2.0: 4 ports 4 x ports edge connector 8 GPIO lines via header (GPI 0~3 and GPO0~3) TTL level (0/5V) On-board power LED and HDD active LED pin header 1 x 4-pin fan connector (for CPU) 1 x keyboard/mouse pin header Onboard buzzer/SMBus2.0/reset SW/o n & off switch button |
| 侧边 I/O 接口 | 1 x VGA connector 1 x HDMI connector 2 x dual stack USB 2.0 connector 2 x RJ45 with LED connector |
| 看门狗 | Watchdog time-out can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C) |
| 存储 | 2 x SATA2.0 ports |
| 系统监控 | Monitoring of 4 voltages and 2 temperatures 4 voltage (Vcore, +12V, +3.3V, 5V) 2 temperatures (CPU, system) 1 fan speed detection |
| 板载RTC | On-chip RTC with battery backup 1 x external Li-ion battery |
| 电源需求 | Power requirement: +12V DC Input One 4-pin power connector |
| 体积 | 146mm (L) x 102mm (W) 5.7" x 4.0" |
| 环境 | Board Level Operating temperatures: -40°C to 85°C Storage temperatures: -40°C to 85°C Relative humidity: 10% to 90% (operating, non-condensing) 5% to 95% (non-operating, non-condensing) |
| 通过认证 | Meet CE FCC Class A |
EBC 355X-E3826 (P/N: TBD)
RoHS Compliant Low power embedded board with Intel® Atom™ processor E3826 and extended -40°C to + 85°C w/ HDMI/24/48bit LVDS/4 x USB2.0/4 x COMs/2 x Mini-PCIe/2 x Gigabit LAN/2 x SATA
EBC 355X-E3845 (P/N: TBD)
RoHS Compliant Low power embedded board with Intel® Atom™ processor E3845 and extended -40°C to + 85°C w/ HDMI/24/48bit LVDS/4 x USB2.0/4 x COMs/2 x Mini-PCIe/2 x Gigabit LAN/2 x SATA
