VTC 7230

Intel® Core™ i3-5010U 无风扇车载计算机

Intel® Core™ 双核i3-5010U处理器

支持3个 SIM 卡 + 双 WWAN 模块

Dual accessible & hot swappable SATA 3.0 SSD/HDD (RAID 0/1)

内建 u-blox NEO-M8N 模块,可选航位推算功能

内建 CAN/OBDII 模块 (CAN Bus 2.0B or OBDII SAE J1939)

通过 WWAN 模块的RTC/SMS 网络唤醒

通过 WWAN 模块的语音通讯

符合 MIL-STD-810G

4 x mini-PCIe 槽的弹性扩展功能


VTC 7230采用功能强劲的新一代 Intel® Core™ i3-5010U处理器,其CPU性能使用户能提供应用所需的任何信息技术能力。强大的图形引擎允许用户充分利用VTC 7230的性能,实现3个不同视频输出的平滑,无缝和出色的图形性能(VGA, DP, LVDS)。 VTC 7230 配备 2 个外部访问的 SSD/HDD 托盘; 用户可以轻松下载或上传VTC 7230的 移动存储设备的数据。通过整合各种 I/O 接口和 4x Mini-PCIe 槽扩展, VTC 7230不仅适用视频监控应用,也能满足其他远程信息处理应用的需求,如娱乐,车队管理和调度系统。 支持双 SIM 卡槽, VTC 7230允许三个SIM卡通过软件互为备份以支持更好的连接质量。此外,3个SIM 卡 + 双 WWAN 模块架构可以提供一个更快数据传输速率的带宽。不仅支持数据传输, VTC 7230 还支持双向语音通讯。配备智能电源管理,VTC 7230 还支持ignition, RTC timer 或 SMS/Ring 的远程唤醒。

CPUIntel® Core™ processor dual core i3-5010U, 2.1GHz
Memory2 channel 204-pin DDR3L SO-DMIM socket support 1333/1600MHz up to 16GB, default Industrial grade 2GB
Storage

2 x 2.5" SATA 3.0 SSD/HDD (removable & hot swappable), RAID 0,1 supported (optional lockable storage available)

1 x CFast (externally accessible)

Expansion

1 x Full size mini-PCIe socket (USB 2.0)

1 x Full size mini-PCIe socket (USB 2.0 + PCIe)

1 x Full size mini-PCIe socket (USB 2.0 + PCIe)

1 x Half size mini-PCIe socket (USB 2.0 + PCIe)

Function

1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning

Built-in G-sensor

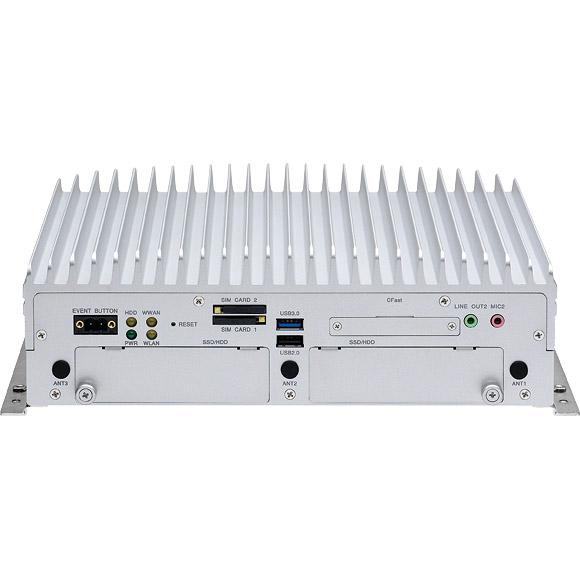

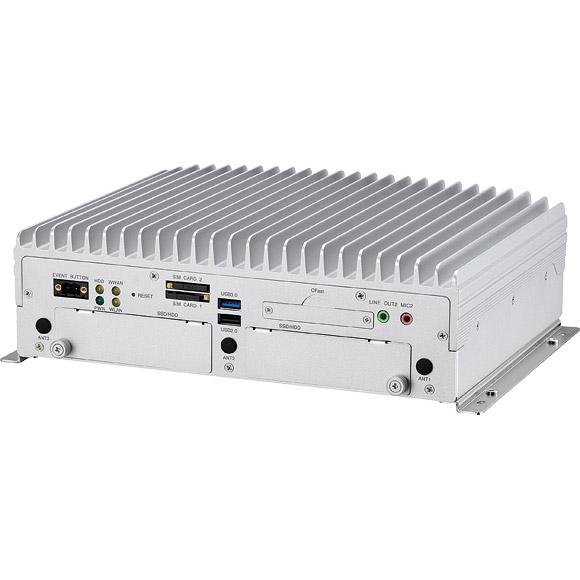

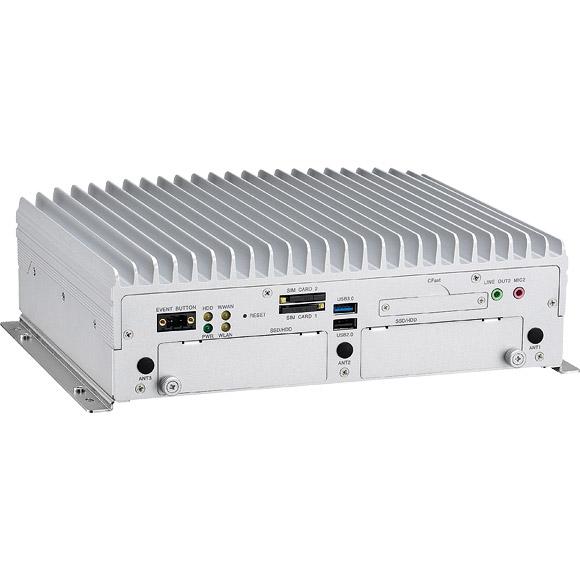

I/O Interface-Front

4 x LED for power, storage, WWAN, WLAN

2 x 2.5" SATA 3.0 SSD/HDD (removable & hot swappable), RAID 0,1 supported (optional lockable storage available)

1 x Dual USB type A connector for USB 3.0 port + USB 2.0 port

2 x Externally accessible SIM card socket (selectable)

1 x Phone jack 3.5mm for 1 x Mic-In

1 x Phone jack 3.5mm for 1 x Line-out

1 x Externally accessible CFast card socket with cover

1 x Event button (trigger type)

1 x Reset button

3 x Antenna hole for WWAN/WLAN/BT

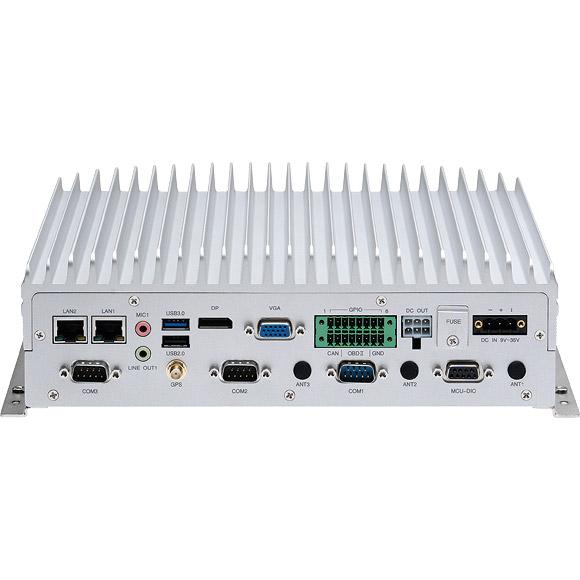

I/O Interface-Rear

1 x 9 ~ 36VDC input with ignition and 35W typical power consumption

1 x Dual USB type A connector for USB 3.0 port + USB 2.0 port

2 x RJ45 10/100/1000 Fast Ethernet with LED

1 x Phone jack 3.5mm for 1 x Mic-in

1 x Phone jack 3.5mm for 1 x Line-out with 1.5W output each

1 x DB-15 VGA. Resolution up to 2560 x 1600 @60Hz

1 x DP port. Resolution up to 2560 x 1600 @60Hz

2 x DB-9 RS-232

1 x DB-9 RS-232/422/485 (RI/12V selectable)

1 x DB-9 for CAN 2.0B (optional CAN Bus 2.0B mini-PCIe card), 2 x MCU-DI and 2 x MCU-DO

1 x 16-pin terminal block

- 1 x CAN Bus 2.0B (on board)

- 1 x optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939)

- 8 x Programmable GPIO

(Digital Input)

Input voltage (internal type): 5VDC TTL (default)

Input voltage (source type): 3 ~ 12VDC

(Digital Output)

Digital output (sink type): 5VDC TTL (default), max current: 20mA

Digital output (source type): 3 ~ 24VDC, max current: 150mA

1 x 12VDC output (2A), SM Bus

4 x antenna hole for WWAN/WLAN/BT/GPS

1 x Fuse (15A)

Power Management

Selectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/off delay time by software

Status of ignition and low voltage can be detected by software

Support S3/S4 suspend mode

Operating System

Windows 10

Windows 8, WES8

Windows 7, WES7

Linux (kernel 4.X)

Dimensions

260mm (W) x 206mm (D) x 79.5mm (H) (10.24" x 8.11" x 3.13")

Weight: 2.5k

Environment

Operating temperatures:

-30°C to 55°C (w/ industrial SSD) with air flow

-20°C to 45°C (w/ commercial HDD) with air flow

Storage temperatures: -35°C to 85°C

Relative humidity: 10% to 90% (non-condensing)

Vibration (random): 1.5g@5 ~ 500 Hz (in operation, HDD), 2g@5 ~ 500 Hz (in operation, SSD)

Vibration (SSD/HDD):

Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure

Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test

Shock (SSD/HDD):

Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g

Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

Standards/Certifications

CE approval

FCC Class A

E13 Mark


VTC 7230 (P/N: 10V00723000X0)

Intel® Core™ processor i3-5010U, 2.1GHz dual core CPU, Industrial Grade 2GB DDR3L SO-DIMM, VGA/DP output, 2 LAN, 2 x RS-232, 1 x RS-232/422/485, 8 x GPIO, 2 x USB3.0, 2 x USB2.0, 12VDC output
