VTC 1010

Intel® Atom™ E3827 Fanless In-Vehicle Computer

Intel® Atom™ processor E3827, 1.75GHz

Dual SIM cards + dual WWAN modules support

Wide operating temperature -30°C ~ 70°C

Built-in CAN 2.0B. Optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939)

4 x mini-PCIe socket rich expansion capability

Wake on RTC/SMS via WWAN module

Voice communication via WWAN module

Compliant with MIL-STD-810G

Built-in U-blox M8N GPS, optional dead reckoning support


VTC 1010 features next generation Intel® Atom™ processor E3827, 1.75GHz, with powerful graphic and multimedia enhancement. VTC 1010 is packed rugged, fanless, and 1 DIN compact enclosure. It is specifically designed to comply with stringent MIL-STD-810G military standard. VTC 1010 comes with build-in CAN BUS 2.0B interface and optional OBDII (SAE J1939) port to monitor the vehicle operating status real-time and troubleshoot a non-working vehicle. With dual SIM cards design, it allows the choice of the best service carrier network and minimizes roaming cost. VTC 1010 can be configured to work with two independent WWAN connections and can effectively increase the bandwidth for faster massive data transfer over the air. VTC 1010 also supports two-way voice communication. Equipped with intelligent vehicle power management, VTC 1010 can be waked up by ignition, RTC timer, or remote dial-up for flexible operation or maintenance. VTC 1010 can satisfy different demands for versatile telematics applications, such as infotainment, fleet management, dispatching system and mobile video surveillance.

CPUIntel® Atom™ processor E3827, Dual Core 1.75GHz
Memory1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB. Default 2GB
Storage

1 x 2.5" SATA 2.0

1 x External accessible SD card socket

Expansion

1 x Full size mini-PCIe socket (USB 2.0)

1 x Full size mini-PCIe socket (USB 2.0+ PCIe)

1 x Full size mini-PCIe socket (mSATA or PCIe)

1 x Half size mini-PCIe socket (USB 2.0 + PCIe)

Function

1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning

Built-in G-sensor

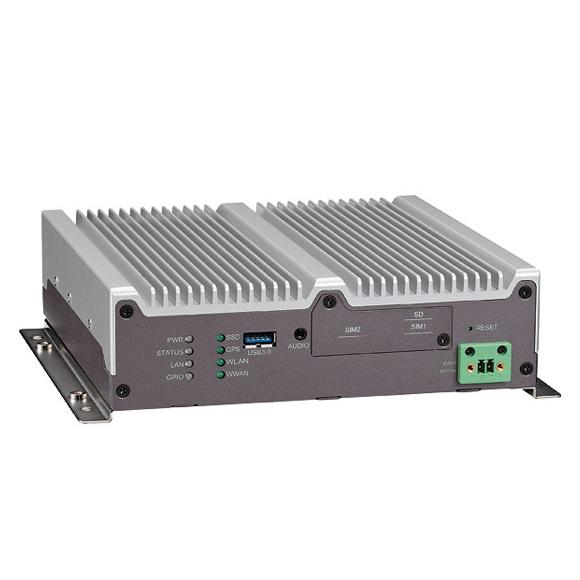

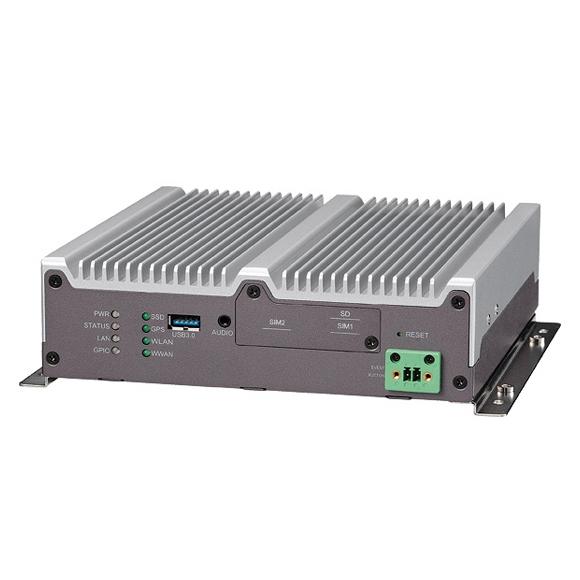

I/O Interface-Front8 x LED for power, system status, storage, WWAN, WLAN, GPS, LAN, GPIO

2 x External accessible SIM card socket (selectable) with cover

1 x Audio jack 3.5mm for WWAN voice communication, including 1 x Mic-in and 1 x Line-out

1 x External accessible SD card socket with cover

1 x Event button (trigger type)

1 x Reset button

1 x Type A USB 3.0 compliant host, supporting system boot up

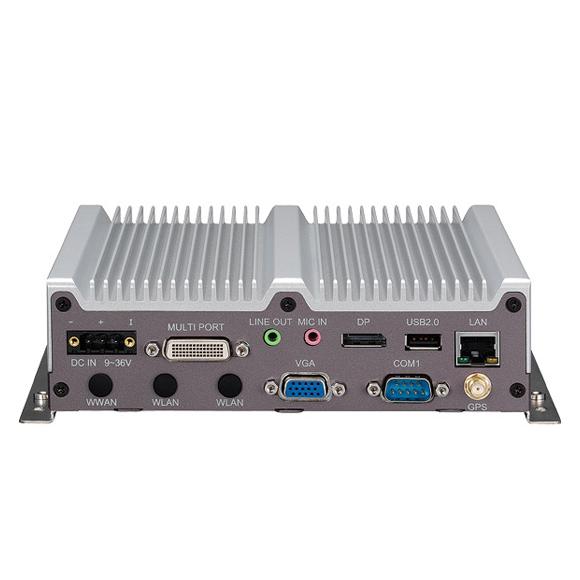

I/O Interface-Rear1 x 9 ~ 36VDC input with ignition and 11W typical power consumption

1 x Type A USB 2.0 compliant host, supporting system boot up

1 x RJ45 10/100/1000 Fast Ethernet with LED

1 x Phone jack 3.5mm for 1 x Mic-in (for WWAN voice communication)

1 x Phone jack 3.5mm for 1 x Line-out (for PC audio)

1 x DB-15 VGA. Resolution up to 2560 x 1600 @60Hz

1 x DP port. Resolution up to 2560 x 1600 @60Hz

1 x DB-9 for RS-232

4 x Antenna hole for GPS/WWAN/WLAN/BT

1 x LHF 60-pin connector

1 x 6-pin power connector, 12VDC output (max: 1A)

1 x Type A female USB 2.0 compliant host, supporting system boot up

1 x DB-9 RS-232

1 x DB-9 RS-422/485

1 x DB-9 female 3 x DI and 3 x DO. On board CAN 2.0B signals

(Programmable Digital Input)

Input voltage (Internal Type): 5VDC TTL (default)

Input voltage (Source Type): 3 ~ 12VDC

(Programmable Digital Output)

Digital output (Sink Type): 5VDC TTL (default), max current: 20mA

Digital output (Source Type): 3 ~ 24VDC, max current: 250mA

1 x optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939)

1 x DB-9 for optional GPS Dead Reckening module

4 x BNC connector Video-In for optional 4-channel video capture card

4 x Audio connector for 7.1 channel audio output (front, center/woofer, rear surround, side surround)

Power ManagementSelectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/off delay time by software

Status of ignition and low voltage can be detected by software

Support S3/S4 suspend mode

Operating System

Windows 8 Professional, WES8

Windows 7, WES7

Tizen IVI

Fedora

Wind River® Intelligent Device Platfrom XT 2.0

Dimensions

180mm (W) x 180mm (D) x 50mm (H) (7.09" x 7.09" x 1.97")

1.7k

Environment

Operating temperatures:

-30°C to 70°C (w/ industrial SSD) with air flow

-20°C to 50°C (w/ commercial HDD) with air flow

Storage temperatures: -35°C to 85°C

Relative humidity: 10% to 90% (non-condensing)

Vibration (random): 1g@5 ~ 500 Hz (in operation, SSD)

Vibration (SSD):

Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier

US highway truck vibration exposure

Storage: MIL-STD-810G, Method 514.6, Category 24, minimum

integrity test

Shock (SSD):

Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g

Non-Operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75

Certifications

CE approval

FCC Class B

E13 Mark


VTC 1010-BK (P/N: 10V00101000X0)

Intel® Atom™ dual core processor E3827 1.75GHz CPU, 2GB DDR3L SO-DIMM, VGA/DP Output, 1 LAN, 2 x RS-232, 1 x RS-422/485, 3 x DI, 3 x DO, 3 x USB, 12VDC output
