ICES 670
4th Generation Intel® Core Processor
Mobile Intel® QM87 chipset
Supports PICMG COM.0 Rev. 2.1 Type 6 pin-outs
Supports dual ECC-DDR3L/ SO-DIMMs 1333/1600MHz, up to 16GB
Supports PCIe x16, 7x PCIe x 1, 4x USB3.0/ 8x USB2.0, 2x SATA3.0/ 2x SATA2.0 and GbE
Supports up to 3 independent displays, VGA, eDP/ LVDS, DVI, HDMI, DisplayPort
Dimensions: 95 x 125mm2 (W x L)
- Introduction
- Specification
- Order
- Download

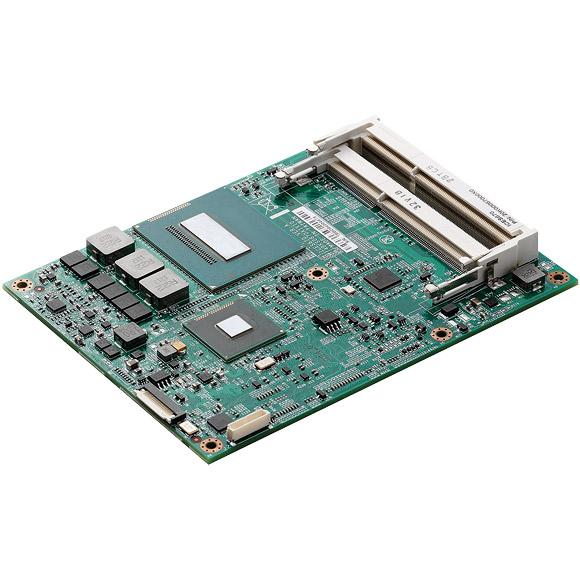

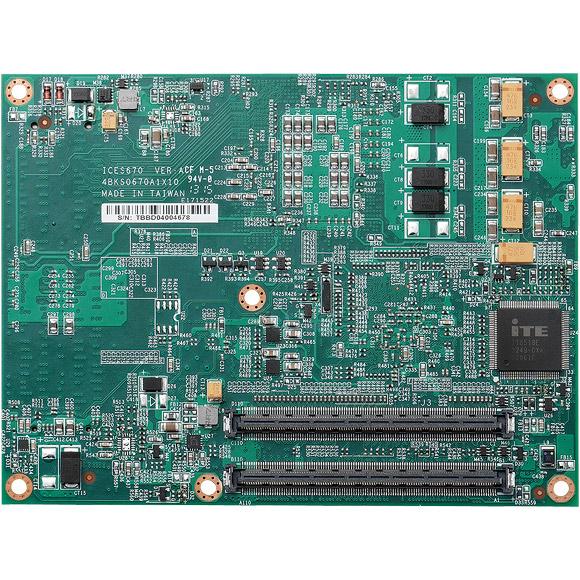

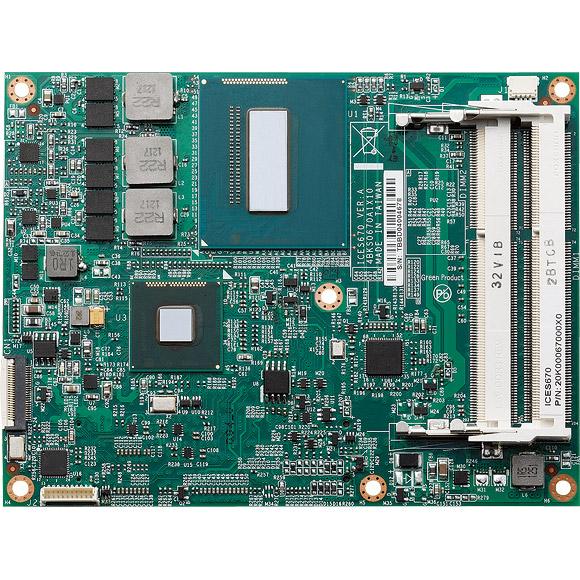

ICES 670 is a COM Express Type 6-pinouts core module with Intel® Lynx-Point PCH chipset, supporting Intel® 4th generation Intel® Core™ processors, (Haswell/ Shark Bay mobile), dual ECC-DDR3 SO-DIMM ICES 670 integrates Intel® GT1/ GT2/ GT3 graphics engine, supports DX11.1 or expandable via PCI Express Graphic 1x 16 lanes, supports 3 DDI (Digital Display Interface), PICMG compliant COM.0 Rev. 2.0 specification. Type 6-pinout carrier board with HDMI, DVI, Display Port, eDP and legacy VGA, single 18-/ 24-bits LVDS interface. The high-performance ICES 670 COM Express core module can support 4x USB3.0/ 8x USB2.0, 2x SATA3.0/ 2x SATA2.0 and 7x PCIe x1 lanes via Xinhan's in-house designed ICES 8060, which can also be customized according to project requirements.
| CPU | Support Intel® BGA 1364, 4th generation Intel® Core™ processors (Haswell-M/ Shark Bay-MB) |
| 内存 | Dual ECC-DDR3L/ SO-DIMMs, support 1333/1600MHz memory up to 16GB |
| 平台控制中心 | Intel® 8 series (Lynx Point-M) PCH chipset |
| BIOS | AMI System UEFI BIOS Plug and play support Advanced power management and advanced configuration & power interface support |
| 音频 | HD audio interface |
| 板载LAN | Intel® Clarkville(I217) Gigabit Ethernet, support next generation vPro/iAMT Support PXE boot from LAN, wake on LAN function Signals down to I/O board |
| COM Express连接器 | AB VGA/ LVDS/ 8x USB2.0 / HD Audio/ 4x SATA/ GbE/ GPIO/ LPC bus,1x PCIe x4/ 2x PCIe x1/ SMBus (I2C)/ SPI BIOS /SPK out CD PCIex16/ 3x DDI /4x USB 3.0/ 1x PCIe x1 |
| 电源需求 | +12V, +5VSB, +3.3V RTC power |
| 尺寸 | 95mm (W) x 125mm (L) |
| 运行环境 | Board level operating temperatures: -15°C to 60°C Storage temperatures: -20°C to 80°C Relative humidity: 10% to 90% (operating, non-condensing) 5% to 95% (non-operating, non-condensing) |
| 认证 | Meet CE FCC Class A |
ICES 670 (P/N: 10K00067000X0)
COM Express Type 6, Basic Module, 4th Gen Haswell Core i7-4700EQ (4C8T, 2.4G, 47W), QM87, DDR3L x3, VGA, eDP/ LVDS, DVI, HDMI, DP, USB 3.0 x4, USB 2.0 x 8, GbE, SATA x4, PCIe x16, seven PCIe x1
ICES 670-4400E (P/N: 10K00067002X2)
COM Express Type 6, Basic Module, 4th Gen Haswell Core i5-4400E (2C4T, 2.7G, 37W), QM87, DDR3L x 3, VGA, eDP/ LVDS, DVI, HDMI, DP, USB 3.0 x4, USB 2.0 x8, GbE, SATA x4, PCIe x16, seven PCIe x1
Order or get information, please send an email to: sales@nexgemo.cn
