VTC 7252-7C4IP
Intel® Core™ 9th Gen, i7-9700TE, up to 3.8GHz, 8 Core
FUll IP65 protection
4 x Independent 10/100/1000 Mbps PoE 802.3af/at, total 60W
2 x Internal 2.5” SSD and 2 x mSATA for RAID 0, 1
2 x Isolated CAN Bus 2.0B
1 x External CFast and 2 x SIM socket with door
Support 5G NR, Wi-Fi 6, V2X/DSRC, accelerator cards
CE / FCC / E-mark (E13) / MIL-STD-810G
- Introduction
- Specification
- Order
- Download
IP65 vehicle computer VTC 7252-7C4IP accomplishes operational efficiency of harsh environment. Based on the 9th generation Intel® Core™ processors i7-9700TE, VTC 7252-7C4IP provides an integral solution incorporating high computing power, 4 port of independent PoE, 2 port of independent LAN and GNSS tracking with optional Dead Reckoning (DR) support to record in-vehicle activities, locations, high quality videos, driving patterns and vehicle diagnostics for raw material and public work vehicles achieving better measures for safety and management.
| CPU | Intel® Core™ 9th Gen. i7-9700TE, up to 3.8 GHz, 35W, 8 Core |
| Chipset | Intel® C246 platform controller hub |
| Memory | 2-Channel 260-pin DDR4 SO-DMIM sockets up to 32GB/channel (64GB for two channels, non-ECC up to 2666 MHz), default 4GB + 4GB industrial grade memory |
| Video Output | Chipset Intel® UHD Graphics 630 1 x VGA up to 1920 x 1200 @ 60Hz 1 x HDMI (4096 x 2160 @ 30Hz) (option) |
| Storage | 1 x VGA up to 1920 x 1200 @ 60Hz (reserve) 2 x 2.5” SATA 3.0 internal SSD (tray: 15mm height), RAID 0/1 supported 2 x mSATA 3.0 (occupied mini-PCIe socket) |
| Expansion | 1 x M.2 3042/3052 Key B (USB 2.0, USB 3.2 Gen2) for LTE/5G NR 2 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0 & SATA 3.0 (BIOS selection)) 1 x M.2 2230 Key E (USB 2.0, 2 x PCIe 3.0) for Wi-Fi 6 and Google Coral module. (BOM option) 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0) for Intel® Movidius™ module |
| GNSS and On Board Sensor | 1 x Default U-blox NEO-M8N GNSS module for GPS/Glonass/QZSS/Galileo/Beidou, optional modules with dead reckoning available TPM 2.0 by Infineon SLB9665TT2 (BOM option) 1 x 3D accelerometer and 3D gyroscop |
| Power over Ethernet | 4 x Independent LAN, 10/100/1000 Mbps Intel® I210-IT GbE, PoE 802.3af/at max. 60W 2 x LAN, 10/100/1000 Mbps (1 for I219 support iAMT and WOL) |

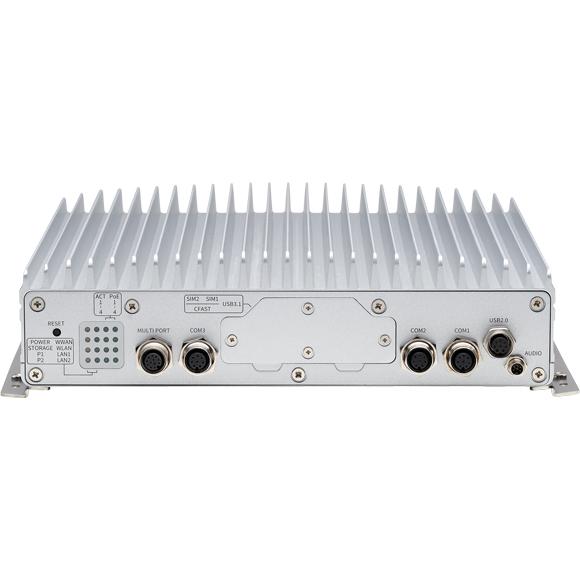

| I/O Interface-Front | 1 x Reset button 16 x LED indicators (including 2 x programmable LED) 2 x USB 3.2 Gen2 type A (5V/0.9A) with cover 2 x External Micro SIM slot with cover 1 x CFast with cover 1 x 6-pin for audio (1 x mic-in (mono) 1 x line-out (L + R)). (option)Additional 1 x mic-in (mono) and 1 x line-out (L + R) 1 x M12 8-pin for 2 x USB2.0 (5V/0.5A) 1 x M12 8-pin for 2 x USB2.0 (5V/0.5A) 1 x M12 8-pin for full RS-232/422/485 2 x M12 8-pin for full RS-232 1 x M12 12-pin - 2 x Isolated CAN Bus 2.0B - 3 x DI, and 3 x DO - GND 1 x M12 8-pin (reserve) - 12VDC(2A) output - RS-232 (TX & RX) - Remote power button - Reset button - Sleeping mode button |

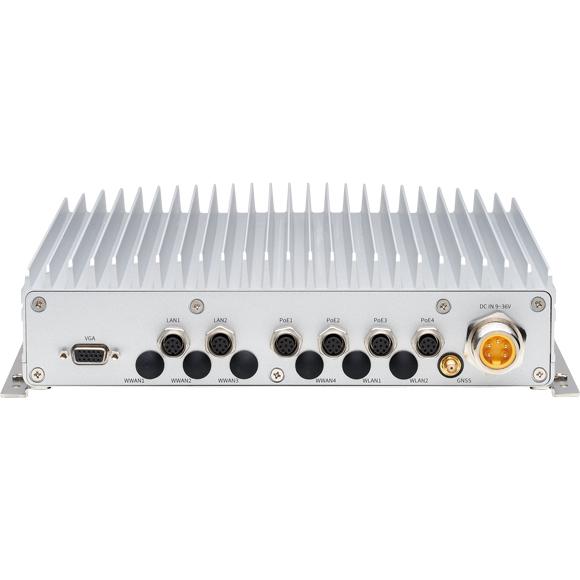

| I/O Interface-Rear | 1 x VGA 2 x M12 A-code LAN port, 10/100/1000 Mbps 4 x M12 A-code PoE port, 10/100/1000 Mbps 1 x M12 5-Pin DC Input with Ignition (9 ~ 36V) 7 x SMA antenna hole (WWAN(4)/WLAN(2)/GNSS(1) |
| Power Management & Software Support | Power input 9~36VDC Cranking voltage: 6V~9V (< 30 seconds) Reverse protection, OCP & UVP Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software 10~255 seconds WDT support, setup by software SDK (Windows/Linux) including utility and sample code |
| Operating System | Windows 10 Linu |
| Dimensions | 256 x 256.4 x 66.5 (W x D x H) (mm) |
| Weight | 4.5kg |
| Environment | Operating temperatures - -30°C~60°C (w/ industrial SSD) with air flow Storage temperatures: -40°C~80°C Relative humidity: 90% (non-condensing) Vibration (random) - 2g @ 5~500 Hz (in operation, SSD) Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24,minimum integrity test Shock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functionalshock=40g Non-operating: MIL-STD- |
| Certifications | CE approval FCC Class A E-Mark (E13) IP65 Compatible |
VTC 7252-7C4IP (P/N: 10V00725200X0)
Intel® Core™ 9th Gen. i7-9700TE, 2 x 4 GB industrial grade memory, VGA output, 2 x internal 2.5” tray, 1 x CFast, 2 x LAN, 4 x PoE 802.3af/at (total 60W), 2 x mini-PCIe slot, 2 x M.2 slot, 2 x SIM socket, 2 x USB 3.1, 2 x RS232 (full), 1 x full RS232/422/485, 3 x DI & 3 x DO
