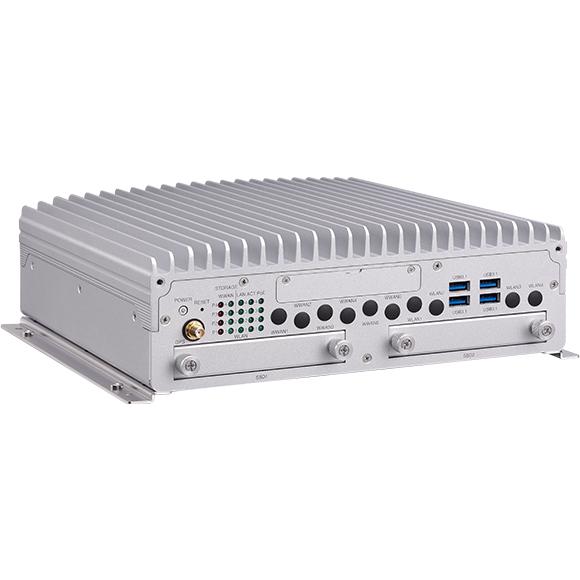

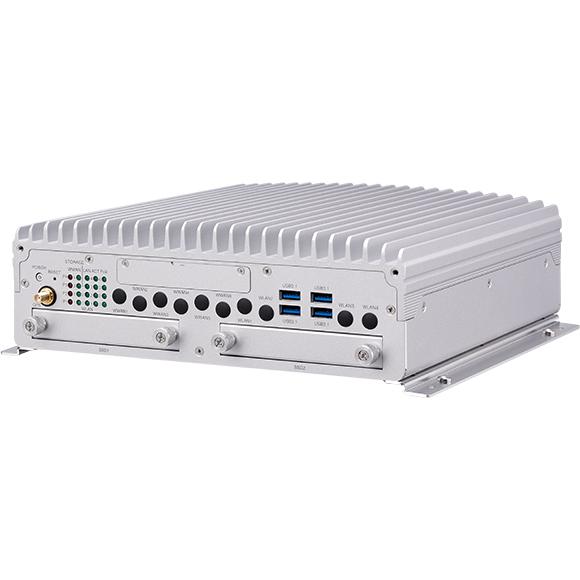

VTC 7251-7C4

Fanless 4-CH PoE Vehicle Computer with Intel® Core™ 8th Gen. CPU

Intel® Core™ 8th Gen. desktop, i7-8700T, up to 4 GHz, 6 Core

4 x Independent 10/100/1000 Mbps PoE 802.3af/at, total 60W

1 x VGA and 1 x HDMI video output

2 x External SSD and 2 x mSATA (BIOS selection) for RAID 0, 1

3 x WWAN module slot, each for 2 x external SIM socket

4 x mini-PCIe slot and 1 x M.2 Key B slot

CE/FCC/E mark


Mobile surveillance system VTC 7251-7C4 accomplishes operational efficiency of public transportation and service. Based on the 8th generation Intel® Core™ processors i7-8700T, VTC 7251-7C4 provides an integral solution incorporating high computing power, 4 port of independent PoE, wireless communication (3 x WWAN + 6 x SIM) and GNSS tracking with optional Dead Reckoning (DR) support to record in-vehicle activities, locations, high quality videos, driving patterns, and vehicle diagnostics for buses and patrol vehicles achieving better measures for safety and management.

CPU

Intel® Core™ 8th Gen. i7-8700T, up to 4 GHz, 35W, 6 Core

Compatible Intel® Core™ 9th Gen. (Coffee Lake Refresh

ChipsetIntel® Q370 platform controller hub
Memory2-Channel 260-pin DDR4 SO-DMIM sockets up to 32GB/channel (64GB for two channels, non-ECC up to 2666 MHz), default 4GB + 4GB industrial grade memory
Video Output

Chipset Intel® UHD Graphics 630

1 x HDMI 1.4b up to 4096 x 2160 @ 30Hz

1 x VGA up to 1920 x 1200 @ 60Hz

Storage

2 x 2.5” SATA 3.0 external SSD (compatible with 15mm height), RAID 0/1 supported

2 x mSTAT 3.0 (BIOS selection)

Expansion

1 x M.2 3042/3050/3052 (default) Key B socket (USB 2.0, USB 3.1) for LTE/5G NR module with dual SIM

1 x Full-size mini-PCIe socket (USB 2.0) for LTE with dual SIM

Optional M.2 3042 Key B (USB 2.0, USB 3.1) for LTE/5G NR module

1 x Full-size mini-PCIe socket (USB 2.0) for LTE with dual SIM

Optional M.2 3042 Key B (USB 2.0, USB 3.1) for LTE/5G NR module

1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0 & SATA 3.0 [BIOS selection])

1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0 & SATA 3.0 [BIOS selection])

GNSS and On Board Sensor

1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou

Optional modules with dead reckoning available

TPM 2.0 by Infineon SLB9665TT2 (BOM option)

G Sensor (3-axis, 10-bit resolution)

Power over Ethernet

4 x Independent LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W

1 x LAN, 10/100/1000 Mbps I219 support iAMT and WOL

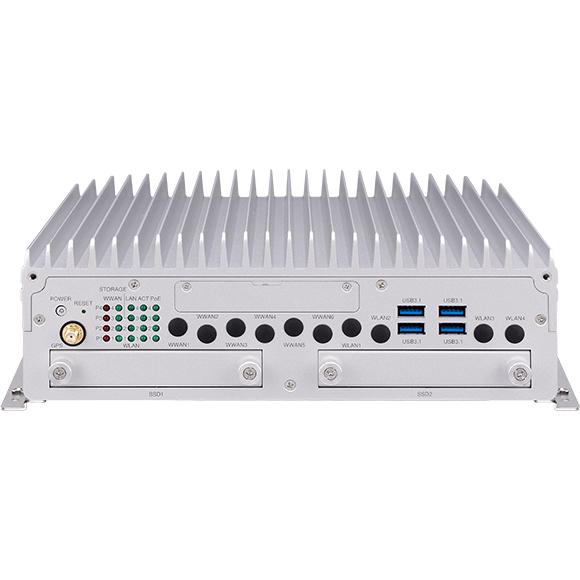

I/O Interface-Front

20 x LED indicators (including 4 x programmable LED)

4 x USB 3.1 type A (5V/1A)

6 x Externally accessible SIM card sockets (4 x WWAN + 8 x SIM, BOM option)

1 x Reset button

1 x Power button with LED

2 x 2.5” external SSD

11 x SMA antenna hole (GPS/WWAN/WLAN)

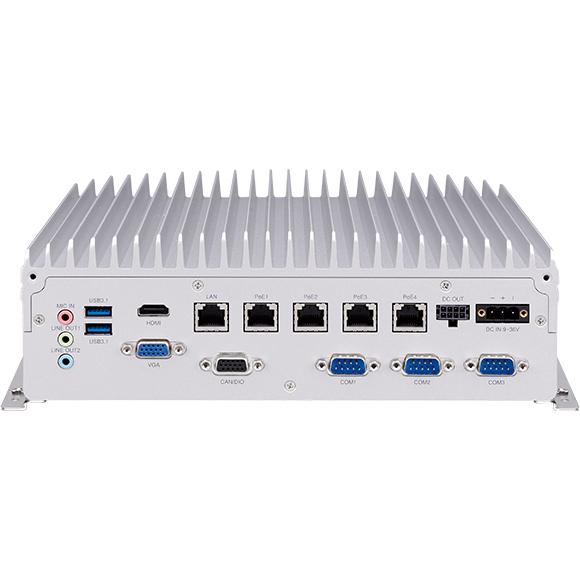

I/O Interface-Rear

4 x RJ45 PoE 802.3af/at, max. 60W

1 x RJ45 LAN port, 10/100/1000 Mbps

1 x 3-pin terminal block for 9V~36VDC

1 x Connector (4 x 2) for 12VDC/2A output, power button, 2 x MDI

1 x Mic-in, 2 x Line-out

2 x DB9 for full RS232

1 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A)

1 x DB15

1 x Isolated CANBus 2.0B

1 x GPS DR (option)

4 x DI and 4 x DO

2 x USB 3.1 type A (5V/1A)

1 x HDMI 1.4b

1 x VGA

Power Management & Software Support

Power input 9~36VDC

Cranking voltage: 6V~9V (< 30 seconds)

Reverse protection, OCP & UVP

Selectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/off delay time by software

10~255 seconds WDT support, setup by software

SDK (Windows/Linux) including utility and sample code

Operating System

Windows 10

Linux

Dimensions260 x 256 x 83.5 (W x D x H) (mm)
Weight4.2kg
Environment

Operating temperatures

- -30°C~60°C (w/ industrial SSD) with air flow

Storage temperatures: -40°C~80°C

Relative humidity: 90% (non-condensing)

Vibration (random)

- 2g@5~500 Hz (in operation, SSD)

Vibration (SSD)

- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure

- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test

Shock (SSD)

- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g

- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

Certifications

Certifications

CE approval

FCC Class A

E13 mark


VTC 7251-7C4 (P/N: 10V00725100X0)

Intel® Core™ 8th Gen. i7-8700T, 2 x 4 GB industrial grade memory, VGA & HDMI output, 2 x external SSD, 1 x LAN, 4 x PoE 802.3af/at (total 60W), 4 x mini-PCIe slot, 1 x M.2 slot, 6 x external SIM, 6 x USB 3.1, 2 x RS232 (full), 1 x full RS232/422/485, 4 x DI & 4 x DO
