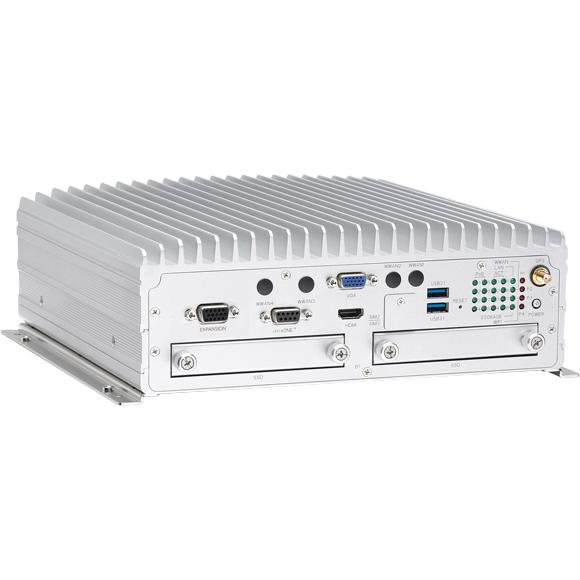

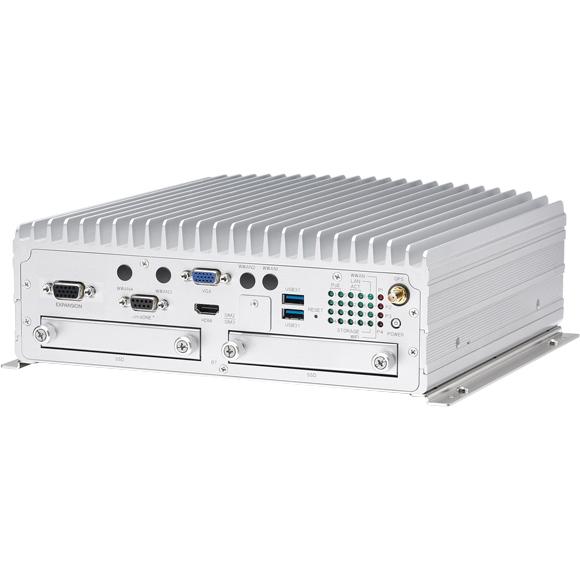

VTC 7250-7C8
Intel® Core™ 8th Gen. desktop, i7-8700T, 2.4GHz, 6 Core
8 x 10/100/1000 PoE 802.3af/at
1 x VGA and 1 x HDMI video output
ultraONE+ for 10-Meter video + audio output
2 x External SSD and 2 x mSATA for RAID 0, 1, 5, 10
2 x WWAN module and 3 x SIM socket with eSIM option
3 x mini-PCIe and 1 x M.2
CE/FCC/E mark
- Introduction
- Specification
- Order
- Download
Mobile surveillance system VTC 7250-7C8 accomplishes operational efficiency of public transportation and service. Based on the 8th generation Intel® Core™ processors i7-8700T, VTC 7250-7C8 provides an integral solution incorporating high computing power, 8 port of PoE, wireless communication (2 x WWAN + 3 x SIM) and long distance display connection (up to 10 meters), GNSS tracking with optional Dead Reckoning (DR) support to record in-vehicle activities, locations, high quality videos, driving patterns, and vehicle diagnostics for buses and patrol vehicles achieving better measures for safety and management.
| CPU | Intel® Core™ 8th Gen. i7-8700T, 2.4GHz, 35W, 6 Core |
| Chipset | Intel® Q370 platform controller hub |
| Memory | 2-Channel 260-pin DDR4 SO-DMIM sockets up to 32GB/channel (64GB for two channels, non-ECC up to 2666 MHz), default 4GB + 4GB industrial grade memory |
| Video Output | Chipset Intel® UHD Graphics 630 1 x HDMI 1.4b up to 4096 x 2160 @ 30Hz 1 x VGA up to 1920 x 1200 @ 60Hz 1 x ultraONE+ compatible with specific monitor |
| Storage | 2 x 2.5” SATA 3.0 external SSD (compatible with 15mm height), RAID 0/1 supported 2 x mSATA 3.0 (share with mini-PCIe slot) |
| Expansion | 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0/SATA 3.0 auto detection) 1 x Full size mini-PCIe socket (USB 2.0), optional M.2 3042 B key (USB 2.0, USB 3.1) with 1 x external SIM3, 1 x internal SIM2 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, optional SATA 3.0 setup by BIOS) 1 x M.2 3042 B key (USB 2.0, USB 3.1) with 1 x external SIM1, 1 x internal SIM2 |
| GNSS and On Board Sensor | 1 x Default U-blox NEO-M8N GNSS module for GPS/Glonass/QZSS/ Galileo/Beidou Optional M8U/M8L modules with dead reckoning available TPM 2.0 by Infineon SLB9665TT2 (option) G Sensor (3-axis, 10-bit resolution) |
| Power over Ethernet | 8-Port LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W 1-Port LAN, 10/100/1000 Mbps I210-IT Gb |

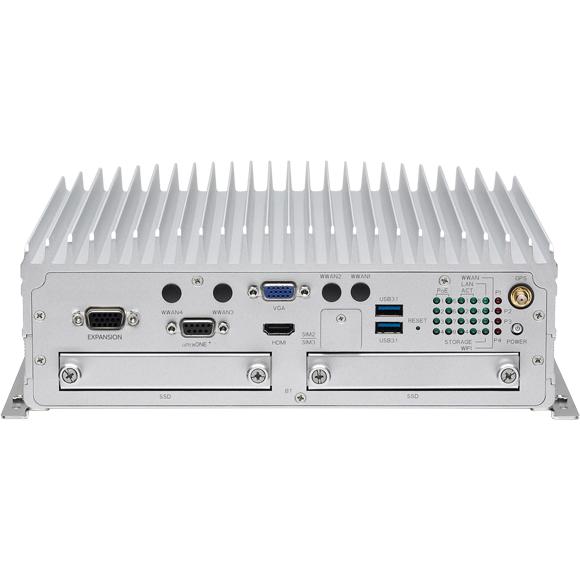

| I/O Interface-Front | 24 x LED indicators (including 4 x programmable LED) 1 x HDMI 1.4b 1 x VGA 1 x ultraONE+ for 10M video + audio output + 24VDC output 2 x USB 3.1 type A (5V/1A) 2 x Externally accessible SIM card sockets 2 x 2.5” removable SSD tray 1 x Reset button 1 x Power button 5 x SMA antenna |

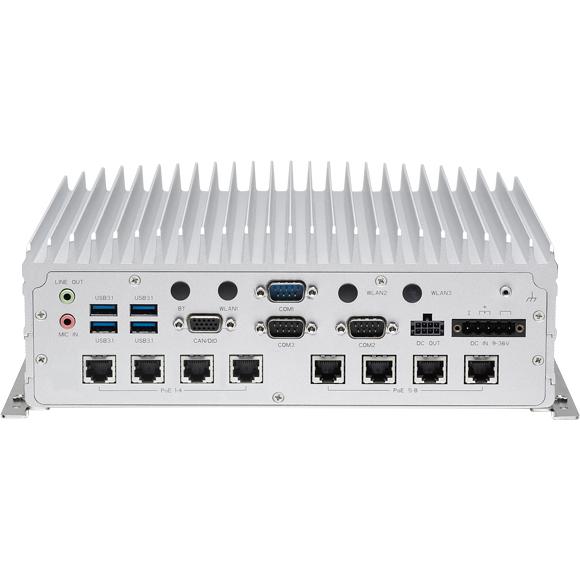

| I/O Interface-Rear | 8 x PoE 802.3af/at (max. 60W) 1 x RJ45 LAN port, 10/100/1000 Mbps 1 x 5-pin terminal block for 9V~36V DC 1 x Mic-in, 1 x Line-out 1 x Connector (4 x 2) for 12VDC/2A output, power button, 2 x MDI 2 x DB9 for full RS232 1 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A) 1 x DB15 - 1 x Isolated CANBus 2.0B - 1 x GPS DR (option) - 4 x DI and 4 x DO 4 x SMA antenna 4 x USB 3.1 type A (5V/1A) |
| Power Management & Software Support | Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Support S3/S4 suspend mode 10~255 seconds WDT support, setup by software SDK (Windows/Linux) including utility and sample code |
| Operating System | Windows 10/Linux/YOCTO (by request) |
| Dimensions | 260 x 256 x 90.1 (W x D x H) (mm) |
| Weight | 5.8kg |
| Environment | Operating temperatures -20°C~60°C (w/industrial SSD) with air flow Storage temperatures: -40°C~80°C Relative humidity: 90% (non-condensing) Vibration (random) - 2g@5~500 Hz (in operation, SSD) Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75 |
| Certifications | CE approval, FCC Class A, E13 mark |
VTC 7250-7C8 (P/N: 10V00725000X0)
Intel® Core™ 8th Gen. i7-8700T, 2 x 4GB industrial grade memory, 8 x PoE 802.3af/at, 3 x mini-PCIe, 1 x M.2, 3 x SIM
