Intel® Core™ i7-4650U Marine Fanless System

Onboard Intel® Core™ i7-4650U processor

4 Gigabit Ethernet

1x DVI-D and 1x DVI-I display output

3 USB 2.0, 2 USB 3.0

1 RS232/422/485 isolated

DDR3L supported

M.2 SATA supported

Built in 24VDC power input

IEC-60945 maritime standards compliance

Onboard TPM

CE-HW-01 computer features the Intel® Core i7-4650U processor with low power consumption and deliver a reliable, durable, high-performance platform of wide versatility for use in maritime and offshore environments. It has an isolated RS-232/422/485 port, four gigabit Ethernet LAN ports, five USB posts, and also supports dual independent display through a DVI-D and a DVI-I outputs.

The CE-HW series computers are designed with a wide -15°C to 70°C temperature range, supports 24VDC power input, and come with a fanless minimalistic enclosure designed. It features a rugged chassis proven against best anti-vibration, providing a most reliable platform even in harsh environments. The CE-HW series computers are compliant to IEC-60945 maritime standards.



- Onboard Intel® Core™ processor i7-4650U, 1.7 GHz, 4M Cache

- LAN chip: 2x Intel® I210-IT Gigabit LAN + 2x Intel® 82574 Gigabit LAN

- Ethernet interface: 10/100/1000 Mbps

- Support wake up on LANSystem memory: 2x 204-pin DDR3L SO-DIMM socket, support up to 16GB DDR3L-1066/1333, non-ECC and un-bufferedGraphics: Intel® HD GraphicsWatchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)H/W status monitor: monitoring system temperature, and voltage

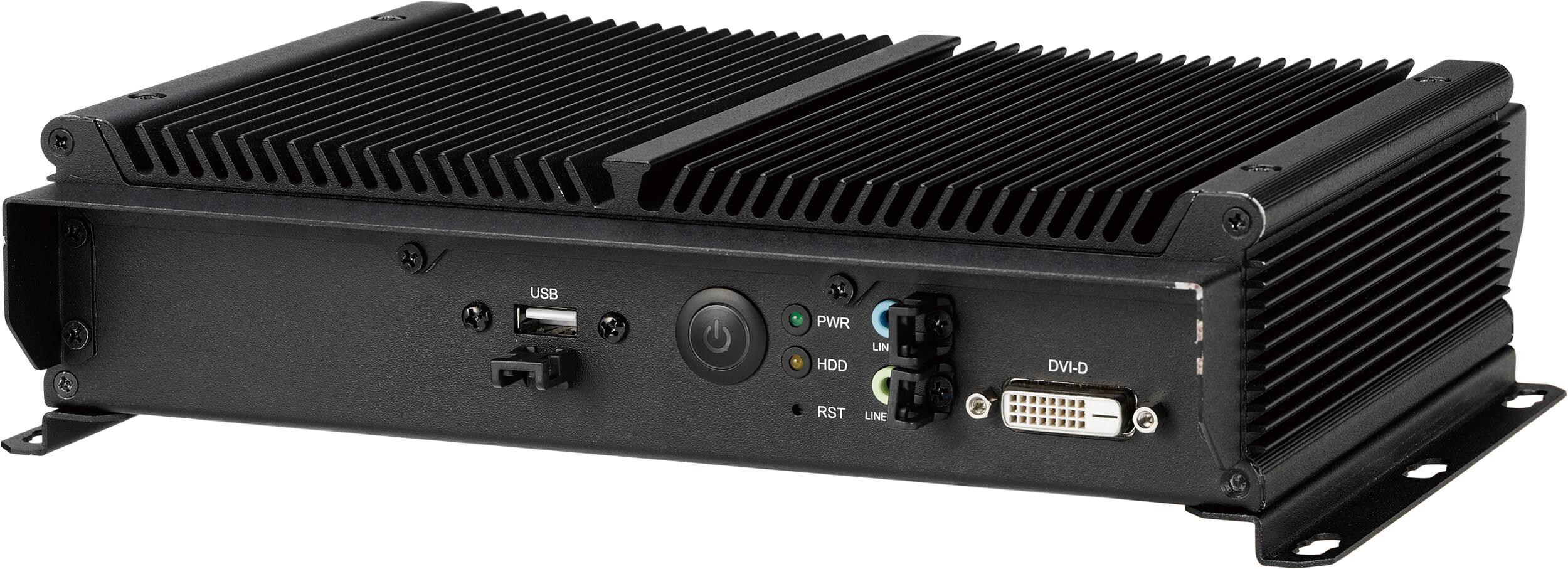

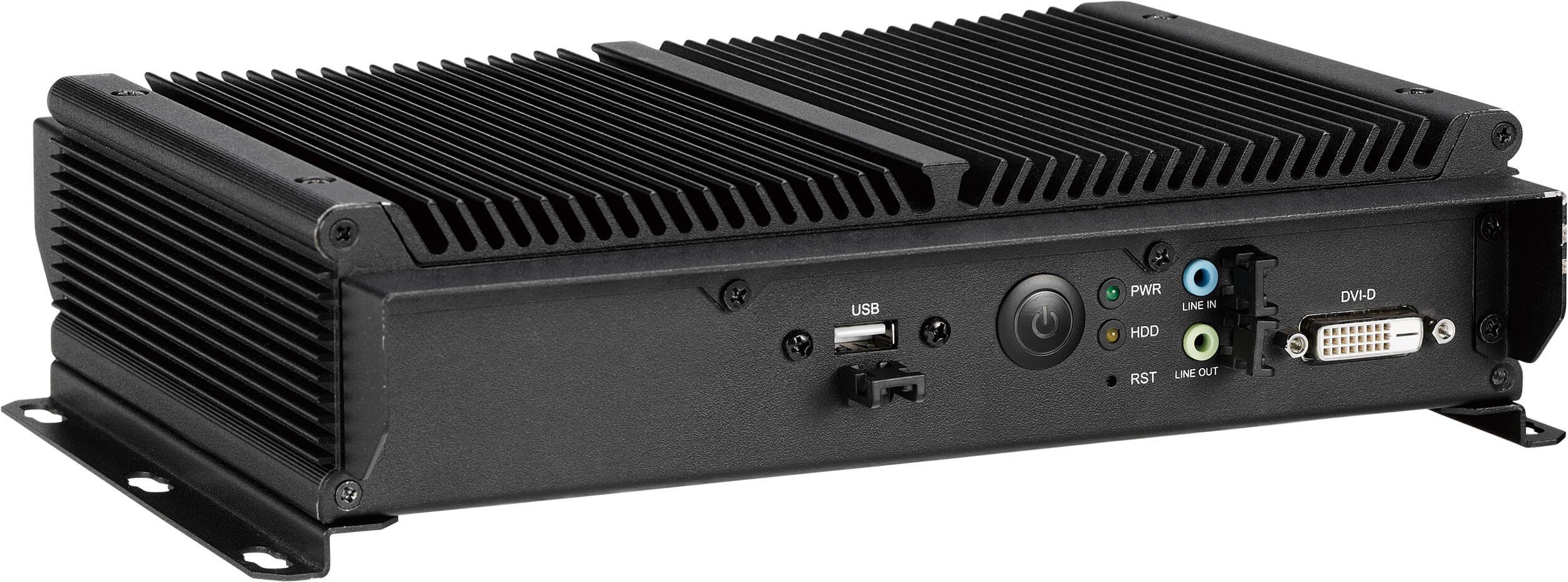

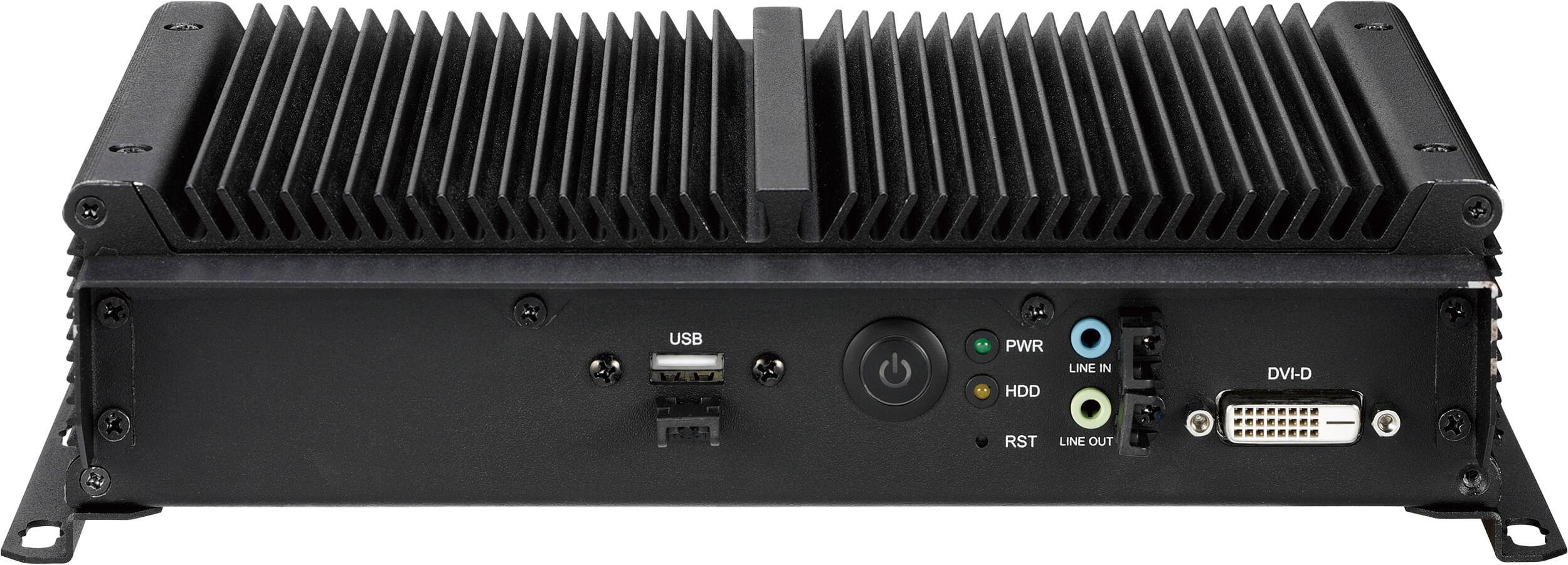

I/O Interface-FrontDisplayPort: 1x DVI-D portUSB: 1x USB 2.01x Mic-in and 1x Line-outPower status/HDD status LEDsPower on/off switchReset button

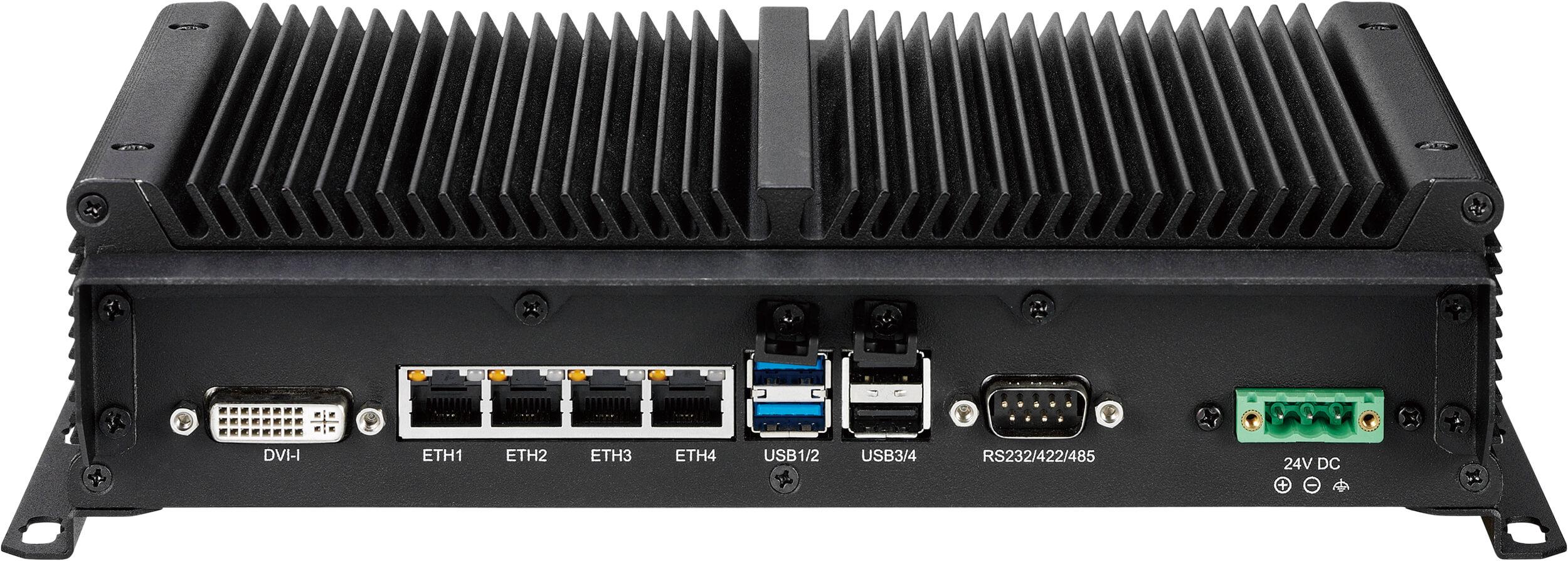

I/O Interface-RearEthernet: 4x RJ452nd DisplayPort: 1x DVI-I portUSB: 2x USB 2.0, 2x USB 3.0COM #1: 1x RS232/422/485DC power input connector: 3-Pin Phoenix terminal blocks
Device1x SATA M.2 connector1x mini-PCIe connector
Power Requirements

DC power input:

- Input voltage: 24VDC

- Reverse polarity protection

- Galvanic isolated

- Power consumption: 20W to 35

Mechanical & Environment

Fanless system designPantone black RAL9005, extruded and painted aluminum housingIP protection: IP20 top coverVibration

- 1Grms @ random condition, 5~500Hz, 2hr/axis (operating/non-operating)Shock

- IEC 68 2-27

- 20G @ wall mount, half sine, 11msOperating temperature: -15°C to 70°CStorage temperature: -25°C to 75°COperating humidity: 10%~90% relative humidity, non-condensingDimension: 250 x 164.4 x 57.9 mmWeight: 3 KG

CertificationsCE approvalFCC Class ACCC approvalIEC-60945 maritime standards compliance

CE-HW-01 (P/N: 10A1000HW04X0)

Intel® Core™ i7-4650U marine fanless system
