MVS 5603-C6SMK
Modular design for flexible I/O expansion
WLAN, 3G/LTE via 3 mini-PCIe + 1 M.2 slots
Up to five SIM cards + triple WWAN modules support
6 x GbE 802.3 af/at PoE, 6 x M12 ports
Built-in u-blox NEO-M8N module, optional Dead Reckoning support
Intel® Core™ dual core i7-6600U/i3-6100U Dual removable SATA 3.0 2.5" SSD/HDD
iButton for driver ID identification
Built-in CAN 2.0B. Optional OBDII function (SAE J1939/J1708)
Pattern number M531607 registered, an easy way to expand diverse I/O cards
- Introduction
- Specification
- Order
- Download

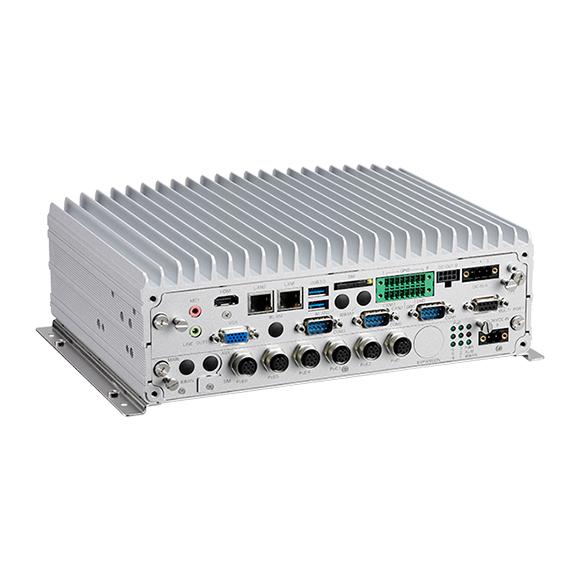

MVS 5603-C6SMK 6-CH PoE In-vehicle mobile computer increases safety and security for bus passenger transportation with high video resolution and 2 removable extensive HDD/SSD and CFast for storage capacity. It connects up to 6 IP cameras + PoE function providing reliable and high quality video coverage around the bus.
MVS 5603-C6SMK is a modular design, it is flexible to use other kinds of expansion boards to extend different I/O functions for different applications.
MVS 5603-C6SMK leverages wireless networks to simplify fleet management with capabilities such as remote, real-time video monitoring. This remote capability keeps transit fleets in service around the clock.
Vehicle data integration and diagnostics are also carried out via CAN Bus and OBDII. MIL-STD-810G for shock and vibration is designed to operate in harsh environments. Optional internal back-up battery guards against any unexpected vehicle power failure or unstable vehicle power.
| CPU | 6th generation Intel® Core™ dual core i7-6600U, 2.6GHz/i3-6100U, 2.3GHz |
| Memory | 2-channel 204-pin DDR3L SO-DMIM socket support 1600MHz up to 16GB, default 2GB industrial grade memory |
| Storage | 2 x 2.5” SATA 3.0 SSD/HDD (removable & hot swappable), RAID 0, 1 supported (optional lockable storage available) 1 x CFast (externally accessible) |
| Expansion | 1 x full size mini-PCIe socket (USB 2.0)1 x full size mini-PCIe socket (USB 2.0 + PCIe)1 x half size mini-PCIe socket (USB 2.0 + PCIe)1 x M.2 B-key (3042)1 x full size mini-PCIe socket (USB 2.0) |
| GNSS and On Board Sensor | 1 x default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou Optional modules with Dead Reckoning available Built-in G-senso |
| Power over Ethernet | 6-port M12 for 10/100/1000 Mbps PoE IEEE 802.3af/at conformity, total 60W PSE |
| Security | TPM in option |
| I/O Interface-Front | 6 x LED indicators for power/storage/WLAN/WWAN/Status/Health 1 x Reset button 2 x USB type A USB3.0 port 2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out 1 x externally accessible SIM card socket 2 x antenna holes for WWAN/WLAN/BT/GP |
| I/O Interface-Rear | 6 x M12 10/100/1000 Mbps PoE ports with LED 2 x RJ45 10/100/1000 Intel® Fast Ethernet with LED 1 x 9~36VDC input with ignition and 40W typical power consumption 2 x USB type A USB 3.0 port 2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out 1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz 1 x HDMI port, resolution up to 2560 x 1600 @60Hz 2 x DB-9 RS-232 1 x DB-9 RS-232/422/485 (RI/5V/12V selectable) 1 x 12VDC output (2A) + SM Bus + 2 x MDI + power button 1 x DB9 connector for optional DR signal input, 2 x MDO and iButton 1 x 16-pin terminal block connector 1 x CAN Bus 2.0B (on board) 1 x OBDII from optional VIOB-CAN-03 module (SAE J1939) 1 x CAN Bus 2.0B from optional VIOB-CAN-03 module 8 x programmable GPIO (4 x Digital inputs in default) -Input voltage (source type): 5VDC TTL (default) -Input voltage (external type): 3 ~ 12VDC (4 x Digital outputs in default) -Digital output (source type): 5VDC TTL (default), max current: 20mA -Digital output (external type): 3 ~ 24VDC, max current: 150mA 1 x externally acessible SIM card socket and 1x internal SIM card socket selectable |
| Power Management | Selectable boot-up & shut-down voltage for low power protection by software. Setting 8-level power on/ off delay time by software. Support S3/S4 suspend mode |
| Rechargeable Battery (option) | Lithium-ion Polymer Nominal capacity 1100mAh Maximum charge current 1.0CmA |
| Operating System | Windows 7/WES7/Windows 8/WES8/Windows 10/Linux kernel 3.X |
| Dimensions | 260mm (W) x 196mm (D) x 91mm (H) (10.24” x 7.72” x 3.58”) 4kg |
| Environment | Operating temperatures: -30°C~60°C (w/ industrial SSD) with air flow Storage temperatures: -40°C~80°C Relative humidity: 10% to 90% (non-condensing) Vibration (random): 1.5g@5~500 Hz (in operation, HDD), 2g@5~500 Hz (in operation, SSD) Vibration (SSD): Operating: MIL-STD-810G, Method 514.6C, Procedure 1, Category 4, common carrier US highway truck vibration exposure Storage: MIL-STD-810G, Method 514.6E, Procedure 1, Category 24, minimum integrity test Shock (SSD/HDD): Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g (HDD); functional shock=40g (SSD) Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
| Certifications | CE approval, FCC Class A, E13 Mark |
MVS 5603-7C6SMK (P/N: 10VS0560304X0)
6th generation Intel® Core™ dual core i7-6600U, 2.6GHz, 2GB DDR3L
industrial grade SO-DIMM, 6 x 10/100/1000 PoE, 2 x 10/100/1000
Ethernet, VGA/HDMI output, 2 x RS232, 1 x RS-232/422/485, 4 x USB3.0, 12VDC output, 1 x CAN
MVS 5603-3C6SMK (P/N: 10VS0560303X0)
6th generation Intel® Core™ dual core i3-6100U, 2.3GHz, 2GB DDR3L
industrial grade SO-DIMM, 6 x 10/100/1000 PoE, 2 x 10/100/1000
Ethernet, VGA/HDMI output, 2 x RS232, 1 x RS-232/422/485, 4 x USB3.0, 12VDC output, 1 x CAN
Battery Kit (P/N: 88VS0560303X0)
Rechargeable battery, Lithium-ion, capacity 1100mAh
