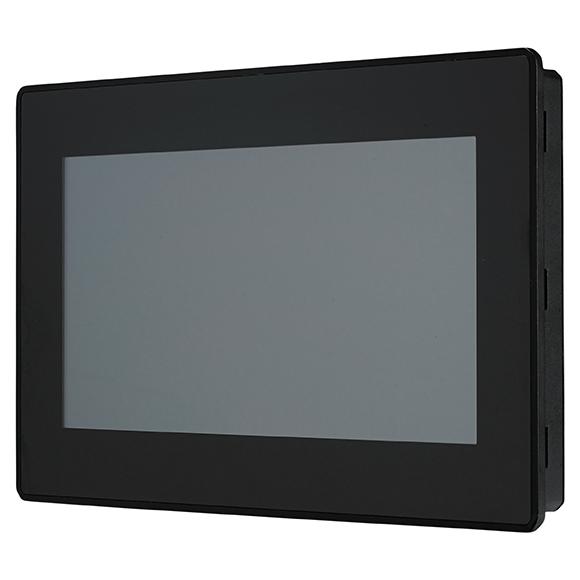

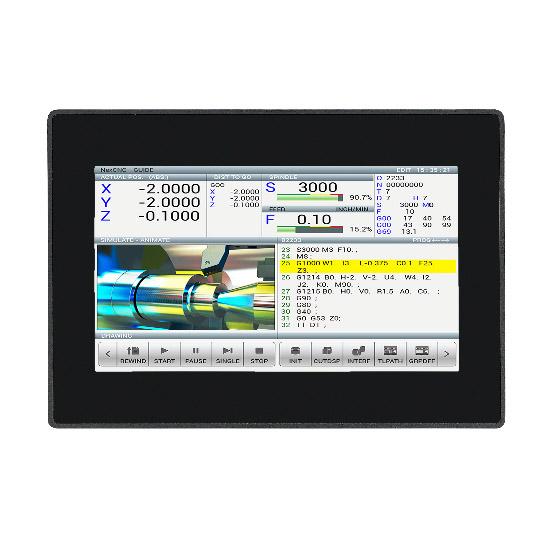

eLITE610
10.1”TFT color display, LED backlight
1024 x 600 pixel (WSVGA) resolution, 16.7M colors
Resistive touchscreen

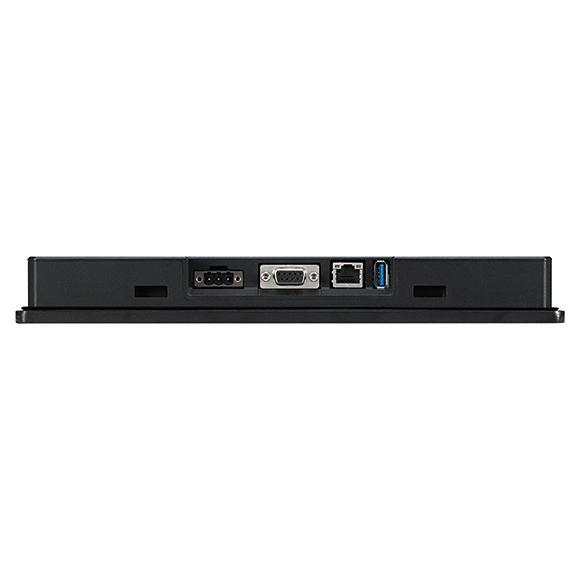

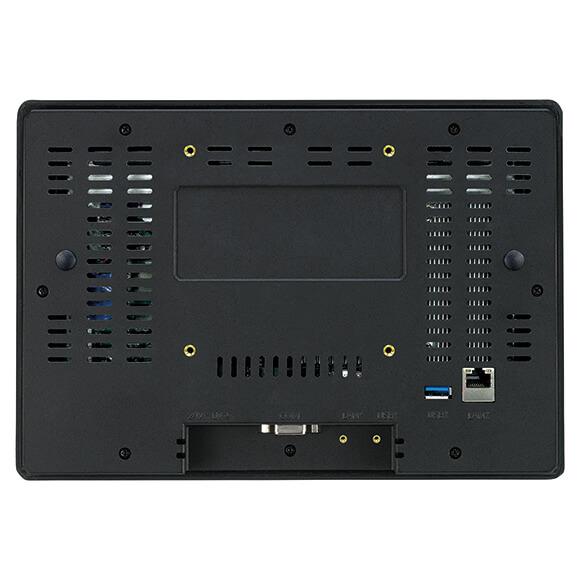

2 x Giga LAN and 2 x USB 3.0
1 x RS232/422/485 communication port
Extremely cost efficient HMI with plastic chassis
Slim design, mounting depth less than 30mm
System frame ground protection (GPE) design
- Introduction
- Specification
- Order
- Download
The eLITE610 is Intel Atom x5-E3930 high performance HMI with the JMobile software offers full vector graphic capabilities and plenty of connectivity options. The eLITE610 features a bright 10.1” TFT widescreen (16:9) display with 2 Giga LAN and 2 USB 3.0.
Highlight
JMobile runtime included. Full compatibility with JMobile Studio
Full vector graphic support. Native support of SVG graphic objects. Transparency and alpha blending
Multilanguage applications. Easily create and manage your applications in multiple languages to meet global requirements. Far east languages are supported. Tools available in JMobile studio support easy third-party translations and help reducing development and maintenance costs of the application
Data display in numerical, text, bargraph, analog gauges and graphic image formats
Rich set of state-of-the-art HMI features: data acquisition, alarm handling, scheduler and timed actions (daily and weekly schedulers, exception dates), recipes, users and passwords, e-mail and RSS feeds, rotating menus
Includes support for a wide range of communication drivers for factory and building automation systems
Multiple drivers communication capability
Remote monitoring and control. Client- server functionality. Mobile clients supported
Remote maintenance and support with VNC-based functionality
Off-line simulation of the HMI application with JMobile studio
Powerful scripting language for automating HMI applications. Script debugging improves efficiency in application development
Rich gallery of symbols and objects
Project templates
Optional plug-in modules for fieldbus systems, I/O and controllers
Display backlight dimmable to 0%
CPU & Memory | Intel Atom X5-E3930 (1.80GHz,2C2T,6.5W) Chipset - Apollo Lake Max. Memory - On Board 4GB DDR3L |
LCD & Touch | LCD Size - 10.1" (16:9) Resolution - 1024x600 Luminance - 240cd/m2 Viewing angle (U,D,L,R) - 70, 70, 60, 70 Touch Screen - 4-wire resistive |
Graphis | LVDS - Single, 24bit |
Storage | eMMC - 32GB |
External I/O | 2 x USB3.0 LAN Ports - 2x GbE |
Serial & GPIO | Serial Port (External) * : isolation - 1 x RS232/422/485 |
Expansion | miniPCIe - 1 SIM Card Holder - 1 |
Dimensions | Power Input Range - 24VDC Power Supply Adapter - Optional System Dimension (WxDxH) - 282 x 197 x 35 mm Carton Dimension (WxDxH) - 363 x 270 x 135 mm Net weight - 1.4kg Gross weight - 2.5k |
OS & SW | Win10 64bit |
eLITE610 (P/N: 10IE0061000X0)
10.1” widescreen WSVGA with Intel Atom® x5-E3930, Ethernet and USB 3.0 interfaces, JMobile run-time
eLITE610-NH (P/N: 10IE0061001X0)
10.1” widescreen WSVGA with Intel Atom® x5-E3930, Ethernet and USB 3.0 interfaces
