VMD 2003

8" SVGA Vehicle Mount Touch Display with Analog Camera and ultraONE+ Technology
  • 8" SVGA TFT LCD monitor

  • ultraONE+ technology

  • 10M transmission distance for video input

  • Analog camera x 4 supported

  • One cable only to connect with the system

  • Automatic/Manual brightness control

  • Remote power on/off to system

  • On screen control buttons

  • Display powered from system

  • On screen control buttons

  • Support USB 2.0 type A

  • Sunlight readable solution: 1,000cd/m² (typ.)

  • Front panel compliant with IP54

  • Line-out and Mic-in

VMD 2003 is a 8-inch high-brightness TFT LCD monitor with 4 wire resistive touch, analog cameras x 4 supported and ultraONE+ technology. ultraONE+ technology can help to transmit video and audio content up to 10 meters, which offers the best advantage to solve the cabling issue when implemented into the vehicle with limited space. Unique design to connect with analog cameras x 4 can guarantee drivers to see the video content within 1 second, beneficial for the safety a lot. Besides, there is only one cable between VMD 2003 and Nexcom telematics computer, contributing to solving the cabling issue, saving the implementation cost, and increasing the reliability. VMD 2003 also provides friendly user interface to driver with the advantage of hot keys x 5, IP54 protection and 1,000nits brightness (typ.)


Enclosure: plastic PC + AB

SMounting: support VESA mount: 75mm x 75mm

Power input: 24VDC

Power consumption: 14W

Ingress protection: front panel IP54

Dimension: 207mm (W) x 173mm (H) x 36.7mm (D) (8.15" x 6.81" x 1.44")

Weight (net): around 0.8Kg, 1.76Lb

LCD Panel

8-inch TFT LCD panel with LED backligh

t800 x 600 pixels (SVGA)

Brightness: 1,000 cd/m² (typical)

Contrast ratio: 500: 1 (typical)

Touch Screen Sensor

4-wire resistant touc

hAnti-glare coating surface

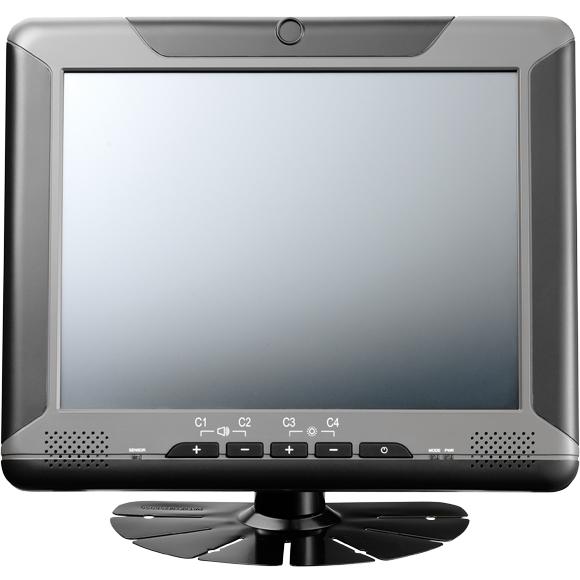

I/O Interface-FrontOn screen display buttons x 5
- Power on/off
- Brightness control (+/-)

- Volume control (+/-)

Light sensor

2 x LED indicators

2 x Built-in speakers (1.2W)

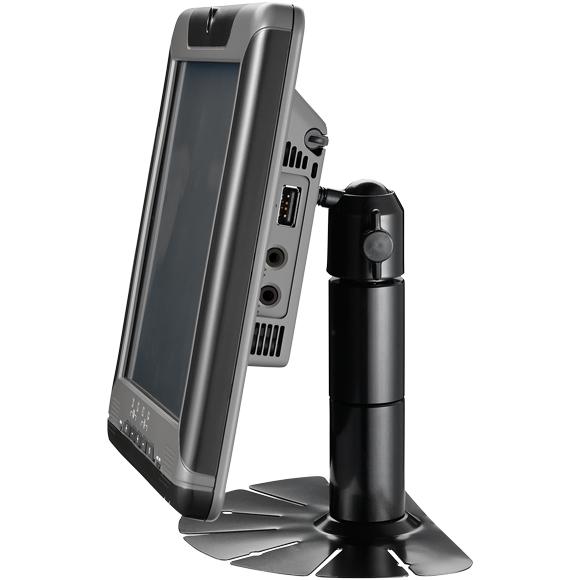

I/O Interface-Lateral

1 x USB type A for storag

e1 x Line-out (automatic detection/switch to external speaker)

1 x Mic-in

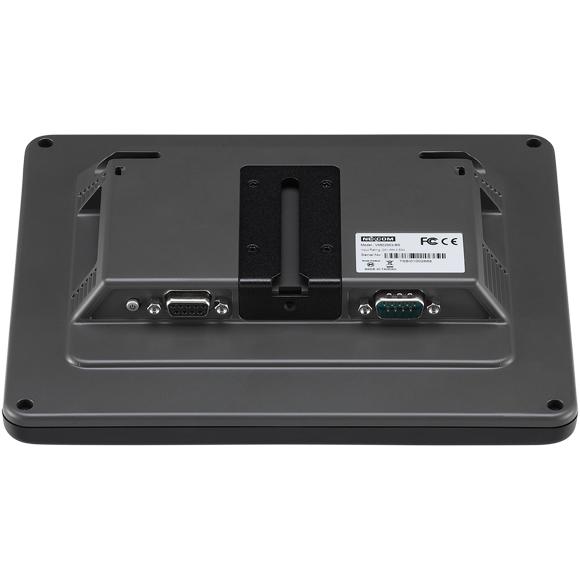

I/O Interface-Bottom

1 x Remote button to power on/off the system

1 x DB9 (male, integrating USB, power, video, audio and DO) to connect with the system

1 x DB9 (female) for analog camera x 4 (CVBS)


Operating temperature: -20°C to 60°

CStorage temperature: -30°C to 70°C

Vibration (random): 2.5g@5 ~ 500 Hz


Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4, Ground
Vehicle – Highway Truck

Storage: MIL-STD-810G, 514.6 Procedure 1, Category 4, Integrity Test


Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=40g
Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, Ground equipment=75

CE approva

lFCC Class B

VMD 2003 (P/N: 10VD0200300X0)
VMD 2003-BS 8” 800 x 600 Vehicle Display 1000nits w/CVBS x 4



BNC x 4 Cable (P/N: 6030000291X00)
30cm for VMD2003


ultraONE+ Cable (DB9)(P/N: 6030000289X00)
5M for VMD2003


ultraONE+ cable (DB9) (P/N: 6030000290X00)
10M for VMD2003
