VMD 1001

7" WVGA 车载安装式显示器,带触摸屏和VGA端口
  • 7" WVGA TFT LCD 显示器

  • 自动/手动亮度调节

  • 支持9~36V DC 电源输入

  • VGA输入接口

  • 支持USB 2.0 和读卡器

  • 阳光下可读触摸屏(可选)

  • 前面板符合IP54防护等级

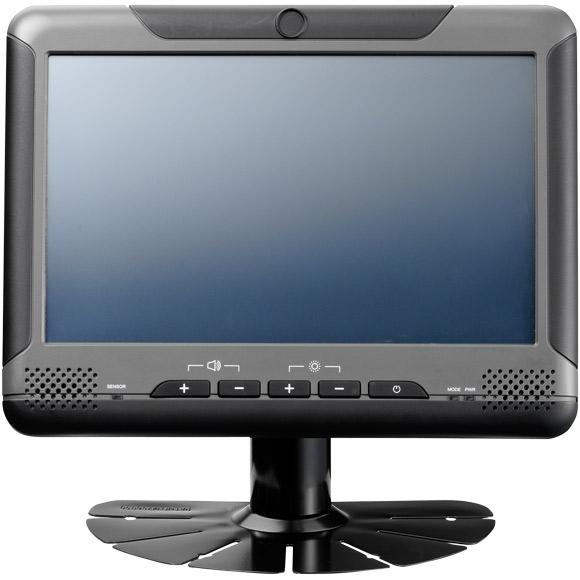

VMD 1001是一款7英寸TFT LCD显示器, 4线电阻式触摸屏。高亮度显示,并支持亮度自动调节,专为车载应用而设计。VMD 1001支持标准的VGA 接口,可与大多车载电脑连接使用。同时支持USB 和读卡器,安装简单,易于维护。前面板符合IP54工业防护等级,支持宽压电源输入,宽温操作。

LCD板

7-inch TFT LCD panel with LED backligh

t800 x 480 pixels (VGA)

Brightness: 500 cd/m2 (typical)

Contrast ratio: 600:1 (typical)

触摸屏

4-wire resistant touc

hAnti-glare coatingsurface

Transmission rate: 82 ± 3%

前面板On screen display buttons x 5
Power on/off
Volume control (+/-)

Brightness control (+/-)

Light sensor

LED indicators x 2

Built-in speakers (1W) x 2

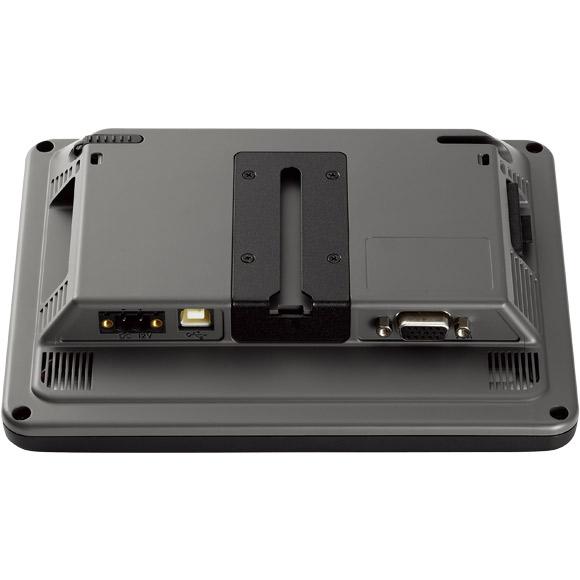

后置I/O界面

1 x VG

A1 x Line-in

1 x Line-out (automatic detection/ switch to external speaker)

2 x USB

1 X SD/ MMC/ MS card reader

9~36V wide range DC power input

可选

Sunlight-readable touch screen (4 wires resistive w/ anti-glare coating)

Support VESA mount kit

尺寸

182mm (W) x 138mm (H) x 36.3mm (D)

0.45 Kg (0.99 Lb)

运行环境

Operating temperature: -20°C to 70°

CStorage temperature: -30°C to 80°C

认证

CE approva

lFCC Class B


VMD 1001-B (P/N: 10VD0100101X0)
 7" WVGA vehicle mount display with touch screen and VGA interface



VMD 1001-BS (P/N: TBD)
 7" WVGA vehicle mount display with touch screen, VGA and sunlight readable



Bundle Accessories
VGA cable (1.5M)
USB cable (1.5M )
Metal stand kit
Cable fastener
CD-ROM x 1
