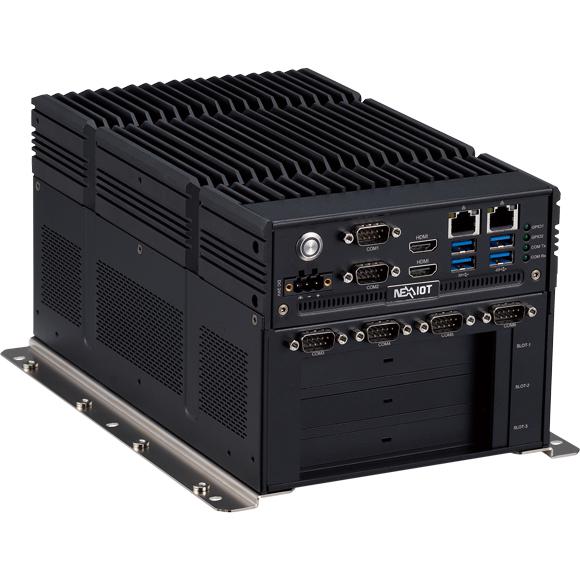

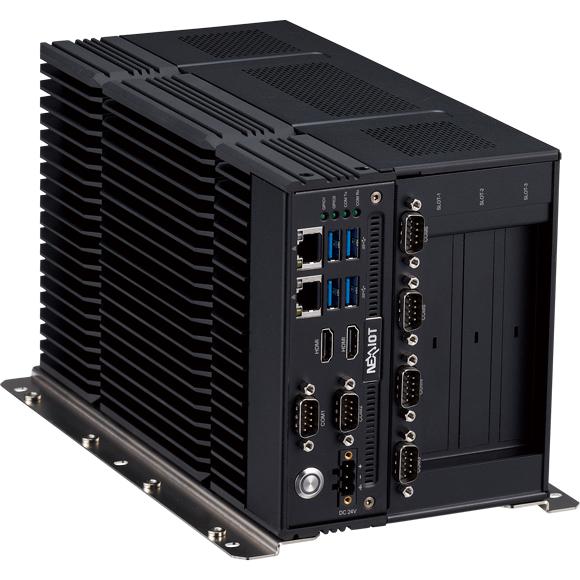

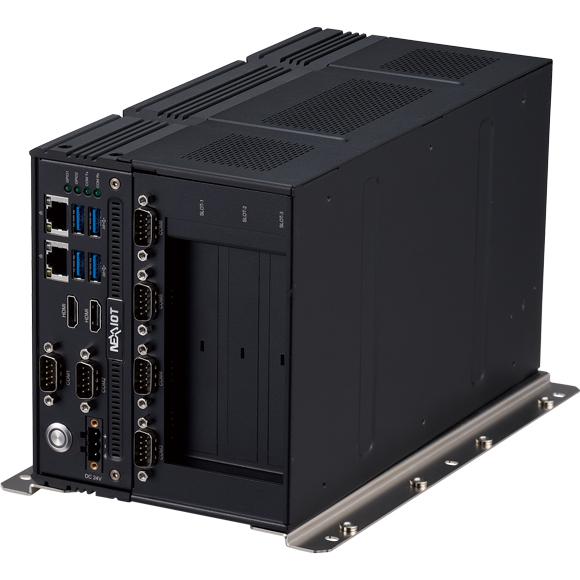

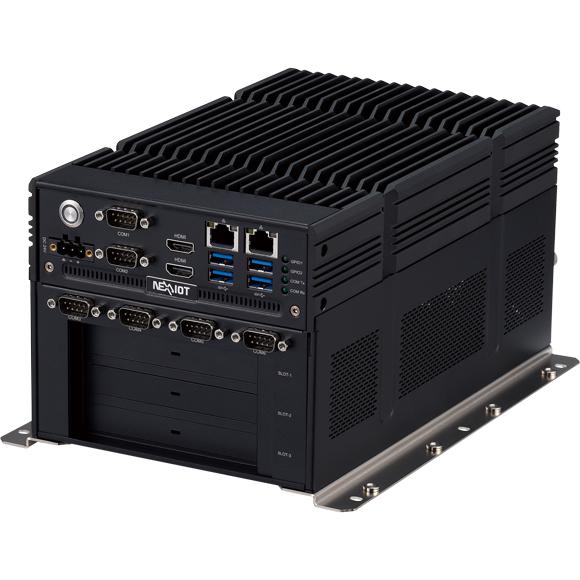

TT 300-F30/1/2/3

6, 7, 8, 9th Gen. Intel® Core™ i7/i5/i3 带扩展的无风扇系统

支持 6、7、8、9 代英特尔® 酷睿™ i7/i5/i3

英特尔® H310C PCH

2 x HDMI(双显示)

4 x USB3.0, 2 x RS232/422/485, 4 x RS232

1 x M.2 2280 Key M(存储)

1 x M.2 3042 Key B(无线连接)

1 x mSATA/miniPCIe (co-lay)

1 x PCIe x16

2 x PCIe x4

1 x SIM 卡插槽

支持+12V/24VDC输入; 支持ATX电源模式


用于工厂和生产线的最新无风扇系统,TT 系列以 300 型号以及两个变体(带 (TT300-F31) 或不带 (TT300-F01) 扩展扩展器)开始。 选择扩展器意味着您拥有众多触手可及的扩展功能,包括用于高级 AI 和预测性维护用途的显卡。


无论是否有扩展,TT 300 都是一款全能无风扇计算机,支持多种英特尔® CPU,让您能够灵活地适应较旧的 Windows 7 和较新的 Windows 10 操作系统 系统,而无需彻底改革您的生态系统。 板载 M.2 插槽非常适合存储或通信,而 TT 300 轻巧但坚固的设计确保它是工业环境的最佳选择。

CPU

Support 6, 7, 8, 9th Gen Intel® Core™ i7/i5/i3 socket type processor

- Intel® Celeron® G4900T, 2 Core, 2.9GHz, 2M Cache

- Intel® Core™ i5-8500T, 6 Core, 2.1GHz, 9M Cache

- Intel® Core™ i7-8700T, 6 Core, 2.4GHz, 12M Cache

内存1 x DDR4 2133/2400/2666 SO-DIMM socket, supports up to 16GB
显示

Dual independent display

- 2 x HDMI

前置接口状态LED

2 x GPO status

COM TX/RX LEDS

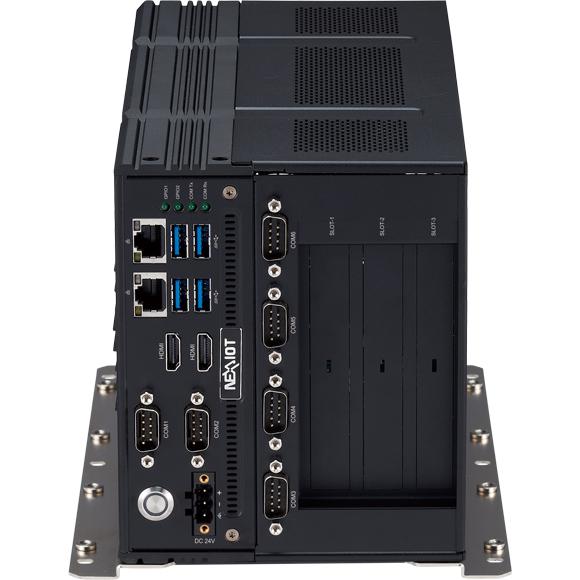

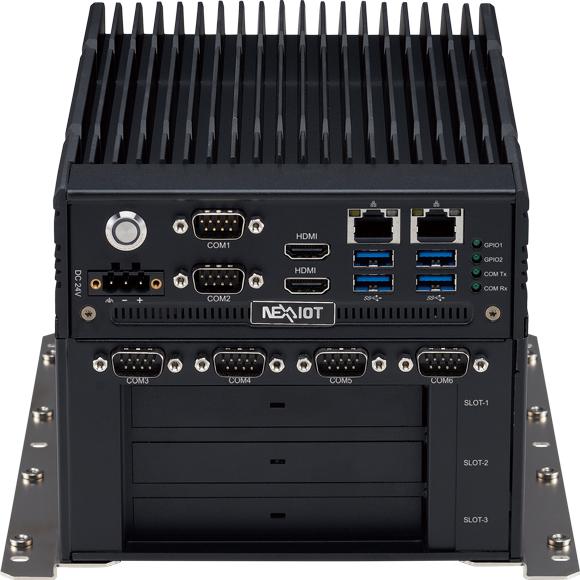

前置 I/O 接口

ATX power on/off switch

4 x USB 3.0 ports

2 x HDMI

1 x Intel® I210-IT and 1 x Intel I219LM GbE LAN ports

6 x DB9 for COM1 to COM6

- COM1/2: RS232/422/485 auto flow control

- COM3/4/5/6: RS23

后置 I/O 接口4 x Antenna holes
储存设备

2 x SATAIII 2.5" SSD

1 x M.2 2280 (Key M, PCIe x 1, SATA)

1 x M.2 2242/3042(Key B, PCIe x1, USB 2.0)

1 x mSATA (co-lay with mini-PCIe)

扩展槽

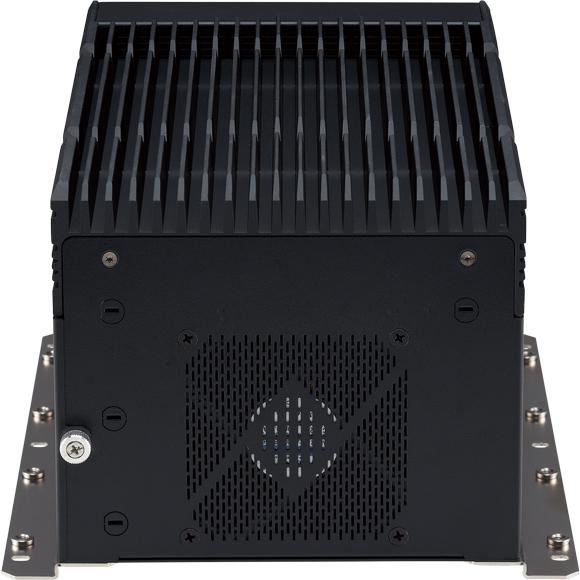

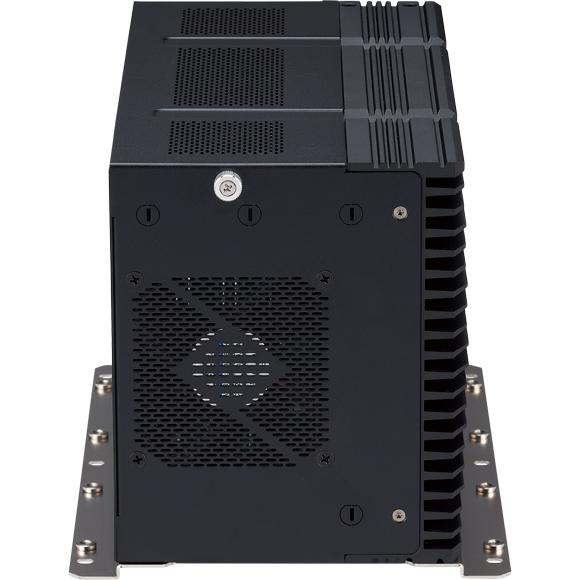

1 x Optional system fan kit

1 x PCIe x16 (with power output from riser card)

- Add-on card length: 220mm max.

- Power consumption: 150W/slot max

2 x PCIe x4 (only support PCIe x 1 speed and signal)

- Add-on card length: 169mm max.

- Power consumption: 10W/ slot max

1 x mini-PCIe socket support optional Wi-Fi/3.5G/4G LTE (co-lay with mSATA)

1 x Nano SIM Card slot

电源要求

AT/ATX power mode (default: ATX power mode)

Power input: +12/+24V DC in

Power adapter: optional AC to DC power adapter (24V DC, 120W/180W)

尺寸269(W) x 159(D) x 136(H) without wall mount bracket
材质Aluminum and metal chassis with fanless design
环境

Operating temperature: ambient with air flow: -5°C to 50° (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -20°C to 80°C

Relative humidity: 10% to 95% (non-condensing)

Shock protection:

- SSD: 20G, half sine, 11ms, IEC60068-2-27

- M.2: 50G, half sine, 11ms, IEC60068-2-27

Vibration protection with SSD & M.2 condition:

- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64

- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Vibration protection with SSD & M.2 condition:

- Random: 2Grms @ 5~500 Hz, IEC60068-2-64

- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

认证

CE approval- EN61000-6-2- EN61000-6-4

FCC Class A

操作系统Windows 10 64-bit
重量

Gross weight: 5.3kg

Net weight: 4.4kg


TT300-F30 without CPU (P/N: 10JT0030003X0)


TT300-F31 with CPU Celeron G4900T (P/N: 10JT0030000X0)


TT300-F32 with CPU i5-8500T (P/N: 10JT0030004X0)


TT300-F33 with CPU i7-8700T (P/N: 10JT0030005X0)


24V, 120W AC to DC power adapter w/o power cord (P/N: 7400120029X00)


24V, 180W AC to DC power adapter w/o power cord (P/N: P/N: 7400180012X00)
