CMC 300-F2x
Fanless system design
Intel® Xeon® E-2278GEL and 8th & 9th Gen Intel® Core™ i7/i5/i3 LGA socket type processors
2 x Gigabit Ethernet
2 x USB 2.0, 2 x USB 3.0, 1 x COM RS232/422/485
IP65 protection on the outside heatsink
1 x DVI-D display output
2 x DDR4 up to 64GB
1 x mini-PCIe for storage device
2 x Easy-access 2.5” SSD trays
Support power input 24 VDC
- Introduction
- Specification
- Order
- Download
The CMC 300-F2x industrial fanless PC series has been designed with the purpose of being installed in the plate of the control cabinet or in the rear plate of a control cabinet. This fanless PC cut-in to a suitable cut-out in the control cabinet and its heatsink is at outside the cabinet with IP65 protection. The CMC 300-F2x is up to high performance Intel® Xeon® grade CPU with two PCIe x4 expansion and two external 2.5” HDD trays. This product meets easy maintenance condition in the industrial such as wind power, charging station.
| CPU Support | Support Intel® Xeon® E-2278GEL Support 8th & 9th Gen Intel® Core™ i7/i5/i3 LGA socket type: - Intel® Core™ Core i3-8100T, i5-8500T, i7-8700T - Intel® Core™ Core i3-9100TE, i5-9500TE, i7-9700TE Support up to TDP 35W CPU |
| PCH | Intel® C246 PCH |
| Main Memory | 2x DDR4 2400/2666 SO-DIMM sockets, support up to 64GB with non-ECC and un-buffered |
| I/O Interface Status LEDs | Power SATA (SSD |
| I/O Interface | DC power input connector: 3-pin Phoenix contact terminal blocks COM: 1 x RS232/422/485 Display: 1 x DVI-D port Ethernet: 2 x RJ45 - LAN: 1 x Intel® I219-LM PHY LAN and 1 x Intel® I210-IT Gigabit LAN - Ethernet interface: 10/100/1000 Mbps - Support wake up on LAN 2 x USB 2.0 ports 2 x USB 3.0 ports 2-Pin remote power on/off 1 x Easy-access RTC battery socket |
| Storage Device | 2 x Easy-access 2.5” SSD trays 1 x mini-PCIe slot for storage |
| Expansion | Two PCIe x4 expansion slots from PCIe x8 Riser card |
| Power Requirements | DC power input: - Input voltage: 18VDC -5% to 24VDC +10%, 7.5A - Reverse polarity protection |
| Environment | Operating temperature: - 0°C to 55°C with natural convection - 0°C to 60°C with mild forced airflow Operating humidity support 10%~90% relative humidity, noncondensing Vibration protection w/ HDD condition: - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6 |
| Dimensions | Dimension: 330mm x 275mm x 116.2mm Weight: 6 KG |

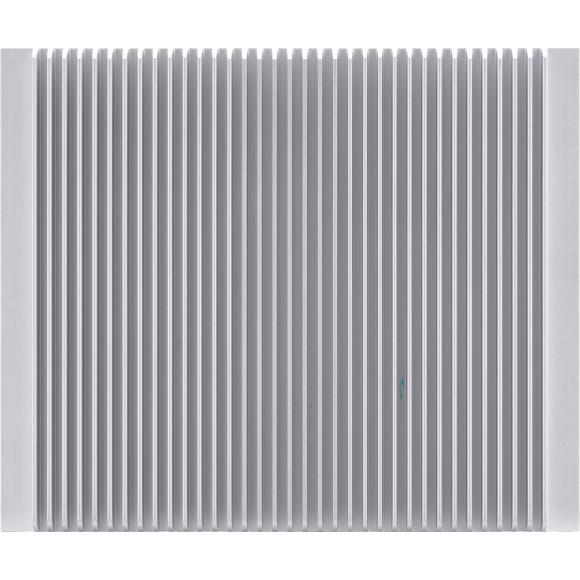

| Construction | Aluminum extrusion heat sink and iron nickel plating housing Back cover with reserved RAID card heatsink hole IP65 protection for the outside heatsink |
| Certifications | CE (EN61000-6-2/EN61000-6-4) FCC Class A |
| OS Support List | Windows 10 64-bit |
CMC 300-F22 (P/N: 10CM0030001X0)
Cabinet mount controller fanless PC with Intel® Core™ i7-9700TE 1.8GHz, and two PCIe x4 expansion slots
CMC 300-F23 (P/N: 10CM0030002X0 )
Cabinet mount controller fanless PC with Intel® Core™ i5-9500TE 2.2GHz, and two PCIe x4 expansion slots
Options
DDR4 DRAM 16GB (P/N: 72BGM16G07H00)
DDR4 DRAM 32GB (P/N: 72BGM32G02H00)
