VTC 6220-BK
英特尔Atom® x7-E3950处理器四核1.6GHz
支持3个LAN（根据要求支持2个POE
双重外部访问的2.5 "SSD托盘
内部备用电池(可选)
VGA/HDMI/(根据要求， ultraONE+支持到10米或LVDS)
支持 4 个 SIM 卡（默认类型为 3 个外部和 1 个内部）。
内置u-blox M8N GPS模块，可选择支持航位推算
内置CAN 2.0B可选SAE J1708/SAE J1939模块
双麦克风输入和线路输出，适合各种应用
通过CE/FCC/E13标志认证
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
VTC 6220-BK采用新一代英特尔Atom® x7-E3950四核1.6GHz处理器，是专门为公共交通或公共工程设计的强大产品。它允许3个局域网支持（2个POE的要求）适合大多数设备，包括无线接入点，以及IP摄像机。
我们还支持双重外部访问的2.5 "SSD托盘，以获得高存储容量。同时，VGA/HDMI/（LVDS或ultraONE+，选项）视频输出为客户提供适当的选择。板载CAN 2.0B和可选的OBD接口（SAE J1939）用于车辆诊断和驾驶员行为管理。先进的GPS接收器支持GPS/Gloness/QZSS/Galileo/Beidou，还可选配航位推算模块。
VTC 6220-BK可以在备用电池内选装，以避免停电。通过整合各种I/O端口和1 x M.2及3 x mini-PCIe插座的扩展性，VTC 6220-BK还保持了灵活性，以满足不同远程信息处理应用的需求，如信息娱乐、车队管理、调度系统和视频监控。
| CPU | Intel Atom® processor Apollo Lake E3950, 1.6GHz |
| 内存 | 1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB (default 4GB) |
| 存储 | 2 x Removable 2.5” SSD tray |
| 扩展 | 1 x Full size mini-PCIe socket (USB 2.0) 1 x M.2 slot B (USB 3.0 + USB 2.0) 2 x Full size mini-PCIe socket (USB 2.0 + PCIe |
| 功能 | 1 x U-blox NEO-M8N module (support GPS/Glonass/QZSS/Galileo/ Beidou) Built-in G-sensor TPM 2.0 |

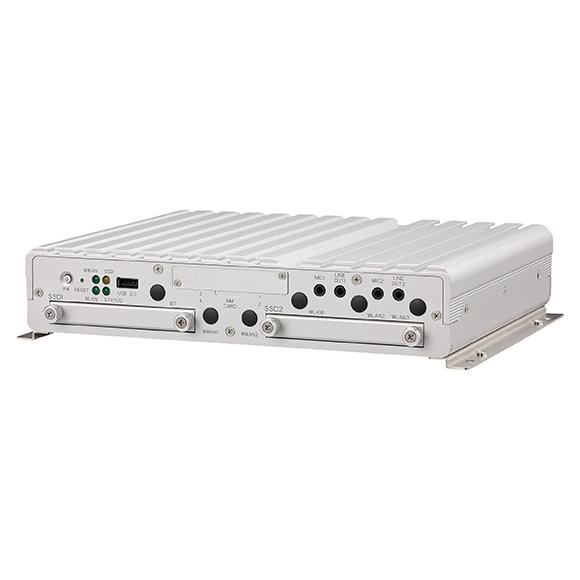

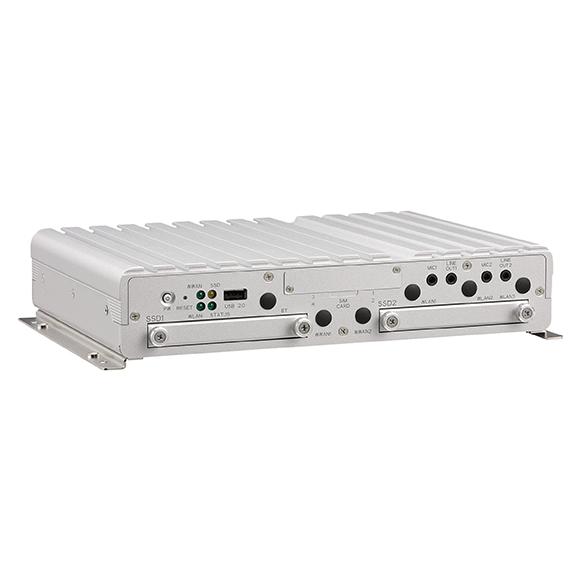

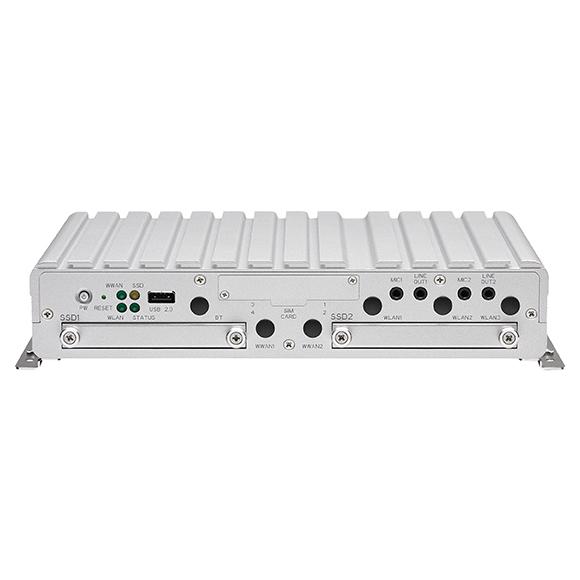

| I/O 前面板 | 1 x Power button with LED 4 x LED for WWAN, WLAN, SSD, GPS 1 x Reset button 1 x USB 2.0 type A connector 4 x SIM card support (default type is 3 x external & 1 x internal) 2 x Removable 2.5” SSD tray 2 x Mic-in and 2 x Line-out 6 x SMA type antenna hole for WWAN (2)/WLAN (3)/BT (1) |

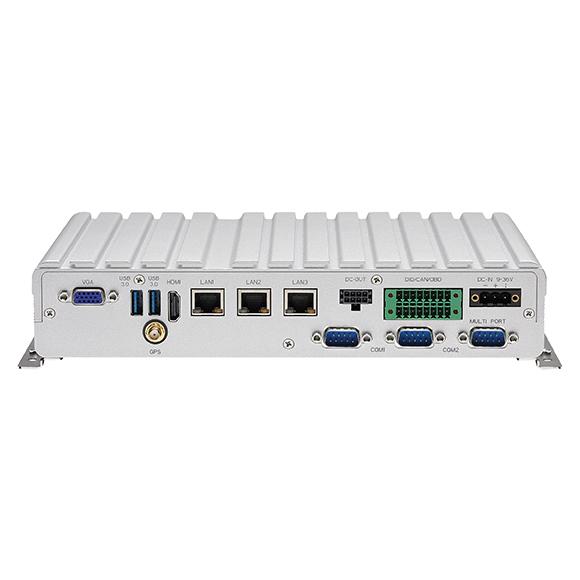

| I/O 后面板 | 1 x DB15 VGA 1 x HDMI port 1 x LVDS/ultaONE+ (by request) 1 x Phoenix connector for 9~36VDC power/GND/ignition input 1 x 4 x 2 connect for 12V/2A DC output, RS-232, power button, reset button (MDI1) and sleeping mode (MDI2) 2 x USB 3.0 type A connector 3 x RJ45 10/100/1000 fast ethernet with LED (2 x POE by request) 2 x DB-9 (male) for fully RS-232 1 x DB-9 (male) for multi-port - 2 x MDO - 1 x Speed (for DR) - 1 x Direction (for DR) - 1 x SAE J1708 or J1939 (opional VIOB-CAN-05 or CAN-06 module) 1 x 16-pin terminal block - 1 x CAN Bus 2.0B (onboard) - 1 x RS422/485 - 4 x DI, 4 x DO 1 x Antenna hole for GPS |
| 电源 | Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Status of ignition and low voltage can be detected by software Support S3/S4 suspend mode |
| 系统 | Windows 10 YOCTO (by request) |
| 基本信息 | 259mm (W) x 196mm (D) x 50mm (H) (10.20” x 7.72” x 1.97”) Weight: 1.7kg |
| 环境 | Temperature - Operating temperatures: -40°C~70°C (w/ industrial SSD) with air flow - Storage temperatures: -40°C~85°C - Damp heat test per EN60068-2-30 Humidity - IEC60068-2-3, damp heat steady state test, 40C, 95%, 48Hrs Vibration - IEC 60068-2-64, 2G for SSD - Operating: MIL-STD-810G, 514.6C procedure 1, category 4 - Storage: MIL-STD-810G, 514.6E procedure 1, category 24 Shock (SSD) - MIL-STD-810G, 516.6 procedure I, trucks and semi-trailers=40g - Crash hazard: procedure V, ground equipment=75g |
| 认证 | CE FCC Class A E13 Mark LVD (EN 62368-1) |
VTC 6220-BK (P/N: 10V00622000X0)
Intel Atom® processor Apollo Lake E3950, 1.6GHz with 4GB DDR3L SO-DIMM, u-blox M8N GPS module, VGA/HDMI output, 3 x LAN, 2 x RS-232 (full) & 1 x RS-422/485, 1 x CAN 2.0B, 4 x DI & 4 x DO, 1 x USB 2.0 & 2 x USB 3.0, 2 x Line-out/Mic-in
