VTC 6210-BK
Intel® Atom™ 处理器，四核，E3845, 1.91GHz
3个SIM 卡 + 双 WWAN 模块支持
内置 U-blox M8N GPS, 可选 Dead Reckoning 支持
内置 CAN Bus 2.0B.可选 CAN/OBDII 模块 (CAN Bus 2.0B 或 OBDII SAE J1939)
唤醒 RTC/SMS通过WWAN 模块
符合 MIL-STD-810G
4 x mini-PCIe插槽扩展
可编程 8 x GPIO
语音通讯通过WWAN 模块
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
VTC 6210基于Intel® Core™ 四核处理器 E3845 (1.91GHz), 是特别为严苛的车内环境设计的。允许VTC 6210严格遵守 MIL-STD-810G 军用标准，在强固，无风扇，紧凑型机制中。VTC 6210 通过内置 CAN BUS 2.0B 接口，在汽车与计算机之间，提供完整沟通能力。 可选OBDII接口(J1939)也可用于车辆诊断。VTC 6210 具备丰富的PAN, WLAN 和 WWAN 无线连接。双 SIM 卡支持，VTC 6210允许三个SIM卡通过软件互为备份，以支持更好的连接质量。此外, 3个SIM 卡和双 WWAN 模块可以提供一个更快数据传输速率的带宽。不仅支持数据传输，VTC 6210 也支持双向语音通讯。配置智能电源管理，VTC 6210可以唤醒引擎, RTC 定时器或SMS远程消息。通过整合多种 I/O 端口4 x mini-PCIe 插槽扩展能力，VTC 6210 保持灵活性以满足不同车辆的应用需求，如信息娱乐系统，调度系统和视频监控。
| CPU | Intel® Atom™ processor quad core E3845, 1.91GHz |
| 内存 | 1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB. Default 2GB |
| 存储 | 1 x 2.5" SSD/HDD SATA 2.0 (externally accessible, optional lockable storage available) 1 x CFast (externally accessible) |
| 扩展 | 1 x Full size mini-PCIe socket (USB 2.0) 1 x Full size mini-PCIe socket (USB 2.0) 1 x Full size mini-PCIe socket (USB 2.0 + PCIe) 1 x Half size mini-PCIe socket (USB 2.0 + PCIe) |
| 功能 | 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning Built-in G-sensor |

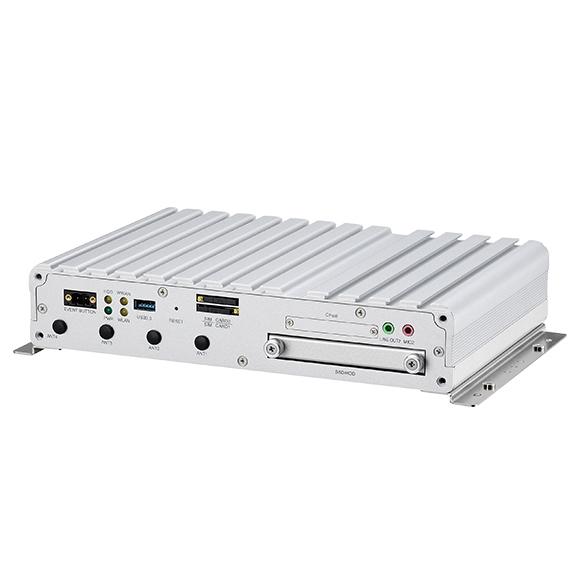

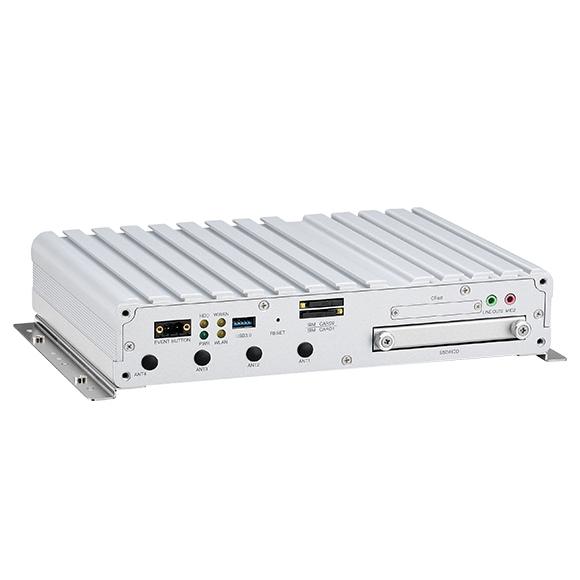

| I/O 前面板接口 | 2 x Externally accessible SIM card socket (selectable) 1 x Phone jack 3.5mm for 1 x Mic-in 1 x Phone jack 3.5mm for 1 x Line-out 1 x Externally accessible 2.5" SATA 2.0 SSD/HDD tray 1 x Externally accessible CFast card socket with cover 1 x Event button (trigger type) 1 x Reset button 1 x Type A USB 3.0 compliant host, supporting system boot up 4 x Antenna hole for WWAN/WLAN/BT |

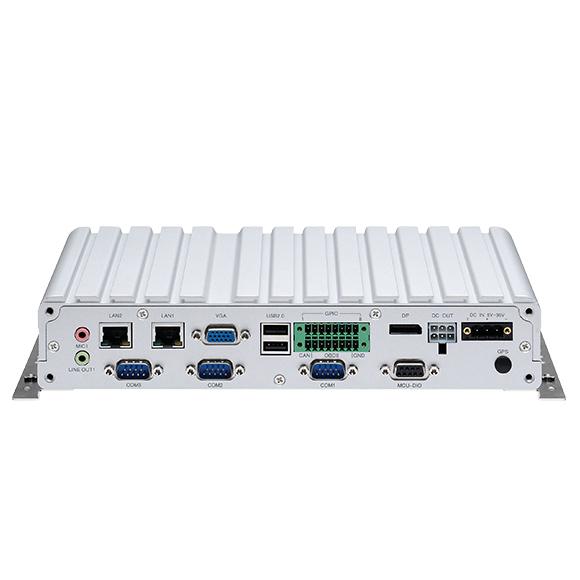

| I/O 后面板接口 | 1 x 9 ~ 36VDC input with ignition and 19W typical power consumption 2 x Type A USB 2.0 compliant host, supporting system boot up 2 x RJ45 10/100/1000 Fast Ethernet with LED 1 x Phone jack 3.5mm for 1 x Mic-in 1 x Phone jack 3.5mm for 1 x Line-out 1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz 1 x DP port, resolution up to 2560 x 1600 @60H 1 x Antenna hole for GPS 2 x DB-9 RS-232 (RI/12V selectable) 1 x DB-9 RS-422/485 1 x DB-9 for CAN 2.0B (optional CAN Bus 2.0B mini-PCIe card), 2 x MCU-DI and 2 x MCU-DO 1 x 16-pin terminal block - 1 x CAN Bus 2.0B (on board) - 1 x optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939) - 8 x GPIO (Programmable Digital Input or optional isolation) Input Voltage (internal type): 5VDC TTL (default) Input Voltage (source type): 3 ~ 12VDC (Programmable digital input and digital output) Digital output (sink type): 5VDC TTL (default), max current: 20mA Digital output (source type): 3 ~ 24VDC, max current: 150mA 1 x 12VDC output (2A), SM Bus |
| 电源管理 | Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Status of ignition and low voltage can be detected by software Support S3/S4 suspend mode |
| 操作系统 | Windows 8, WES8 Windows 7, WES7 Fedora Wind River® Intelligent Device Platfrom XT 2.0 |
| 体积 | 260mm (W) x 176mm (D) x 50mm (H) (10.24" x 6.93" x 1.97") Weight: 2.1kg |
| 环境 | Operating temperatures: -30°C to 70°C (w/ industrial SSD) with air flow -20°C to 50°C (w/ commercial HDD) with air flow Storage temperatures: -35°C to 85°C Relative humidity: 10% to 90% (non-condensing) Vibration (random): 1g@5 ~ 500 Hz (in operation, HDD), 2g@5 ~ 500 Hz (in operation, SSD) Vibration (SSD/HDD): Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD/HDD): Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
| 通过认证 | CE approval FCC Class A E13 Mar |
VTC 6210-BK (P/N: 10V00621000X0)
Intel® Atom™ processor E3845 1.91GHz CPU, 2GB DDR3L SO-DIMM, VGA/DP output, 2 LAN, 2 x RS-232, 1 x RS-422/485, 8 x GPIO, 3 x USB, 12VDC output
