nROK 6221

Intel Atom® E3950 Fanless Rolling Stock Computer with EN50155

Intel Atom® processor quad core E3950, up to 2.0GHz

Six SIM cards + three WWAN modules support

Built-in u-blox-M8N GPS

Built-in CAN Bus 2.0B

1 x External storage (compatible with 15mm disk)

EN 50155, class OT4 conformity

3 x mini-PCIe + 2 x M.2 socket expansion

Wide voltage input 9~48 VDC

1 x DB9 for 1 x Mic-in, 2 x Line-out

Three video outputs, two VGA and one HDMI


nROK 6221, based on Intel® Core™ quad core processor E3950 (up to 2.0GHz), is specifically comply with stringent EN50155 standard in rugged, fanless and compact mechanism. nROK 6221 provides complete communication capability between train and computer with build-in CAN Bus 2.0B interface. nROK 6221 features rich WLAN and WWAN wireless connectivity. With dual SIM cards per modem support, nROK 6221 allows six SIM cards backup each other for a better connectivity quality or extra bandwidth by software. In addition, six SIM cards and three WWAN modules architecture can increase the bandwidth for a faster data transmission speed. Equipped with intelligent power management, nROK 6221 can be waked on by ignition, RTC timer or SMS message remotely. By integrating the variety of I/O ports, 3 x mini-PCIe, 2 x M.2 sockets expansibility, up to three screens via VGA and HDMI connections, nROK 6221 keeps the flexibility to meet the demand for different rolling stock applications, such as infotainment, dispatching system, cellular/wireless network connectivity, and video surveillance. The design of mini-PCIe slots x 3 can solve the potential request from the market when needed.

CPUIntel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core
Memory1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. default 4GB
Video Output

Chipset Intel® HD graphics 505

1 x HDMI 1.4b up to 4096 x 2160 @30Hz

2 x VGA up to 1920 x 1200 @60Hz

Storage

1 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive)

1 x CFast (externally accessible), optional mSATA

Expansion

1 x Full size mini-PCIe socket (USB 2.0) for LTE module with 2 x external SIM

1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0), BOM optional full size mini-PCIe socket (USB 2.0) for LTE module with 2 x external SIM

1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0)

1 x M.2 3042 Key B socket (USB 2.0, USB 3.0) for LTE/5G NR module with 2 x external SIM

1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.0, PCIe 2.0 (BOM optional)) for LTE/5G NR module with 2 x external SIM

GNSS and On Board Sensor

1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou

Optional M8U modules with dead reckoning available

G Sensor (3-axis, 10-bit resolution)

LAN2-Port LAN, 10/100/1000 Mbps I210-IT GbE, BOM optional 3-port LAN
SecurityTPM 2.0: Infineon SLB9665TT2.0FW5.62 (BOM optional)

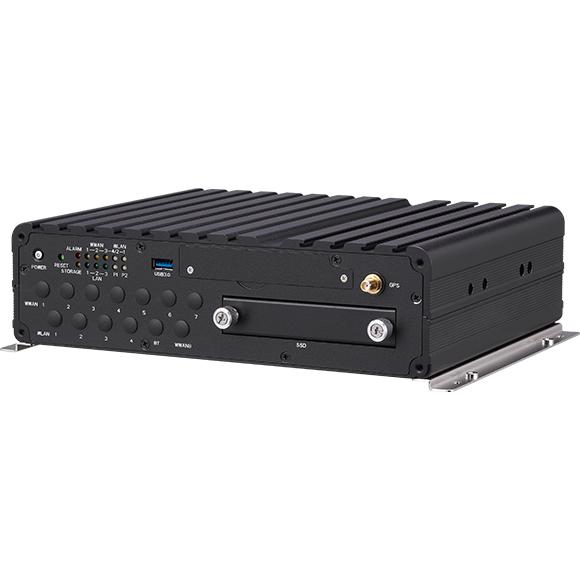

I/O Interface-Front

12 x LED indicators (including 2 x programmable LED)

6 x Externally accessible SIM card sockets with cover

1 x 2.5" removable SSD tray

1 x Externally accessible CFast card socket with cover

1 x Reset button

1 x Power button

1 x USB 3.0 type A (5V/0.9A)

14 x SMA antenna

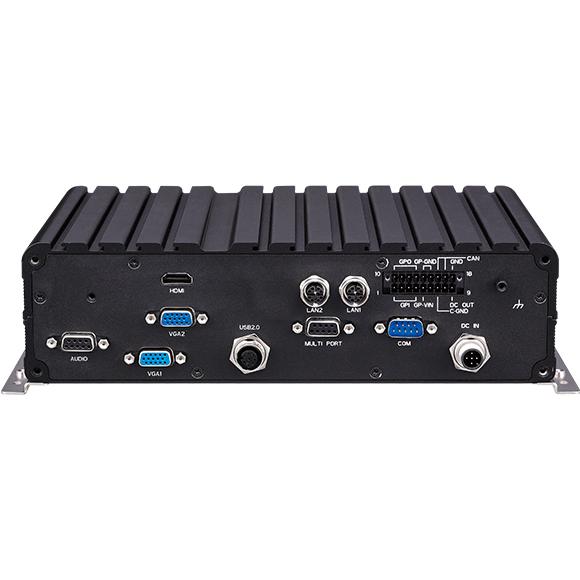

I/O Interface-Rear

1 x Circle type DC input with ignition

- 24/36 VDC (9~48 VDC), non-isolation

1 x M12 with two USB 2.0

2 x M12 X-coded LAN port, 10/100/1000 Mbps

1 x DB9 (AUDIO), female for 1 x Mic-in, 2 x Line-out

2 x VGA

1 x HDMI 1.4b

1 x DB9 (COM) full RS232 (isolation)

1 x DB9 (MULTI PORT) for RS232 TX/RX, RS485 (all w/ isolation), USB 2.0

1 x 18-pin terminal block

- 1 x CAN Bus 2.0B (on board)

- 4 x DI with isolation

- 4 x DO with isolation

- Vin, GND for GPIO

Power Management & Software Support

Power input 24/36 VDC w/o isolation

Selectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/off delay time by software

Support S3/S4 suspend mode

10~255 seconds WDT support, setup by software

SDK (Windows/Linux) including utility and sample code

Operating SystemWindows 10/Linux
Dimensions260mm (W) x 196mm (D) x 70mm (H) (10.24" x 7.79" x 2.75")
Weight2.8kg
Environment

Operating temperatures

- EN 50155, class OT4 (-40~70°C), 85°C for 10 minutes (w/ industrial SSD) with air flow

Storage temperatures: -40°C to 80°C

Relative humidity: 10% to 90% (non-condensing)

Vibration (random)

- 2g@5~500 Hz (in operation, SSD)

Vibration (SSD)

- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure

- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test

Shock (SSD)

- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g

- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75

Standards/Certifications

CE

FCC Class A

EN 50155: 2017

- Ambient temperature EN 50155, Class OT4 (-40~70°C), 85°C for 10 minutes

- Interruptions of voltage supply class S1

- Supply change over class C1, C2

- EMC EN 50121-3-2: 2016

- Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30

- Shock and vibration IEC 61373 Class B

- Protective coating class PC1 (PC2, by request)

EN 45545-2: 2013+A1:2015


nROK 6221-A (P/N: 10A00622100X0)

Intel Atom® processor E3950 up to 2.0GHz CPU, 4GB DDR3L SO-DIMM, DC input 24/36 VDC w/o isolation, 2 x VGA, 1 x HDMI, 2 x LAN, 2 x RS232, 1 x RS485, 4 x DI, 4 x DO, 4 x USB
