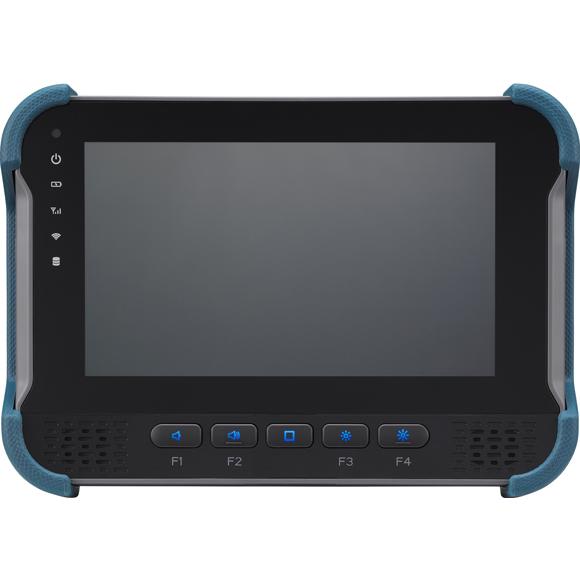

VMC 2020
8英寸TFT液晶显示器,带投射式电容触摸屏
具有宽视角的IPS液晶显示器,分辨率为1280 x 720
触摸屏盖板厚度为3毫米,具有IK08保护功能
阳光下可读能力:1,000nits LCD亮度
用于模拟摄像机的CVBS输入×4(可选)
隔离式CANBus 2.0 x 1
后备电池可运行约15分钟(可选)
从9V~60V直流电输入的宽范围直流电输入
完全IP65防水
触摸屏可在各种手套下操作(即使有水溢出)
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
VMC 2020,8英寸一体式坚固的车载电脑,是为仓库、港口、物流和材料处理市场设计的。它在Windows和Linux平台上实现了最新的Intel Atom® E3950处理器,并提供完整的IP65和IK08。
VMC 2020能够支持模拟摄像机x 4(可选),用于安全目的,并在不到1秒的时间内看到视频内容。可选的后备电池可以帮助在汽车电源电池停止供应时备份数据。
1,000nits的LCD面板保证了在阳光下的可读性。宽范围的电源输入(9~60VDC)可以让VMC 2020能够在各种设施、叉车和车辆上安装。迷你PCIe插槽x 2和M.2插槽x 1的设计,支持WLAN/SATA/采集卡和WWAN无线连接。
LCD 面板 | 8-inch TFT LCD panel with LED backlight 1280 x 720 pixels (HD) Brightness: 1000 cd/m² (typical) Viewing angle: 170° (H)/170°(V) Contrast ratio: 1000:1 (typical) |
触摸传感器 | Projected capacitive Anti-glare coating surface Transmission rate: 80 ± 3% |
CPU | Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core |
内存 | 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB |
存储 | 1 x eMMC 64GB (BOM optional 128GB) 1 x mSATA (occupied mini-PCIe slot) |
扩展 | 1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0) 1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0/SATA 3.0) 1 x M.2 3042/3050/3052 Key B socket (USB2.0, USB 3.0/PCIe 2.0 (BOM optional)) for LTE/5G NR module with 2 x external Nano-SIM slot |
导航与传感器 | 1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou Optional M8U modules with dead reckoning available G Sensor (3-axis, 10-bit resolution) |
LAN | 1-port LAN, 10/100/1000 Mbps Intel® I210-IT GbE |
安全 | TPM 2.0: Infineon SLB9665TT2.0FW5.62 (BOM optional) |

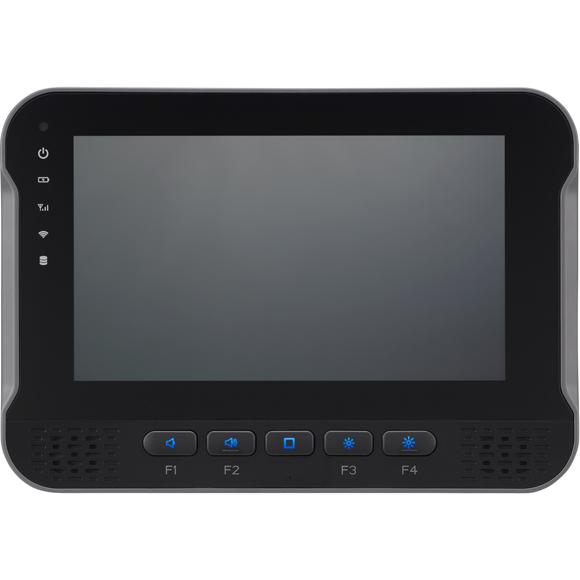

I/O 前面板 | Volume control keys (+/-) with LED Brightness control keys (+/-) with LED F1~F4 programmable function keys with LED 1 x Shift key with LED 1 x Light sensor 5 x LED indicators (power, battery, WWAN, WLAN, storage) 2 x Built-in 2W speakers 1 x Built-in Mic |

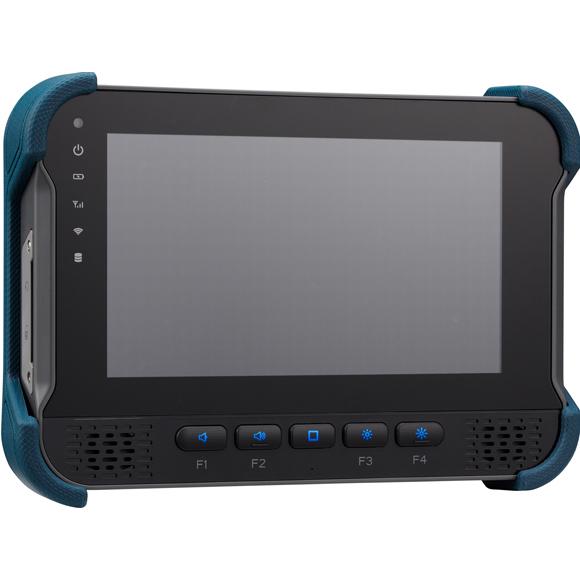

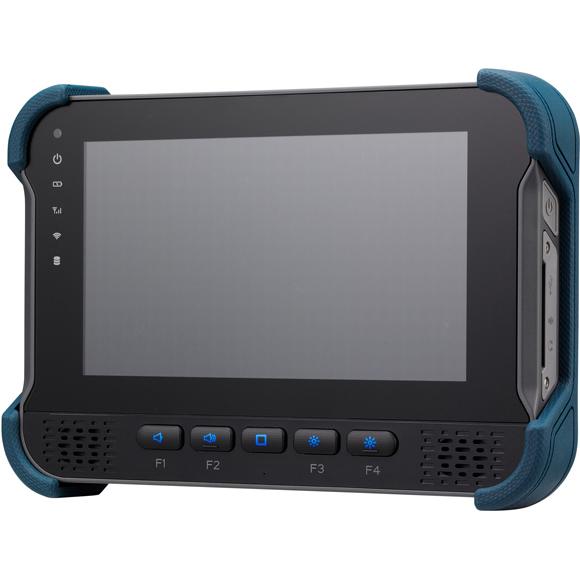

I/O 侧面板 | Left Side - 1 x System reset button w/ cover - 2 x Nano SIM slot w/ cover Right Side - 1 x Power button - 1 x USB 3.0 type A connector w/ cover - 1 x Mic-in, 1 x Line-out w/ cover |

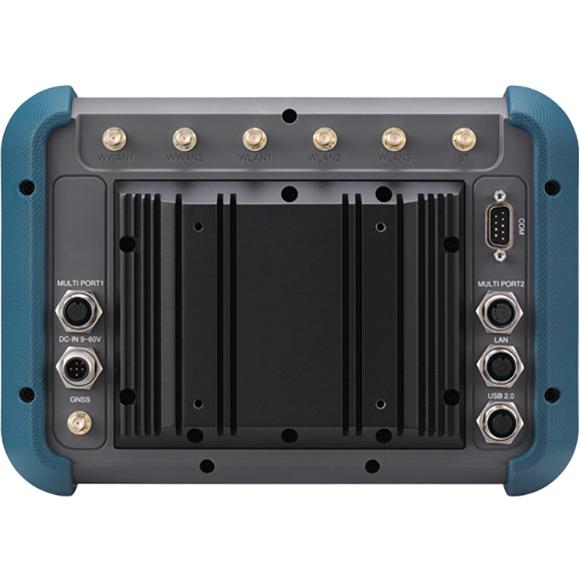

I/O 后面板 | 1 x Full RS232 (COM, w/ 5VDC, 12VDC) 1 x Power connector, M12 A-coded 5-pin 1 x 10/100/1000 Mbps LAN, M12 A-coded 1 x M12 A-coded 8pin for 2 x USB 2.0 1 x M12 (MULTI PORT1, A-coded 8-pin) - 2 x GPI - 2 x GPO - 1 x Isolated CANBus 2.0B 1 x M12 (MULTI PORT2, A-coded 12-pin) - 1 x RS232 (Tx, Rx) - 1 x RS232 (Tx, Rx)/RS422/RS485 - PWM (speed)+direction+GND, optional 4 x composite video input/ CAN-06 2 x SMA connector for WWAN 3 x SMA connector for WLAN 1 x SMA connector for Bluetooth 1 x SMA connector for GNSS |
基本信息 | Cooling system: fanless Enclosure: plastic IK Rating: IK08 (housing and touch screen) Mounting: VESA 75 Ingress protection: complete IP65 Dimension: 250 x 179 x 67.5 mm Weight: 2.6 kg |
电源 | 9V~60V DC in Back-up battery for approx. 15 min of operation (optional) Reverse protection/over voltage protection/under voltage protection Ignition on/off control & programmable on/off delay timing Wake up by LAN, SMS, RTC and ignition |
RFID模块(可选,占用1个USB2.0) | 13.56-MHz RFID/contactless standard protocols Compatibles with all major global secured baseband ISO standards including ISO14443 Type A, MIFARE classic cards, and Smartlabel ISO15693 |
环境 | Operating temperatures: Ambient with air -30°C to 60°C, ambient with air and without battery Storage temperatures: -40°C to 80°C Relative humidity: 10% to 90% (non-condensing) Vibration (random) - 2g@5~500 Hz (in operation) Vibration - Operating: MIL-STD-810G, 514.6 Procedure 1,Category 4 - Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24 Shock - Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers = 40g - Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment = 75g |
系统 | Windows 10 Linux (Kernel 4.x) |
认证 | CE/FCC class B/E13/IK08 |
VMC 2020-PC1 (P/N: 10VC0202000X0)
8" rugged vehicle mount computer with Intel Atom® E3950 up to 2.0GHz CPU, projected capacitive touch screen and complete IP65, 4GB DDR3L SO-DIMM, DC input 9~60 VDC
