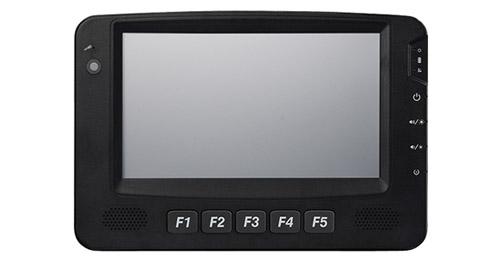

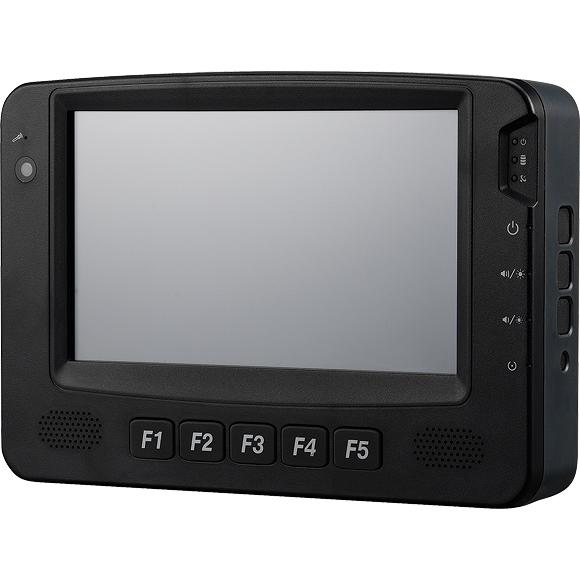

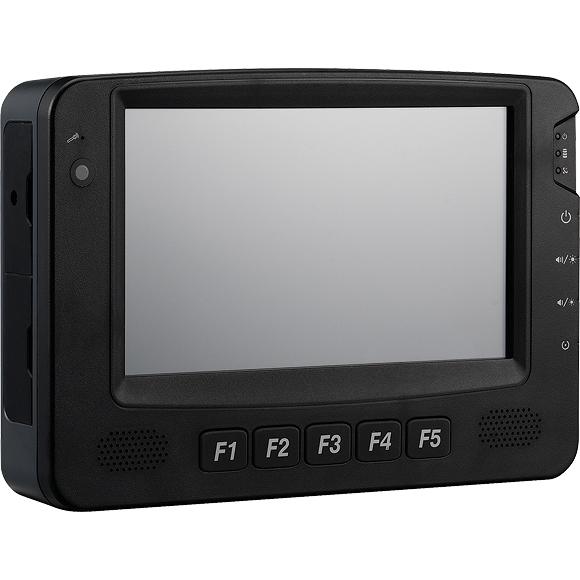

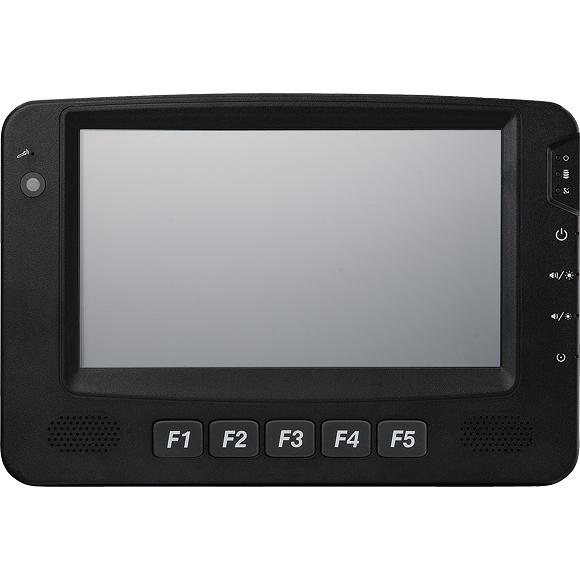

VMC 110/111

采用ARM® Cortex®-A9平台的7英寸移动数据终端

7英寸1024 x 600 TFT液晶显示器,带电阻式触摸屏

ARM® Cortex®-A9双核处理器,频率为1GHz

结构紧凑,无风扇设计

屏幕上的F1 ~ F5可编程功能键

Linux和安卓操作系统

支持GPS/Wi-Fi/3G/LTE(包括航位推算)

iButton & RFID用于身份ID识别

双CAN总线2.0B

OBDII(ISO15765-4)/SAE J1939协议

宽范围的直流输入,从9 ~ 36V

用于在安卓平台上演示功能的软件工具

CE/FCC/Emark


VMC 110/111是一款7英寸一体式移动数据终端,主要针对车队管理、运输和物流应用。其紧凑、坚固的设计和灵活的扩展能力,完美地满足了驾驶室的有限空间和无线通信的苛刻要求。在无线通信方面,VMC110/111能够支持GPS、航位推算、Wifi、3G和LTE。


此外,VMC110/111可以在安卓和Linux操作系统上工作,这也是未来操作系统的主流。7英寸1024 x 600分辨率,500尼特亮度和电阻式触摸适用于驾驶室。丰富的I/O支持,如2 x CAN总线2.0B、OBDII/J1939、RS232、RS485、USB、GPIO、LAN...可以帮助获得实时的车辆信息,并与不同的传感器或设备连接,如售票机、RFID扫描仪..... VMC 110/111采用安卓和Linux平台,无疑适合应用于港口、运输和物流领域的各种卡车、叉车、吊车...


LCD 面板

7-inch TFT LCD Panel with LED Backlight

1024 x 600 pixels

Brightness: 500 cd/m² (typical)

Contrast ratio: 800:1 (typical)

Viewing angle: 150(H), 145(V)

触摸传感器

4-wire resistant touch

Anti-glare coating surface

Transmission rate: 80% ± 3%

CPU & 芯片

ARM® Cortex®-A9 Processor with 1GHz frequency

Freescale Dual Core

内存Onboard DDR3L 2GB
存储

1 x Micro SDHC Slot

EMMC: 8G on board

扩展

1 x Half-size mini-PCIe (PCIe + USB) for WLAN

1 x Full-size mini-PCIe (USB + UART) for WWAN

OBDII: ISO15765-4 & SAE J1939 (Default: None, BOM optional)

RFID (optional)

I/O 前面板

F1 ~ F5 programmable function keys

Light Sensor

Internal Mic-in

2 x Built-in 2W speakers

3 x LED indicators (Power, Storage and WWAN)

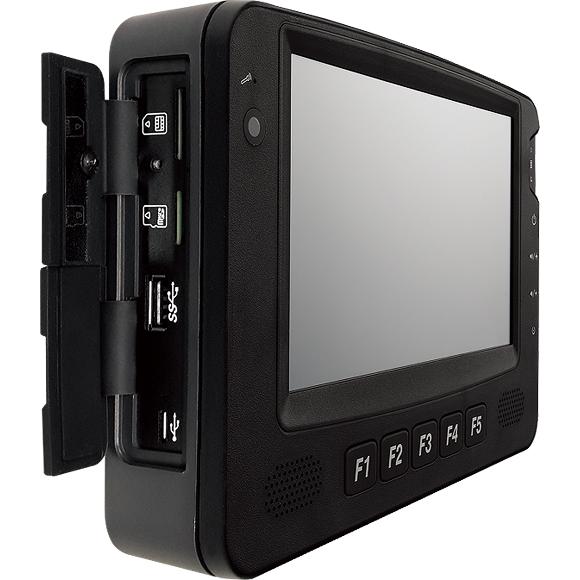

I/O 侧面板

Right side

- 1 x SIM card slot

- 1 x Micro SD card slot

- 1 x USB 2.0 type A

- 1 x micro USB OTG for maintenance

Left side

- 1 x Power button

- 1 x Volume up/down

- 1 x Brightness up/down

- 1 x System reset button

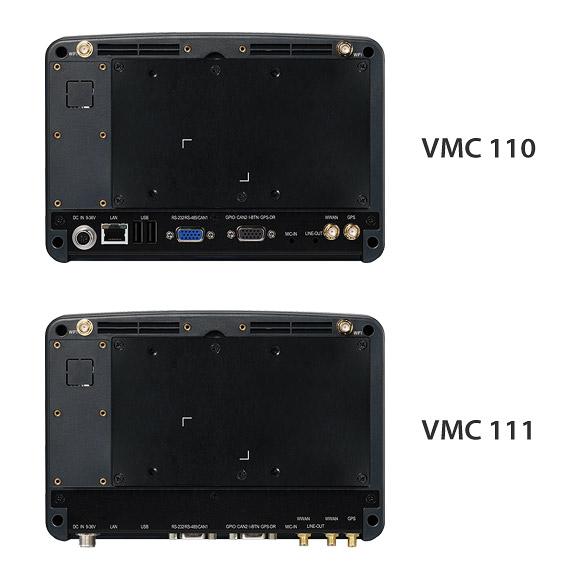

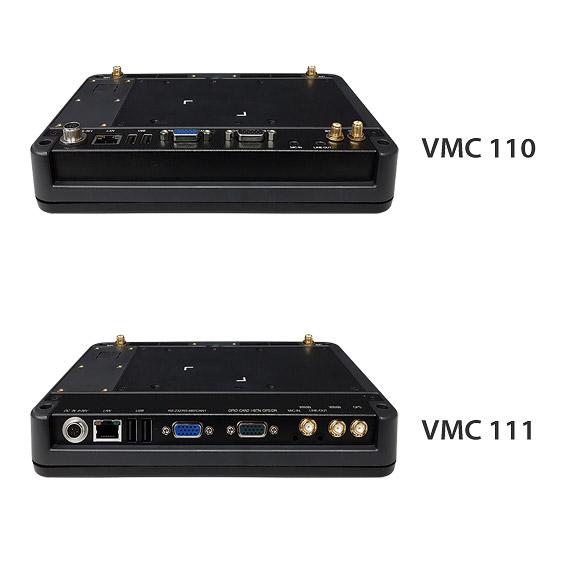

I/O 底部面板

1 x lockable power input with ignition

1 x RJ45 for LAN

2 x USB 2.0 Type A

- DB-15 connector

- Full RS-232

- RS-232/485

- CAN1 2.0B

DB-15 connector

- GPI x 3

Sink type: 5VDC TTL (default)

Source type: 3 ~ 28VDC

- GPO x 3

Sink type: 5VDC TTL (default), max current: 20mA

Source type: 3 ~ 28VDC, max. current: 150mA

- GPS DR (Speed, direction, GND)

- CAN2 2.0B (Default) & (BOM optonal for OBD II (ISO 15765-4 & J1939))

- iButton

1 x Mic-in

1 x Line-out

3 x Antenna on I/O

- Rear: 1 x GPS, 1 x WWAN

- Bottom: 1 x GPS, 2 x WWAN

2 x Antenna on housing for Wi-Fi

基本信息

Cooling System: Fanless

Enclosure: Plastic PC/ABS + Metal heat-sink

Mounting: VESA 75/100 & Desktop mounting

Ingress Protection: Front panel IP54

Dimension: 212.9mm (W) x 144.97mm (H) x 40mm (D)(8.4" x 5.7" x 1.6")

Weight: 1.3kg

电源

9V~36V DC input

Selectable boot-up & shut-down voltage

Ignition: 8-level delay time on/off

Reverse protection/over-voltage protection/low-voltage protection

Wake up by SMS/RTC/ignition

系统

Linux YOCTO 2.0 by Request

Android 5.1

环境

Operating temperatures: Ambient with air -20°C to 70°C

Storage temperatures: -30°C to 80°C

Relative humidity: 10% to 90% (non-condensing)

Vibration

Vibration test: IEC 60068-2-64, 2.5G

Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4

Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24

Shock

MIL-STD-810G, 516.6 Procedure 1, trucks and semi-trailers=40g

Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment=75

认证CE/FCC class B/E-Mark


VMC 110 (P/N: 10VC0110005X0)

VMC 110-D1A 7" I/O on the back w/i.MX6 Dual Lite, 2GB, 8G EMMC, 4w T/S, Android


VMC 111 (P/N: 10VC0111000X0)

VMC 111-D1A 7" I/O on the bottom w/i.MX6 Dual Lite, 2GB, 8G EMMC, 4w T/S, Android
