NEX 614B
Intel® 7th/6th Generation Core™ i7/i5/i3, LGA1151 socket processor,
max. 65WTDPs, LGA1511, H110
Support two DDR4 SO-DIMM socket
Support multiple display from two HDMI, LVDS
2 x SATA III, 2 x GbE LAN, 2 x COM, 4 x USB 3.0, 4 x USB 2.0, 8-bit DIO,
HD Audio, 1 x PCIe 2.0 x1, 2 x mini-PCIe
DC input +12V
Low profile system
Optional: Wi-Fi module/TPM module
- Introduction
- Specification
- Order
- Download

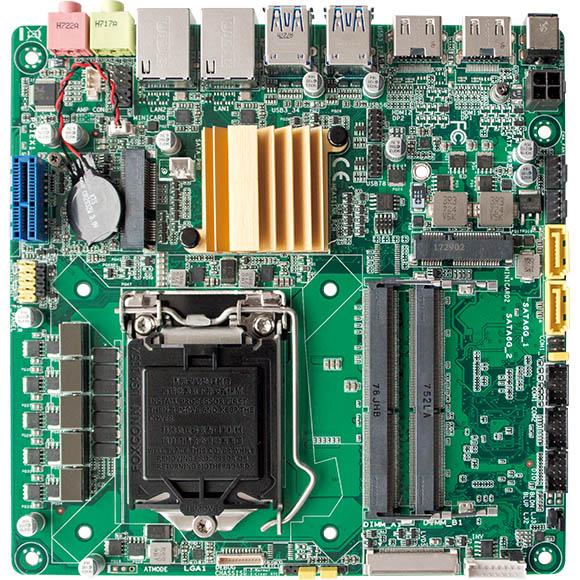

NEX 614B is Mini-ITX PC based on Intel® 7th/6th Generation Core™ i7/i5/i3, LGA1151 socket processor (codenamed “Skylake/Kabylake”) to support 65W CPU. NEX 614B operates temperature range from 0°C to 60°C. This is aimed at embedded applications for outdoor or semi-outdoor environment. Such as kiosk, small smart equipment, outdoor systems installed in harsh environments, home automation and thin clients…etc.
NEX 614B supports a maximum memory of 32GB DDR4 SDRAM. Also, it offers display outputs of HDMI with 4K/2K@30Hz, in order to provide the flexibility of supporting a range of peripherals and high resolution.
| CPU Support | Intel® 7th/6th Generation Core™ i7/i5/i3, LGA1151 socket processor, max. 65W TDPs |
| Display | 2 x HDMI connector (resolution up to 4096 x 2160 @ 24 Hz/2560 x 1600 @ 60 Hz) LVDS connector (resolution up to 1920x1080@60Hz) |
| System | 2 x DDR4 2133 SO-DIMM sockets support up to 32GB, non-ECC 2 x SATAIII 6Gb/s connector 1 x SATA power connector 2 x Realtek RTL8111G PCIe GbE LAN contorller 2 x Dual deck USB 3.0 2 x USB 2.0 2 x 5 2.0mm header 2 x Serial ports: - 1 x RS232/485/422 by COM1 - 1 x RS232 by COM2 1 x 8-bit DIO header (4in/4out) WDT 1~255 steps by software program 1 x TPM connector Support Realtek HD Audio: - 2 x HD Audio jack (Line-out, Mic-in) - 1 x Speaker out header (4Ω/2W) - 1 x Front panel connector 1 x DC jack(5.5/2.5mm), 1 x ATX 4-pin Power connector |
| BIOS | 64Mbit Flash ROM x 1, AMI BIOS |
| Storage device | 2 x SATA III 6.0Gb/s |
| Expansion | 1 X PCIe 2.0 [x1](Gen2) 2 x mini-PCI express slot: 1 x Half size, support PCIe + USB interface 1 x Full size, support mSATA (default)/(PCIe+USB optional) |
| Power Requirements | 12V DC input: - DC lockable jack or ATX 4-pin power connector - AT/ATX mode select jumper (optional) |
| Rear I/O | 1 x DC power jack 2 x HDMI 2 x USB 3.0 (double deck) 2 x GbE controller 1 x MIC-in 1 x Line-Out |
| Mechanical & Environment | Operating temperature: 0°C~60°C) Storage temperature: -20°C~80°C) Relative humidity: operating 10%~90%, non-condensing |
| Dimensions | Display Head: Mini-ITX, 6.7” x 6.7” (170mm x 170mm) |
| Operating System | Windows® 7 32/64bit, 8.1,10 64-bit & Fedora *Notice: 7th processor support Windows 10 64-bit only |
| Certifications | EMC & Safety CE/FCC Class A |
NEX 614B (P/N: 10G00062100X0)
Intel® 7th/6th Generation Core™ i7/i5/i3, LGA1151 socket processor, max. 65W TDPs, H110, 2 x DDR4, 2 x HDMI, 4 x USB 3.0, 4 x USB 2.0, 2 x GbE, 2 x SATA, 2 x RS232, 2 x mini-PCIe, 1 x PCIe x1, 12VDC, 0~ 60°C
Optional Accessories
12V, 60W power adapter w/o power cord (35 W CPU only) (P/N: 7400060028X00)
12V, 80W power adapter w/o power cord (35/65 W CPU) (P/N:TDB)
COM port cable (P/N: 603COM0093X00)
USB cable (P/N: 603USB0084X00)
SATA cable (P/N: 60233ATA48X00)
SATA power cable (P/N: 60233PW168X00)
