IPPC0811-B01
On-board Intel® Atom E3845 1.91GHz with 4GB DDR3L
4 x LANs for network security industrial environment
application
Auto dimming function
Industrial EMC Certifi cation (EN61000-6-2 / EN61000-6-4)
Family include: 8”(IPPC0811-B01) / 12.1”(IPPC01211-B01)
Support VESA 75mm x 75mm, Flush Mount (optional)
- Introduction
- Specification
- Order
- Download

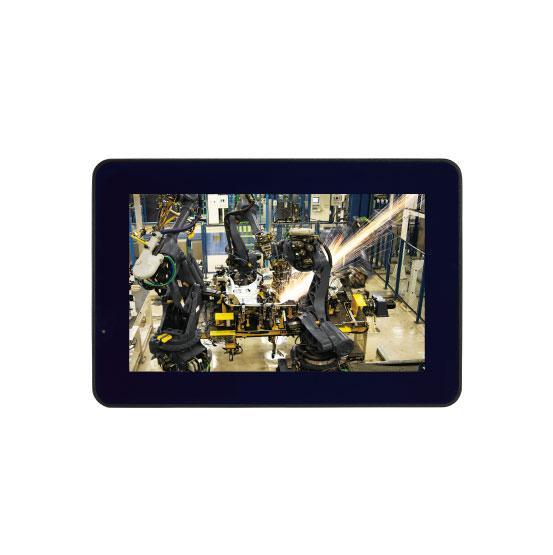

The 8” fanless panel PC IPPC 0811-B01 incorporating an industrial motherboard is intended for versatile industrial applications. The panel PC has a touch
screen LED backlight LCD panel with 800 x 480 (WVGA) resolution. The front panel which adopts flush design and complies with IP65 standard makes it
the perfect fit in industrial applications.
The IPPC 0811-B01 supports 4 Gigabit Ethernet connectors, and one M.2 slot. With support for isolated protection DC power input of 24VDC,
IPPC 0811-B01 can gain a strong foothold in industrial field and machine devices. In addition, IPPC 0811-B01 can hook 2nd display via a mini DP for dual
independent display. IPPC 0811-B01 has one adjustable RS232/422/485 ports.
| Panel | LED size: 8”, 16:9 Resolution: WVGA 800 x 480 Luminance: 600cd/m2 Contrast ratio: 600 LCD color: 16.2M Viewing angle: 60(U), 60(D), 70(L), 70(R) Backlight: LED |
| Touch Screen | Ten points P-Cap (projected capacitive touch) Touch light transmission: 89% Anti-scratch surface: 7H hardness with AR coating Touch interface: US |
| System | CPU: onboard Intel Atom® processor E3845, 1.91 GHz, 2M L2 Cache BIOS: AMI BIOS System memory: 1 x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L,(default), support up to 4GB DDR3L-1866, non-ECC and un-buffered Storage device: -1 x SATA M.2 2242 Key B connector, 64G M.2 SATA (default) -1 x SATA connector, support SATA 3Gb/s and SATA 6Gb/s Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C) H/W status monitor: monitoring system temperature, and voltage Front LED indicator to show operating status Backlight control -Control button: increase brightness, decrease brightness, backlight on/off -Auto dimming function can be adjust by ambient light sensor |

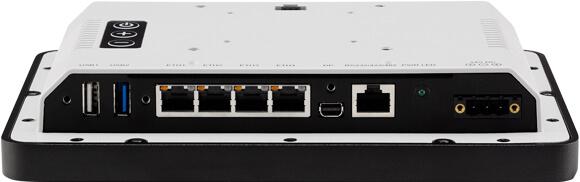

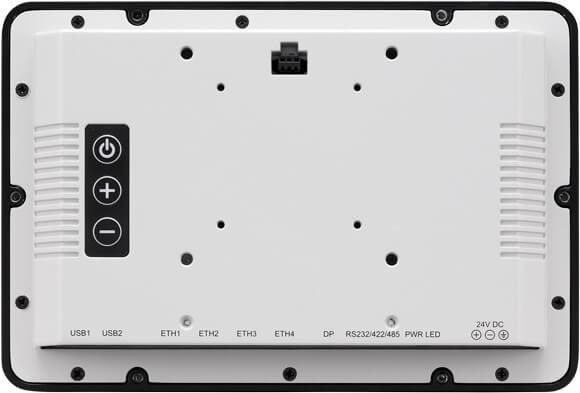

| Rear I/O | Ethernet: 4 x RJ45 2nd DP: 1 x mini DP USB: 1 x USB 2.0, 1 x USB 3.0 COM #1: 1 x RJ45 output for RS232/422/485 Power status LED DC power input connector: 3-pin phoenix terminal blocks |
| Ethernet | LAN chip: 4 x Intel® I210-IT Gigabit LAN Ethernet interface: 10/100/1000 Mbps Support wake up on LA |
| Power Requirements | Input voltage: 24VDC Reverse polarity protection Galvanic isolated Power consumption: 13W to 25W |
| Mechanical & Environment | Fanless system design Color: -Pantone black RAL9005, powder painting for aluminum front bezel -Pantone 421C RAL7035, for aluminum back cover IP protection: -IP65 front bezel -IP20 back system Mounting: VESA 75mm x 75mm/flush (optional) Vibration: -1.15Grms @ random condition, 1~200Hz, 1.5hr/axis (operating/non-operating) Shock -IEC 68 2-27 -20G @ wall mount, half sine, 11ms Operating temperature: -25°C to 60°C Storage temperature: -25°C to 75°C Operating humidity: 10%~90% relative humidity, non-condensing Dimension: 218.5 x 147.5 x 39.5 mm Weight: 3 k |
| Certifications | CE (including EN61000-6-2/EN61000-6-4) FCC class A |
| OS | Windows 10 64-bit |
IPPC 0811-B01 (P/N: 10II0081100X0)
8” TFT WVGA 16:9 heavy industrial panel PC with Intel Atom® E3845
Processor 1.91GHz, multi-touch screen, 4GB DDR3L, M.2 64GB,4 x Lan, 1 x COM, 1 x mini DP
Option
12V, 60W AC/DC power adapter w/o power cord (P/N: 7400060054X00)
