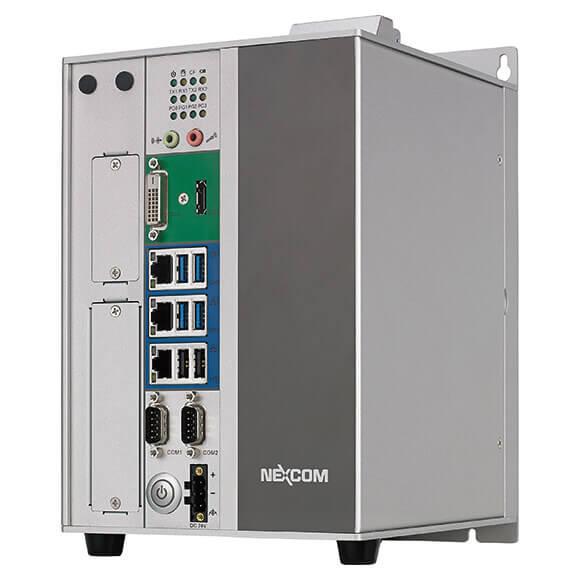

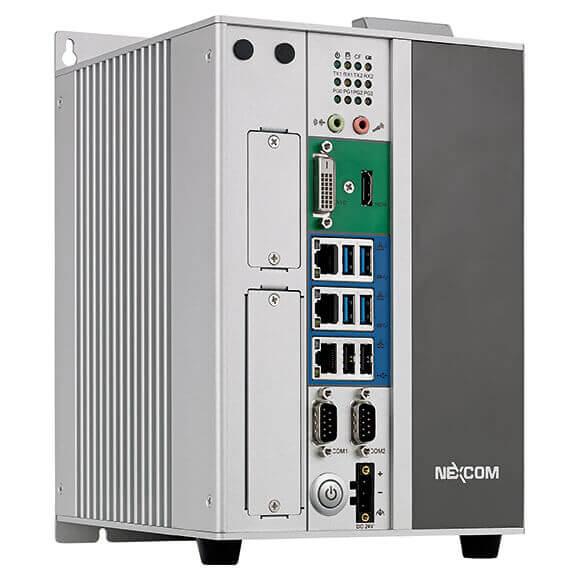

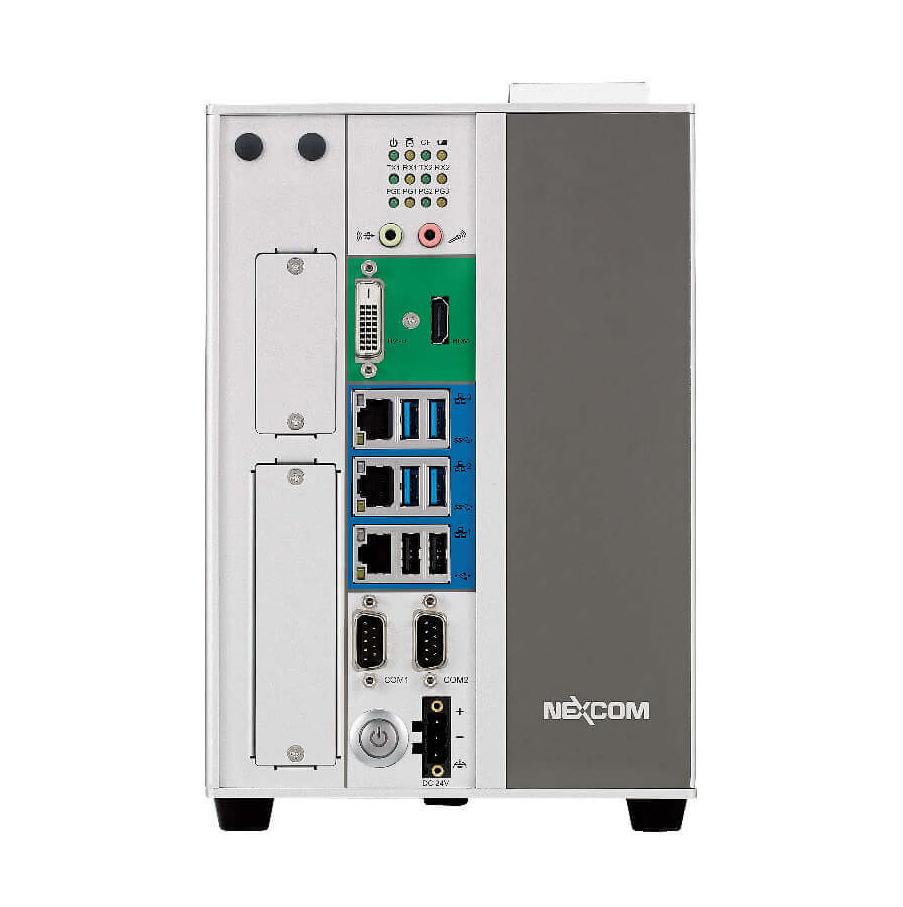

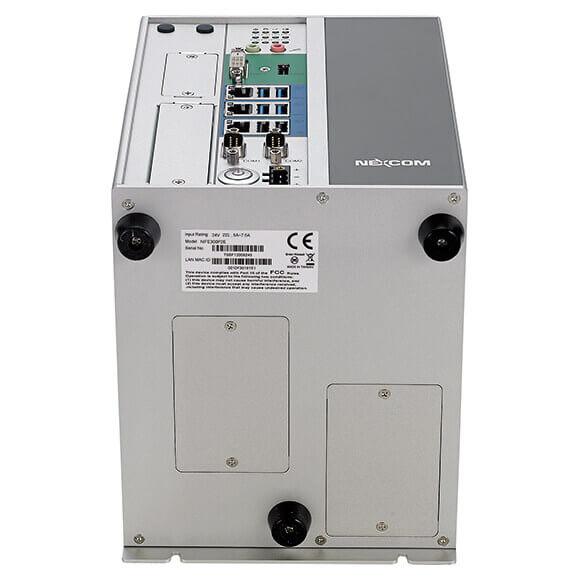

NIFE300P2E
6th SkyLake and 7th KabyLake w/Q170PCH, LGA1151 socket type
1 x DVI-D, 1x HDMI for dual independent display
3 x Intel® GbE LAN ports;support WoL, teaming and PXE
4 x USB 3.0, 2 x USB 2.0
2 x RS232/422/485
1 x front access 2.5”SATA HDD tray for easy installation
2 x Mini-PCIe socket for mSATA/Wi-Fi/3.5G/4G LTE/Fieldbus modules

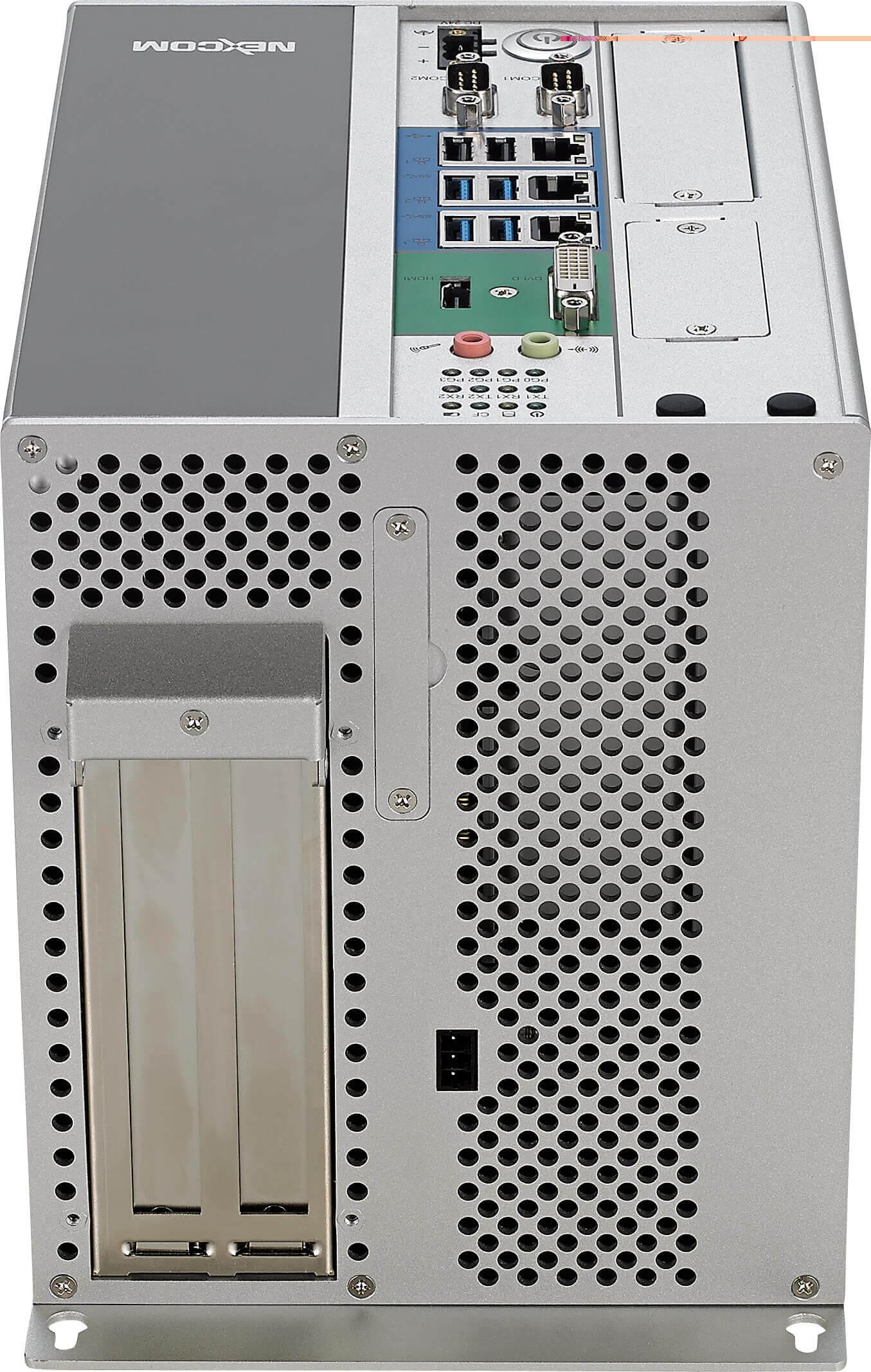

PCI and PCIe expansion slots for industry application
Support +24V DC input, AT/ATX power mode
Support -5~55 degrees operating temperature
- Introduction
- Specification
- Order
- Download
PC-based IoT controller solution NIFE 300 accelerates the migration of automation systems to cyber-physical systems for smart manufacturing. Boosted by Intel® Core™ i5-6500TE and i7-6700TE processors (formerly codenamed Skylake-S), the NIFE 300’s open architecture features high interoperability to provide a unified infrastructure, communication network, and programming tool for factory floors and company offices, regaining speed, efficiency, and agility in manufacturing.
The 6th generation Intel® Core™ processors utilizing Intel’s 14nm process have integrated Intel® HD Graphics and the latest generation interfaces including DDR4 2133. NIFE300 excellent performance is suited for graphic- and compute-intensive applications such as motion control and machine vision, while the 4K2K support enables human machine interface (HMI) to show exquisite details of working pieces and 3D simulation of working processes.
Using libraries of reusable logic and motion functionality, control schemes can be developed with reduced programming efforts for fast deployment of SoftPLC and IoT controllers.
CPU & Memory | Intel 6th Core i7/i5/i3 LGA socket type processor (35W); Intel 7th Core i5-7500T LGA socket Type processor (35W) Chipset - SkyLake-S, KabyLake Max. Memory - 2 x DDR4 SO-DIMM socket, support 2400MHz, up to 16GB |
Graphis | DVI - 1, DVI-D HDMI - 1 |
Storage | HDD - 2, 2.5" (1 x internal, 1 x external, via SATA III signal) CFast Socket - 1 (SATA III) mSATA - 1 |
External I/O | 4 x USB 3.0 2 x USB 2.0 LAN Ports - 3 x GbE Audio - Mic-in, Line-out |
Serial & GPIO | Serial Port (External) * : isolation - 2 x RS232/422/485* Serial Port (internal) - 2, 10-pin header GPIO - 4-in/4-out (internal) |
Expansion | miniPCIe - 2, Full Size mini-PCIe Socket SIM Card Holder - 1 Expansion Slot - 1 x PCI,1 x PCIe x8 --Add-on card length: 180mm max -- Power consumption: 10W/slot max |
Dimensions | Power Input AT/ATX power mode (Default:ATX power mode) DC +24V Power Supply Adapter - Optional, 1 x 24V, 120W AC to DC adapter System Dimension (WxDxH) - 155 x 185 x 251 mm Carton Dimension (WxDxH) - 389 x 329 x 336 mm Net weight - 4.4 Kg Gross weight - 6.1 K |
Support OS | Win7 32bit Win7 64bit Win10 64bit |
NIFE 300P2E system (P/N: 10J70030002X0)
24V, 120W AC to DC power adapter w/o power cord (P/N: 7400120026X00)
