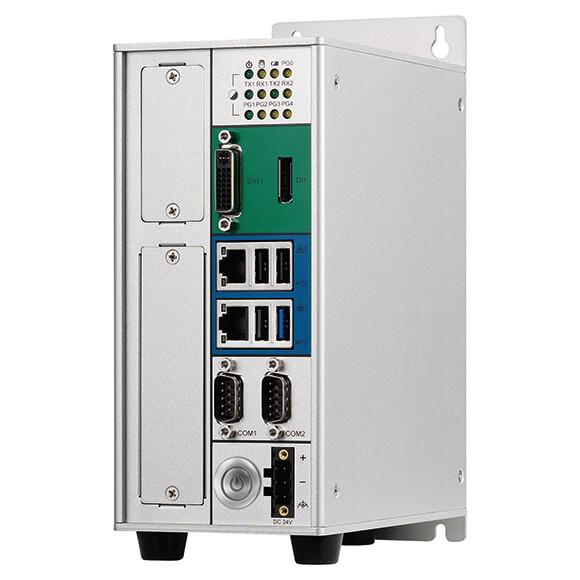

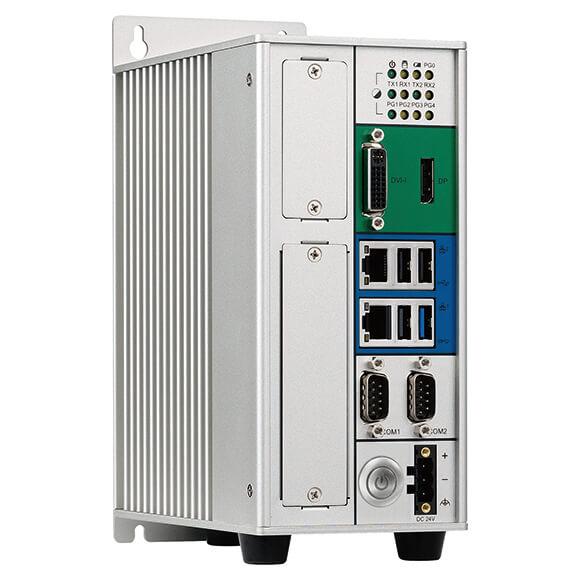

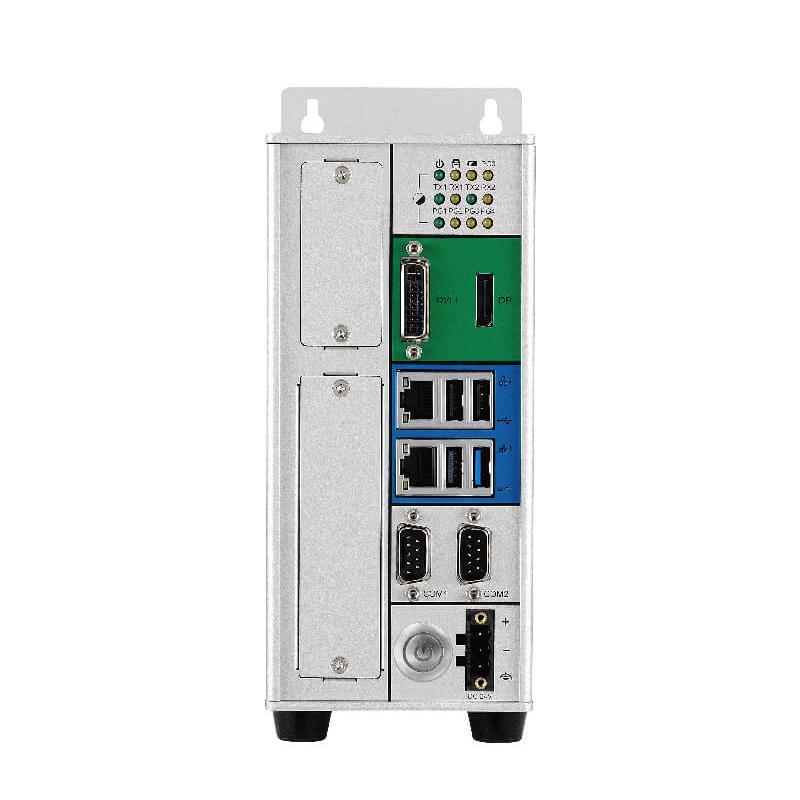

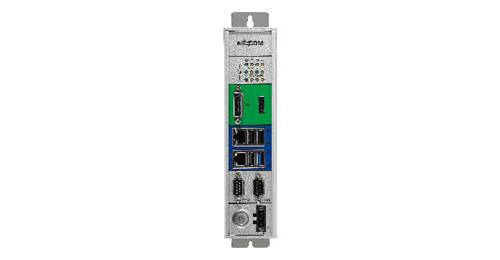

NIFE200
Onboard Intel® Celeron® processor J1900
1 x DP, 1 x DVI-I for dual inpendent display
2 x Intel® I210AT GbE LAN ports support WoL, Teaming and PXE
3 x USB 2.0, 1 x USB 3.0
2 x RS232/422/485
Front accessible 2.5 SSD/HDD and top accessible SD card for installation
2 x mini-PCIe socket for optional mSATA/Wi-Fi/3.5G/4G LTE/Fieldbus modules
Support -5~55 degree Celus operating temperature
- Introduction
- Specification
- Order
- Download
Powered by the latest generation of Intel® Celeron® processor J1900 (formerly codenamed “Bay Trail-D”), NIFE 200 presents intelligent PC-based controller and IoT gateway for factory automation. NIFE 200 supports up to 8G DDR3L memory and have several options on storage devices like SD, mSATA, HDD and SSD. The NIFE 200 support operating temperature from -5 up to 55 degree C with typical DC input 24V +/-20% range. The NIFE 200 has high integration ability with optional Mini-PCIe module and 2 x COM ports, which makes it a reliable connection with devices in factory automation applications (with optional PROFIBUS, ProfiNET, DeviceNET, EtherCAT, EtherNet/IP, CANopen, SERCOSIII master module), IoT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485). NIFE 200 is definitely the top choice for M2M intelligent system as a factory automation controller and gateway.
CPU & Memory | Intel® Celeron® Processor J1900 (2.0GHz, 4C4T, 10W) Chipset - Bay Trail-D Max. Memory - 2 x DDR3L SO-DIMM, 8GB Max |
Graphics | DVI - 1, DVI-I DP (Display Port) - 1 |
Storage | HDD - 1 x 2.5" (SATA II) mSATA - 1 SD Card - 1 |
External I/O | 1 x USB 3.0 3 x USB 2.0 LAN Port - 2 x GbE |
Serial & GPIO | Serial Port (External)* : isolation - 2 x RS232/422/485* (COM1 support 2.5KV isolation protection) Serial Port (internal) - 2, 10-pin header GPIO - 4-in/4-out (Internal) |
Expansion | miniPCIe - 2, Full Size mini-PCIe Socket SIM Card Holder - 1 |
Dimensions | Power Input Range - ATX, DC+24V Power Supply Adapter - Optional, 1 x 24V, 60W System Dimension (WxDxH) - 85 x 157 x 214 mm Carton Dimension (WxDxH) - 346 x 265 x 200 mm Net weight - 2.3 kg Gross weight -3.3 kg |
Support OS | Win7 32bit Win7 64bit Win10 64bit |
NIFE 200 (P/N: 10J70020000X0)
Intel® Atom™ processor J1900 Quad Core 2.0GHz fanless system
24V, 60W AC/DC power adapter w/ o power cord (P/N: 7400060047X00)
