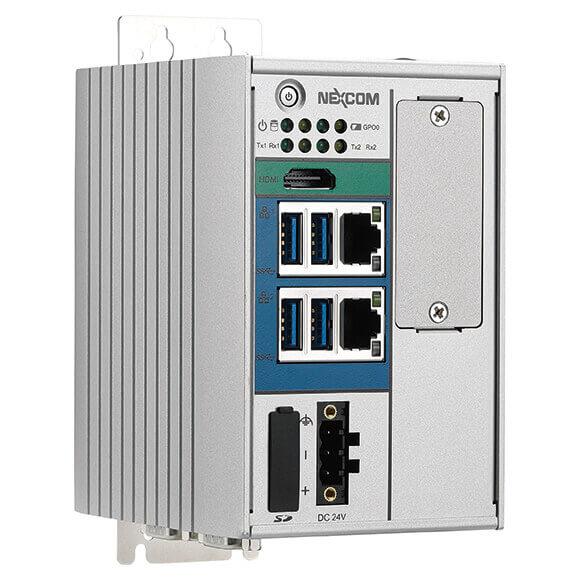

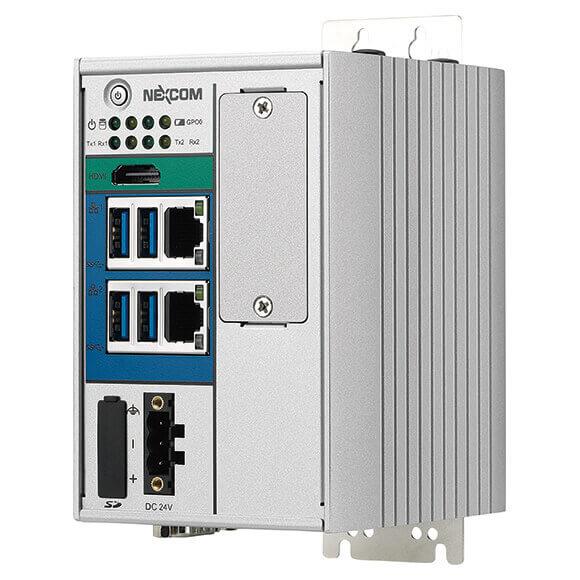

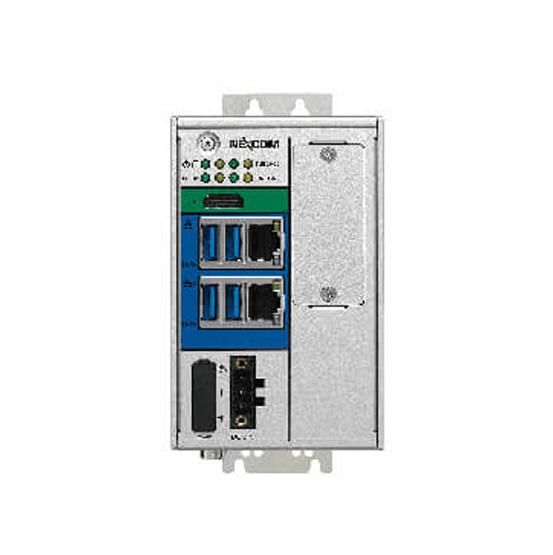

NIFE105W

ATOM® x5-E3930, 2C2T, APL HDMI, 2COM, 2GbE FBI slot

Onboard Intel® Atom™ x5-E3930 processor, 1.8GHz

1 x HDMI Display

2 x Intel® I210IT GbE LAN ports support WoL, Teaming and PXE

4 x USB 3.0

2 x mini-PCIe sockets for optional mSATA/Wi-Fi/3.5G/LTE/Fieldbus modules

2 x RS232/422/485 with auto flow control

Support -10~60 degrees Celus operating  temperature


NIFE product line comes in a range of form factors and processor configurations including Intel Atom and Intel Core processors to suit different application requirements. For NIFE 105W, it positions itself at the entry level of fieldbus controller, and suitable for M2M communication gateway and data server applications. Boosted by Intel® latest Apollo Lake-I processors and the palm size form-factor, NIFE 105W is the most suitable entry level automation system which satisfying the needs of steady system performance and installation in gateway field or a small controller cabinet.


Using libraries of reusable logic and motion functionality, control schemes can be developed with reduced programming efforts for fast deployment of SoftPLC controller and M2M gateway.


CPU & Memory

Intel Atom X5-E3930 (1.3GHz, 2C2T, 6.5W)

Chipset - Apollo Lake

Max. Memory - Onboard 4GB DDR3L

GraphicsHDMI - 1
StoragemSATA - 1

SD Card - 1

eMMC - Onboard 16G

External I/O4 x USB3.0

LAN Ports - 2 x GbE

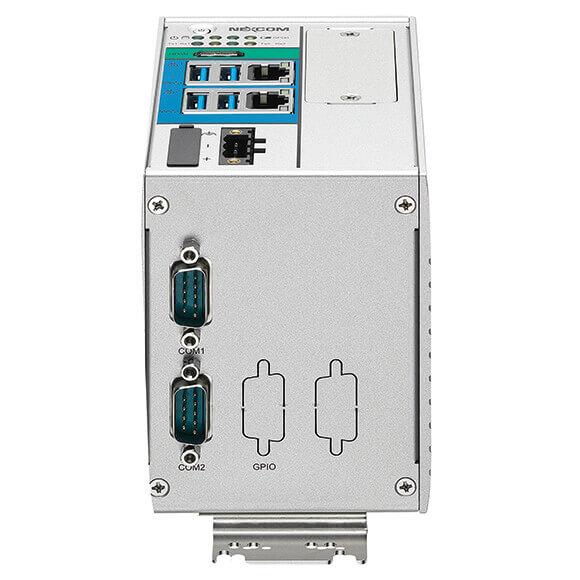

Serial & GPIOSerial Port (External)* : isolation

2 x  RS232/422/485

1 x Optional DB9, support 4 x GPI and 4 x GPO

Serial Port (internal)

1, COM3/COM4 pin header for RS232 (TX/RX/RTS/CTS signal only)

GPIO - 4-in/4-out (Internal)

ExpansionminiPCIe - 2, Full Size mini-PCIe socket

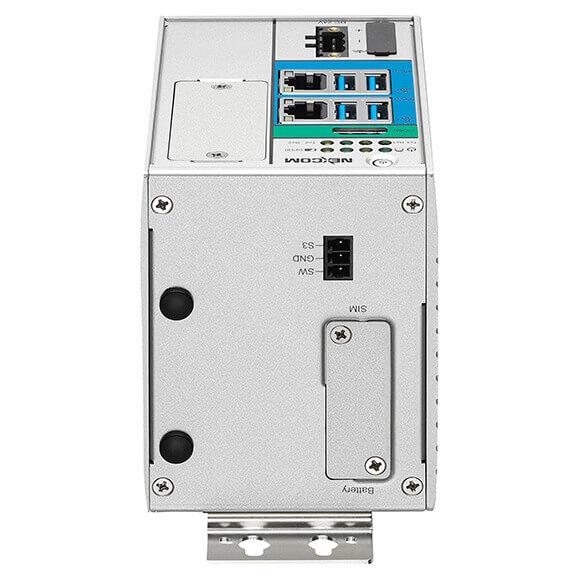

SIM Card Holder - 1

DimensionsPower Input - ATX, DC +24V

Power Supply Adapter - Optional, 1 x 24V, 60W

System Dimension (WxDxH) - 78.2 x 100 x 120 mm

Carton Dimension (WxDxH) - 212  x 221 x 164 mm

Net weight  - 0.8 Kg

Gross weight - 1.8 Kg

Support OSWin10 64bit


NIFE 105W system (P/N: 10J70010501X0)

Intel Atom® x5-E3930 Dual Core Factory Automation Fanless System with 4G memory, 16G eMMC onboard and one FBI opening

24V, 60W AC/DC power adapter w/ o power cord (P/N: 7400060047X00)
