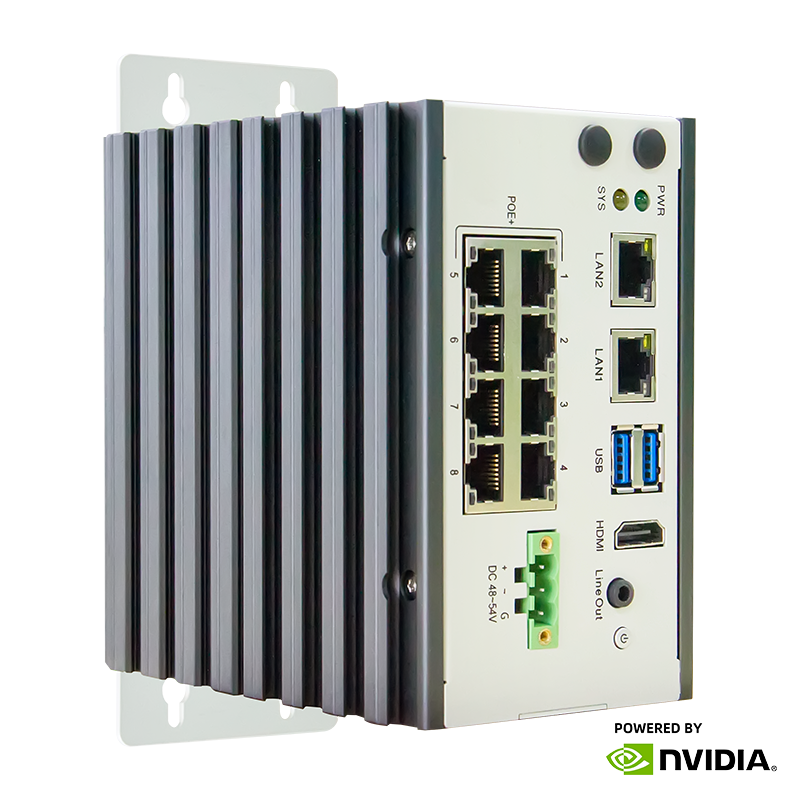

Coeus - 3608P

Provide 8 POE interfaces,21TOPS, supports multiple AI frameworks,supports 1TB, storage (M.2), supports 5G, 4G, WiFi

NVIDIA Jetson Xavier NX

21TOPS

8×POE

1×miniPCIe

Support multiple AI frameworks

Support 1TB storage (M.2)

Support 5G, 4G, WiFi


Provide 8 POE interfaces.The edge AI computer uses cores is NVIDIA Jetson Xavier NX, can reach up to 21TOPS computing power, supports multiple AI frameworks, provides rich I/O interfaces, uses fanless heat dissipation and industrial wide temperature design. It supports 5G, 4G, and WiFi expansion, and can communicate with terminals through various forms, reducing the forwarding and processing time during data transmission, significantly reducing communication delay, reducing cloud data calculation pressure, and reducing network traffic costs. At the same time, the device supports remote management, which can manage distributed edge AI computers through software batches and scripts.

CPU6-core NVIDIA Carmel ARM v8.2 64-bit
GPU384-core NVIDIA Volta GPU with 48 Tensor Cores
DL Accelerator2*NVDLA Engines
Vision Accelerator7-Way VLIW Vision
RAM8GB 128-bit LPDDR4x
Memory16GB eMMC
I/O2* USB3.0

2* RJ45 LAN

1* HDMI

1* PWR

1* SYS

1* Line Out

1* Power Switch

2* Antenna reservation

1* Power connector

1* GPIO(4DI&4DO)

2* COM(Non-full signal、1*DB9,COM1 RS-232/422/485;COM2 RS-232)

1* OTG

1* Recovery

1* Ground screw hole

POE8
Expand

1* Micro SD

1* M.2 M-Key 2280

1* M.2 B-Key 3052  5G、4G

1* Full-size slot, support mSATA

Power InputDC48V
Dimension85.4mm (W) x 137mm (D) x 176mm (H)
Installation MethodWall-mounted, rail-mounted
Operating Temperature-10 ~ 55 ℃ with air flow
Storage Temperature-20 ~ 80 ℃
Working Humidity40℃,95% Relative humidity, non-condensing
Weight-
Cooling MethodFanless passive cooling



Name3608P
Order Number10JD3608P00XH
CoreNVIDIA Jetson Xavier NX
POE

8
