Coeus - 3604P
NVIDIA Jetson Xavier NX
21TOPS
4×POE
1×miniPCIe
Support multiple AI frameworks
Support 1TB storage (M.2)
Support 5G, 4G, Wi-Fi
- Introduction
- Specification
- Order
- Download

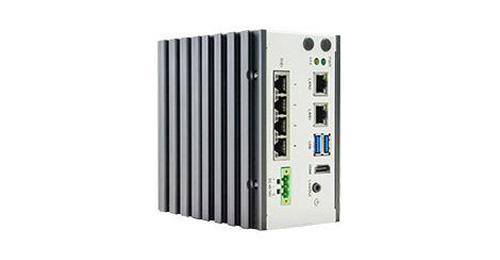

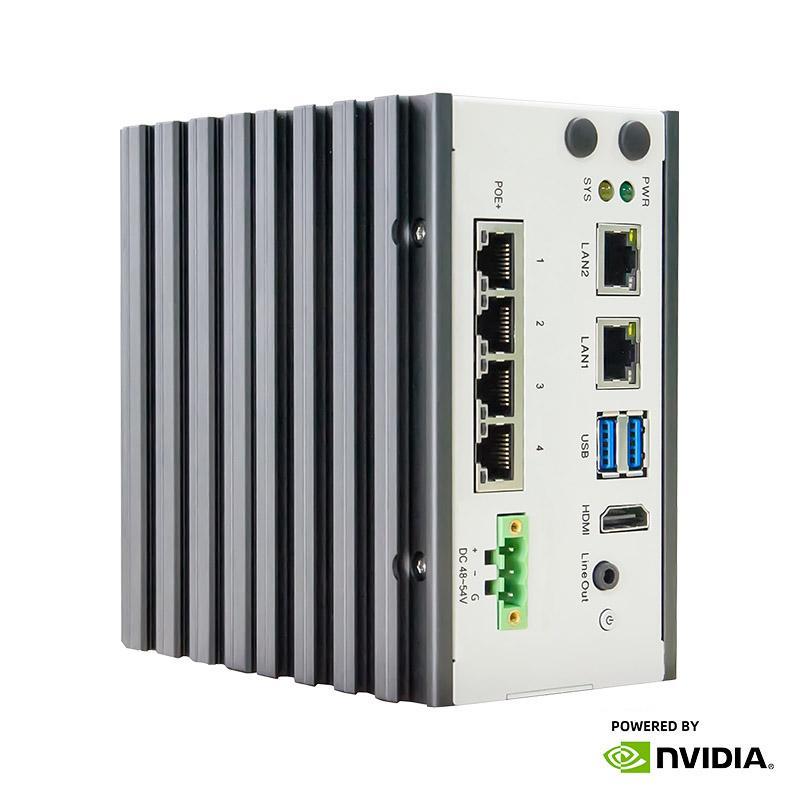

Provide 4 POE interfaces.The edge AI computer uses cores is NVIDIA Jetson Xavier NX, can reach up to 21TOPS computing power, supports multiple AI frameworks, provides rich I/O interfaces, uses fanless heat dissipation and industrial wide temperature design. It supports 5G, 4G, and WiFi expansion, and can communicate with terminals through various forms, reducing the forwarding and processing time during data transmission, significantly reducing communication delay, reducing cloud data calculation pressure, and reducing network traffic costs. At the same time, the device supports remote management, which can manage distributed edge AI computers through software batches and scripts.
CPU | 6-core NVIDIA Carmel ARM v8.2 64-bit |
GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores |
DL Accelerator | 2*NVDLA Engines |
Vision Accelerator | 7-Way VLIW Vision |
RAM | 8GB 128-bit LPDDR4x |
Memory | 16GB eMMC |
I/O | 2* USB3.0 2* RJ45 LAN 1* HDMI 1* PWR 1* SYS 1* Line Out 1* Power Switch 2* Antenna reservation 1* Power connector 1* GPIO(4DI&4DO) 2* COM(Non-full signal、1*DB9,COM1 RS-232/422/485;COM2 RS-232) 1* OTG 1* Recovery 1* Ground screw hole |
POE | 4 |
Expand | 1* Micro SD 1* M.2 M-Key 2280 1* M.2 B-Key 3052 支持5G、4G 1* Full-size slot, support mSATA |
Power Input | DC48V |
Dimension | - |
Installation Method | Wall-mounted, rail-mounted |
Operating Temperature | -10 ~ 55 ℃ with air flow |
Storage Temperature | -20 ~ 80 ℃ |
Working Humidity | 40℃,95% Relative humidity, non-condensing |
Weight | - |
Cooling Method | Fanless passive cooling |
Name | 3604P |
Order Number | 10JD3604P00XH |
Core | NVIDIA Jetson Xavier NX |
POE | 4 |
Order or get information, please send an email to: sales@nexgemo.cn
