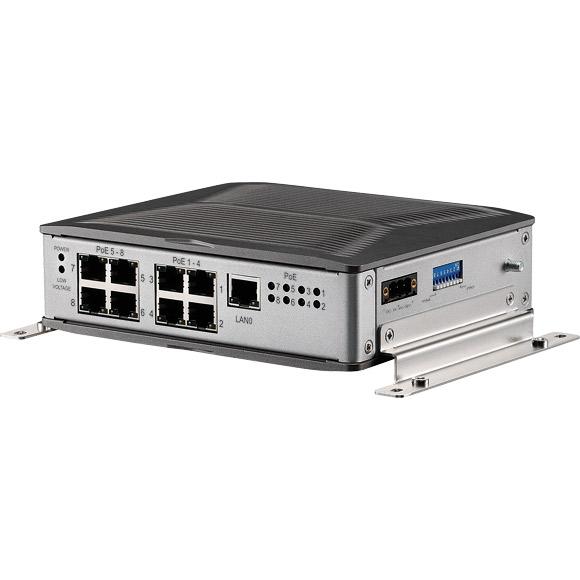

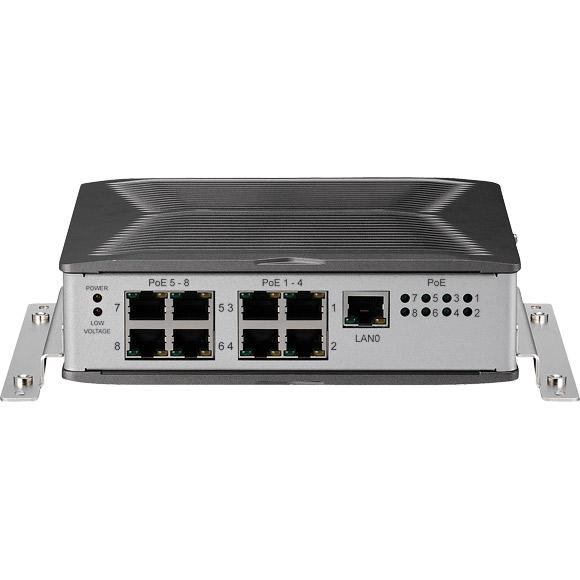

VES30-8S
8 x 10/100/1000 MbpsPoE 接口 (802.3af compliance)
每个PoE接口：15.4W at 48VDC
低电压电池保护
通过CE/FCC, E13 mark 认证
宽压：9~36VDC
-30 ~ 70°C 宽温
支持电源点火On/Off
电源On/Off延迟设置
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
VES30-8S移动PoE交换机采用无风扇外壳设计，适用恶劣环境的远程信息处理应用。提供9个千兆以太网端口，包括8个IEEE 802.3af PoE 端口，符合大容量视频流，声音和关键数据快速平稳的传输。
因汽车动力不稳定的性质，移动PoE交换机支持9VDC~36VDC的宽电压输入，提供低电池电压保护的智能电源管理，上电和断电延时定时器，和自动点火开/关功能。这些独特的功能确保安全可靠运行，并防止PoE交换机和车辆过早失效。
VES30-8S 是采用无风扇防尘机箱设计，防冲击和振动，适用-30到70°C的极端温度环境。移动PoE交换机还采用紧凑尺寸，支持DIN导轨安装，并轻松安装PD设备，如IP摄像机和Wi-Fi接入点等。
| 架构 | Switch architecture. Highly integrated, unmanaged-smart gigabit, store and forward switc h4K entry MAC address table with automatic learning and aging |
| PoE | PoE standard IEEE 802.3af Power over Ethernet/PSE PoE power supply type end-span PoE power output per port 48V DC, 350mA. max. 15.4 watts |
| 网络连接头 | 8-port RJ45 for 10/100/1000 base-T. PoE IEEE 802.3af compliance, total 120W 1-port RJ45 for 10/100/1000 base-T |
| 标准 | IEEE 802.3 for 10BaseT Ethernet IEEE 802.3u for 100BaseT(X) Fast Ethernet IEEE 802.3ab for 1000BaseT(X) Gigabit Ethernet IEEE 802.3x for flow control IEEE 802.3af Power Over Ethernet |
| I/O 接口 | Power: 1 x 9~36VDC input with ignition Ethernet: 8 x RJ45 10/100/1000 Mbps PoE port, 802.3af compliance1 x RJ45 10/100/1000 Mbps LED: 1 x power indicator8 x PoE indicator 1 x low voltage protection indicator |
| 电源管理 | Selectable boot-up & shut-down voltage for low power protection by Dip switch Power on/ off delay time setting by Dip switch |
| 尺寸 | 167 x 51.49 x 139.6 mm (65.75" x 20.27" x 54.96") Weight: 1kg Support Horizontal Mounting, DIN- Rail Mounting (option) and vertical Mounting (option) |
| 环境 | Operating temperatures: Ambient with air -30°C to 70°C Storage temperatures: -35°C to 85°C Relative humidity: 10% to 90% (non-condensing) Vibration (random): 1g@5~500 Hz Vibration: Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock: Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g Non-Operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
| 通过认证 | CE approval FCC Class B E13 Mark |
VES30-8S (P/N: 10VE0003001X0)
8 x RJ45 10/100/1000 PoE port (802.3af), 1 x RJ45 10/100/1000 Ethernet port, 9 ~ 36VDC input, ignition detection, low voltage protection, delay timer, E13 mark
