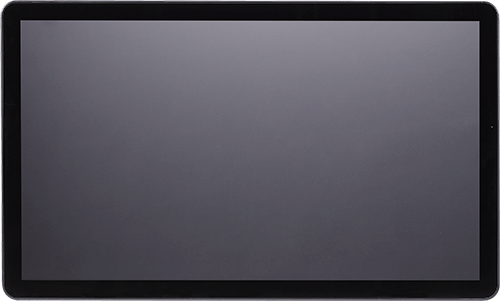

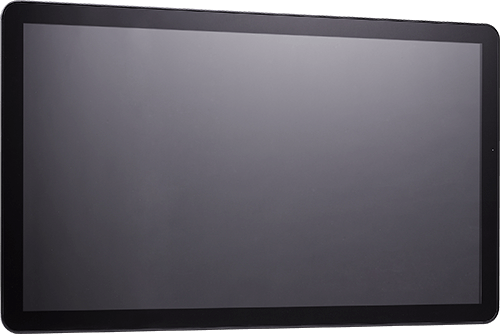

TPPC 3201

Intel Atom® x5-E3930 Processor

31.5” TFT-LCD FHD 16:9 fanless panel computer

Powered by Intel Atom® x5-E3930 processor, 1.3GHz

Wide-range DC input of 9V to 36V DC

Support ignition control for power on/off delay timing management

Compliant with IP54 on the front panel

Tempered glass, surface hardness 8H

1 x DDR3L up to 8GB, M.2 (2242) B-Key SSD for storage device

1 x mini-PCIe expansion available for wireless communication


The 31.5” fanless panel pc, TPPC 3201 is a 31.5” 16:9 TFT-LCD with resolutions to 1920 x 1080 (Full-HD) and industrial motherboard making it the perfect “ AIO” in transit panel PC solution. Wide-range power input (9V-36V DC) can let TPPC 3201 to be capable of setting up in various application environment and vehicles, which is included in retail outlets, supermarkets, train station, airport and bus. It is compliant to in-vehicle industrial standard, like E/e-Mark.

LCD PanelLCD size: AUO 31.5”, 16:9Resolution: Full-HD, 1920 x 1080Luminance: 500 nits cd/m2Contrast ratio: 3,000LCD color: 16.7MView angle: 89 (H), 89 (V)Backlight: LED
SystemIntel Atom® x5 E3930 processor, 1.3GHz (burst mode: 1.8GHz)
System Front1 x Ambient light sensor
Main Memory1 x 204-pin DDR3L SO-DIMM socket up to 8GB. Support up to 1866 Mhz, non-ECC and unbuffered memory
Rear I/O1 x Power input connector, 6-pin (9V-36V DC & Ignition control)1 x DB9 COM port for RS232/422/4852 x RJ45 Intel® I210-AT gigabit LAN ports4 x USB 3.0, support USB 2.01 x HDMI 1.4b (support 4K x 2K @30Hz)1 x Line-in, 1 x Line-out with 16Ω Amplifier
AudioRealtek ALC886 audio codec
Storage Device1 x M.2 (2242) B key SSD, up to 256G max.1 x 2.5” SATA SSD reserved
Expansion1 x mini-PCIe full-size connector on board (support PCIe/USB)
Power Management9V to 36V DC input (UPS: 12V, 24V and 36V)Ignition on/off control & programmable on/off delay timing


- IEC60068-2-64

- Operating: 0.5G, random, 5-500Hz, 1hr/X axis (w/ storage)

- Operating: 1G, random, 5-500Hz, 1hr/Y, Z axis (w/ storage)Drop

- IEC60068-2-32


- 20kg (packing weight) & 66cm (falling height)Temperature

- Operating temperature: 0~50°C

- Storage temperatures: 0~70°C

- Damp heat test per EN60068-2-30, 45~55°C, 95%, 48Hrs, non-condensing

Operating System SupportWin10 IoT Enterprise 64-bitLinux Yocto 4.14
Mechanical Information

Color: black

VESA mount (200mm x 200mm; 200mm x 400mm)

Dimension: 761mm (W) x 455.6mm (D) x 67.2mm (H)

System weight (N.W): 18.5kg, 40.7lb

Package weight (G.W): 23kg, 50.71lb

CertificationCE (EN55024, EN55032, EN55035)FCC Class A (Part 15B)E-mark: E-13, 12/24V

TPPC 3201 (P/N: 10ID0320100X1)

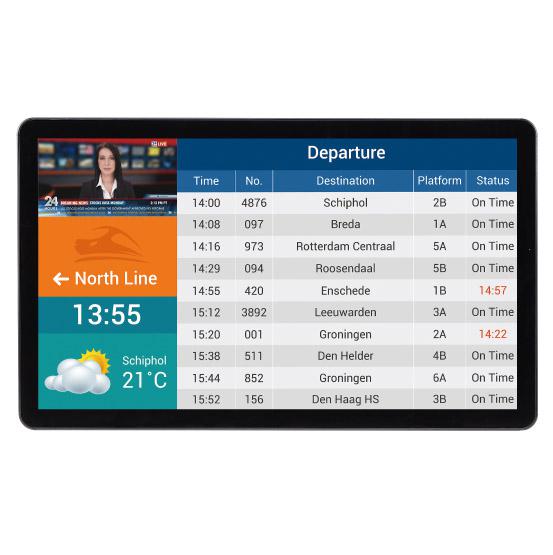

31.5” TFT-LCD FHD 16:9 Passenger Information Panel PC, Intel Atom® x5-E3930
