TPPC 2401

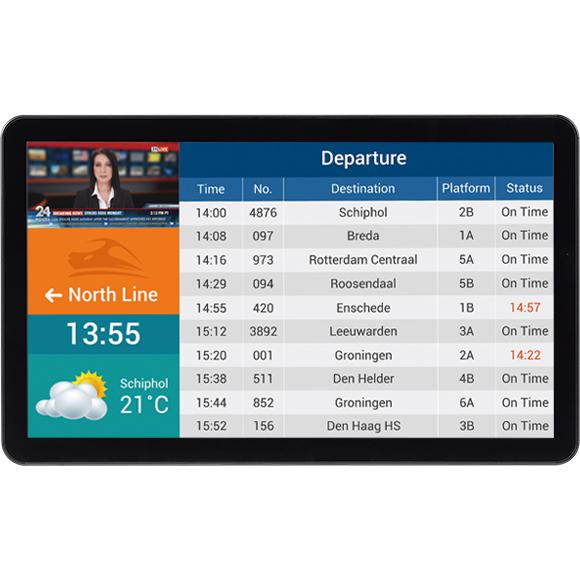

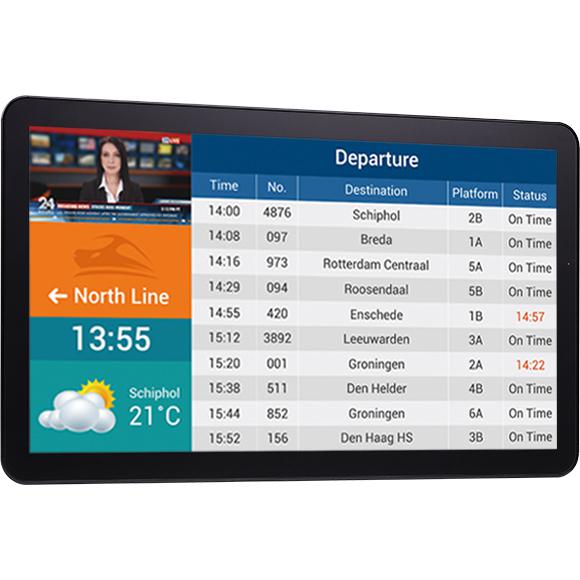

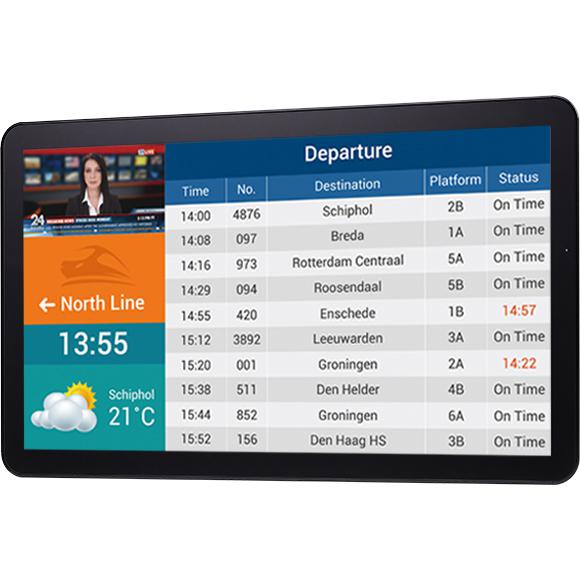

23.8” Full-HD Passenger Information Panel PC Powered by Intel Atom® x5-E3930 Processor

23.8” TFT-LCD FHD 16:9 fanless panel computer

Powered by Intel Atom® x5-E3930 processor, 1.3GHz

Wide-range DC input of 9V to 36V DC

Support ignition control for power on/off delay timing management

Compliant with IP54 on the front panel

Tempered glass, surface hardness 6H

1 x DDR3L up to 8GB, M.2 (2242) B-Key SSD for storage device

1 x mini-PCIe expansion available for wireless communication


The 23.8” fanless panel pc, TPPC 2401 is a 23.8” 16:9 TFT-LCD with resolutions to 1920 x 1080 (Full-HD) and industrial motherboard making it the perfect “ AIO” in transit panel PC solution. Wide-range power input (9V-36V DC) can let TPPC 2401 to be capable of setting up in various application environment and vehicles, which is included in retail outlets, supermarkets, train station, airport and bus. It is compliant to in-vehicle industrial standard, like E/e-Mark.

LCD Panel

LCD size: Innolux 23.8,16:9

Resolution: Full-HD, 1920 x 1080

Luminance: 350 nits cd/m2

Contrast ratio: 1,000

LCD color: 16.7M

View angle: 178 (H), 178 (V)

Backlight: LED

SystemIntel Atom® x5 E3930 processor, 1.3GHz (burst mode: 1.8GHz)
System Front1 x Ambient light sensor
Main Memory1 x 204-pin DDR3L SO-DIMM socket, up to 8GB. Support up to 1866 Mhz, non-ECC and unbuffered memory

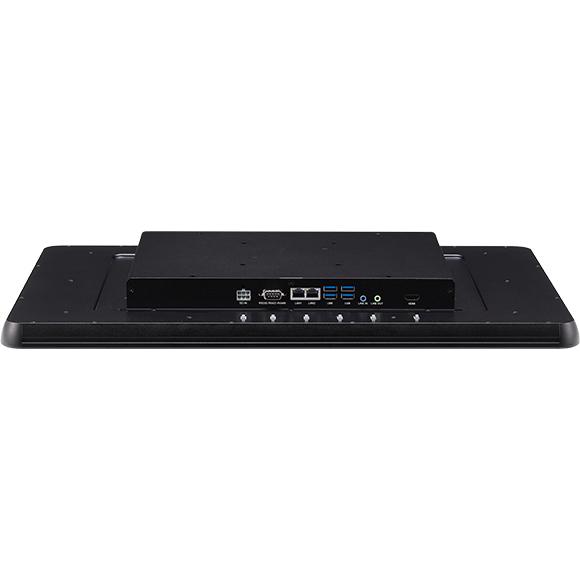

Rear I/O

1 x Power input connector, 6-pin (9V-36V DC & Ignition control)

1 x DB9 COM port for RS232/422/485

2 x RJ45 Intel® I210-AT gigabit LAN ports

4 x USB 3.0, support USB 2.0

1 x HDMI 1.4b (support 4K x 2K @30Hz)

1 x Line-in, Line-out with 16Ω Amplifier

AudioRealtek ALC886 audio codec
Storage Device

1 x M.2 (2242) B key SSD, up to 256G max.

1 x 2.5” SATA SSD reserved

Expansion1 x mini-PCIe full-size connector on board (support PCIe/USB)
Power Management

9V to 36V DC input (UPS: 12V, 24V and 36V)

Ignition on/off control & programmable on/off delay timing



- IEC60068-2-64

- Operating: 1G, random, 5-500Hz, 1hr/axis (w/ storage)


- IEC60068-2-32


- 10.4kg (packing weight) & 81cm (falling height)


- Operating temperature: 0~50°C

- Storage temperatures: 0~70°C

- Damp heat test per EN60068-2-30, 45~55°C, 95%, 48Hrs, non-condensing

Operating System Support

Win10 IoT Enterprise 64-bit

Linux Yocto 4.14

Mechanical Information

Color: black

VESA mount (100mm x 100mm; 200mm x 200mm)

Dimension: 580.31mm (W) x 354.6mm (D) x 55.5mm (H)

System weight (N.W): 10kg, 22lb

Package weight (G.W): 12kg, 26.45lb


CE (EN55024, EN55032, EN55035)

FCC Class A (Part 15B)

E-mark: E-13, 12/24V

TPPC 2401 (P/N: 10ID0240100X1)

23.8” TFT-LCD FHD 16:9 Passenger Information Panel PC, Intel Atom® x5-E3930
