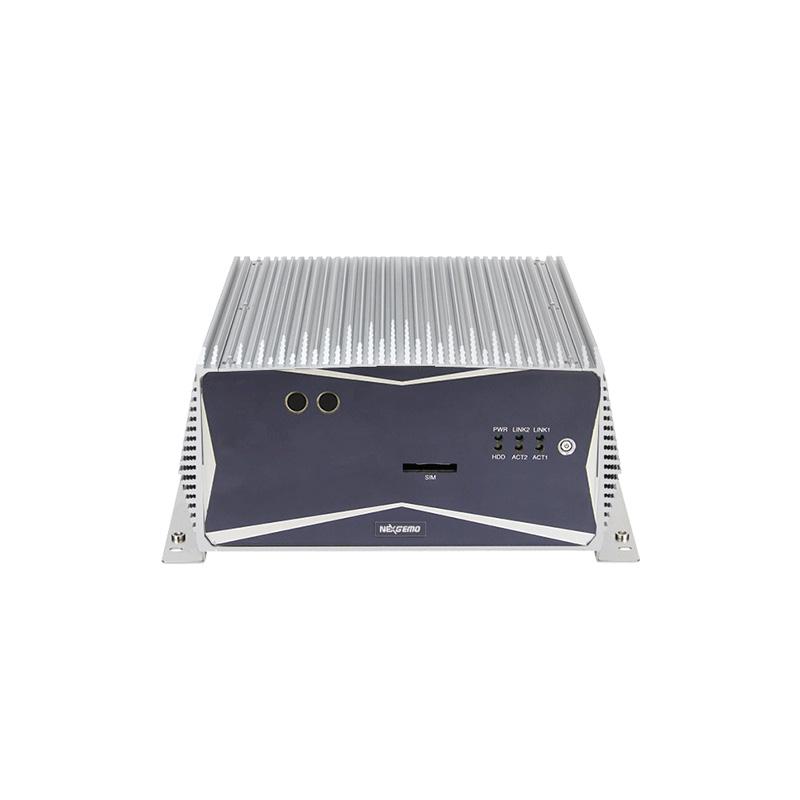

Fanless Edge AI Server
Based on Hygon platform
1 × VGA，1 × HDMI，Independent dual display
1 × M.2 3042 B key
2 × M.2 2280 M key
2 × PCI or PCIe x 4 expand
Support Wi-Fi / 4G / 5G
- Introduction
- Specification
- Order
- Download
Based on Hygon platform, the new generation of NISE 3631 series, maintains a good reputation in terms of quality and user-friendly functions, and also innovative mechanical design. The fanless sturdy body, with video capture card, algorithm card, and dual-screen display, meets the needs of video surveillance applications, such as smart transportation, smart city, industrial production and other fields, and can adapt to harsh environments. In the face of high computing power or complex business needs, you can choose the E2 model, which provides 2 PCIe slots to expand multiple functions.
| CPU | HYGON C86 3131E |
| RAM | 2 x DDR4 UDIMM socket, supports up to 16GB DDR4 2133/2400/2666 , with un-buffered and non-ECC |
Display Option | Dual independent display -VGA and HDMI |
Front I/O interface | ATX power on/off switch HDD access/power status LEDs 2 x Antenna holes 1 x SIM card socket |
Rear I/O interface | 2 x DB9 for COM1 & COM2 -COM1: RS232/422/485 auto flow control -COM2: RS232/422/485 auto flow control 2 x USB 3.0 ports (900mA per port) 2 x USB 2.0 ports (500mA per port) 1 x VGA port 1 x HDMI port 2 x Intel ® I210-AT GbE LAN ports; support WoL, teaming and PXE 1 x 3-pin remote power on/off switch +9V to 30V DC input |
Expansion Slot | 1 x External M.2 3042 B key 2 x External M.2 2280 M key Two PCIe x4 expansion slot -Add-on card length: 169mm max. -Power consumption: 10W/slot max Two PCI expansion slot -Add-on card length: 169mm max. -Power consumption: 10W/slot max One PCIe x4 expansion slot and one PCI expansion slot -Add-on card length: 169mm max. -Power consumption: 10W/slot max 1 x Internal mini-PCIe socket support optional Wi-Fi/4G LTE |
Power Requirements | AT/ATX power mode (default: ATX power mode) Power input: +12 to +30V DC Power adapter: optional AC to DC power adapter (24V DC, 120W) |
Dimensions | 215 mm(W) x 272mm (D) x 94mm (H) without wall mount bracket (8.5" x 10.7" x 3.7") |
Weight Information | Gross weight: 6.54kg Net weight: 5kg |
Construction | Aluminum and metal chassis with fanless design |
OS Support | Windows 10 64-bit Linux for Fedora & Ubuntu |
| Environment | Operating temperature: Storage temperature: -20°C to 80°C Relative humidity: 10% to 95% (non-condensing) Shock protection: Vibration protection with HDD condition: Vibration protection with SSD & M.2 condition: |
| Certifications | CE approval- EN61000-6-2- EN61000-6-4 FCC Class A |
Order or get information, please send an email to: sales@nexgemo.cn
NISE 3131E2
HYGON C86 3131E fanless system with two PCIe x4 expansion
NISE 3131P2
HYGON C86 3131E fanless system with two PCI expansion
NISE 3131P2E
HYGON C86 3131E fanless system with one PCIe x4 expansion and one PCI expansion
