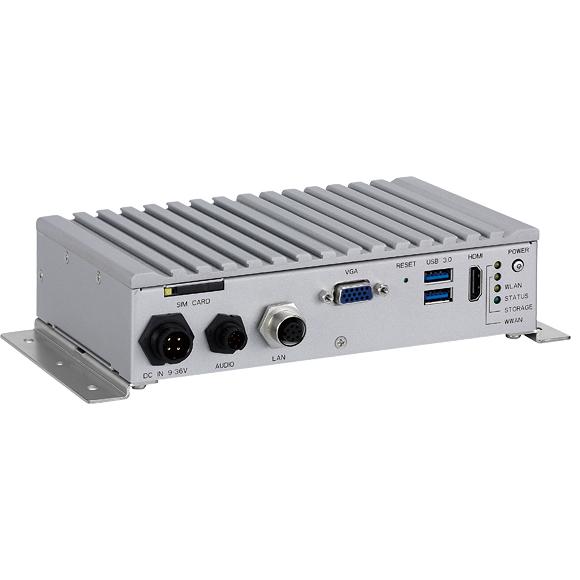

nROK 1020
Compact and fanless design
Built-in GPS receiver with optional dead reckoning function
Variety of wireless communication options
Smart power management with Ignition on/off delay via software control and low voltage protection
Wide range DC input from 9~36V
EN50155 Class OT4 conformity
Compliance to EN45545-2
5 x RS232 and 2 x RS485
- Introduction
- Specification
- Order
- Download
Compact and fanless design
Built-in GPS receiver with optional dead reckoning function
Variety of wireless communication options
Smart power management with Ignition on/off delay via software control and low voltage protection
Wide range DC input from 9~36V
EN50155 Class OT4 conformity
Compliance to EN45545-2
5 x RS232 and 2 x RS485
| CPU | Intel Atom® x5-E3930 dual core 1.8GHz |
| Memory | 1 x 204-pin DDR3L SO-DIMM socket support 1867MHz up to 8GB. Default 4GB |
| Expansion | 1 x Full size mini-PCIe socket (USB 2.0) for LTE module with 1 x external SIM 1 x Full size mini-PCIe socket (PCIe 2.0, USB 2.0, mSATA) |
| Function | 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning Built-in G-sensor Built-in TPM |

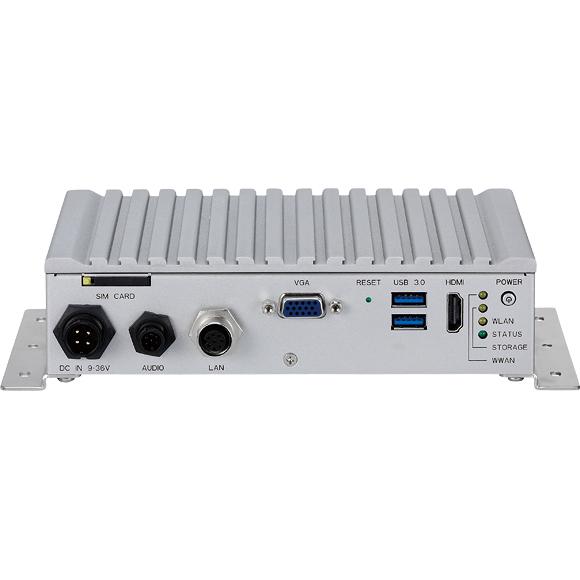

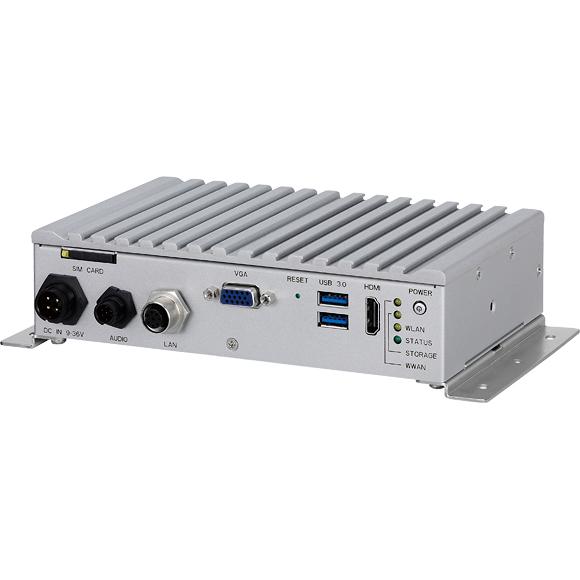

| I/O Interface-Front | 1 x power button 4 x LED indicators for Status (programmable), Storage, WLAN and WWAN 1 x system reset button 2 x type A USB 3.0 compliant host, supporting system boot up 1 x DB-15 VGA 1 x HDMI 1x external SIM card socket 1 x circular connector for 9~36VDC input with ignition and 20W typical power consumption 1 x circular connector for Audio-In and Audio-Out 1 x M12 connector for 10/100/1000Mbps Ethernet |

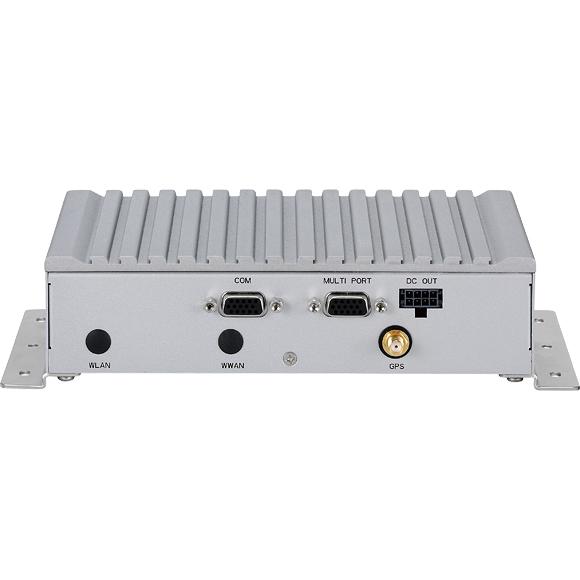

| I/O Interface-Rear | 1 x 12V/2A DC output, SMBus, power button 1 x DB15 COM port for 4 x RS232 Tx/Rx and 2 x RS485 1 x DB15 for multi port - 1 x CAN2.0 - 1 x RS232 Tx/Rx - 1 x odometer and direction for optional DR - 5 x programmable DIO Input voltage (internal type): 5VDC TTL (default) Input voltage (source type): 3~24VDC Digital output (sink type): 5VDC TTL (default), max current: 20mA Digital output (source type): 3~24VDC 3 x Antenna hole for SMA-type antenna (WWAN/WLAN/GPS) |
| Expandable Storage | 1 x 2.5" SSD SATA 3.0 1 x mSATA |
| Operating System | Windows 10 Linux |
| Power Management | Power input 9~36VDC w/o isolation Selectable boot-up & shut-down voltage for low power protection HW design ready for 8-level delay time on/off at user's self configuration Power on/off ignition, software detectable Support S3, S4 suspend mode |
| Dimensions & Weight | 185mm (W) x 120mm (D) x 45mm (H) (7.3" x 4.7" x 1.8") 1 kg (2.20 lbs) |
| Construction | Aluminum top case with sheet metal |
| Environment | Operating temperatures: - EN50155 Class OT4 -40 ~ 70°C, 85°C for 10 minutes (w/ industrial SSD) with air flow Storage temperatures: -40°C to 85°C Relative humidity: 10% to 90% (non-condensing) Vibration: Vibration (random): 2g @5~500 Hz Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test Shock: Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=75 |
| Standards/Certifications | CE FCC Class A EN 50155: 2017 - Ambient temperature EN 50155, Class OT4 (-40~70°C), 85°C for 10 minutes - Interruptions of voltage supply class S1 - Supply change over class C1, C2 - EMC EN 50121-3-2: 2016 - Environment EN 60068-2-1, EN 60068-2-2 - Shock and vibration IEC 61373 Class B - Protective coating class PC1 (PC2, by request) EN 45545-2: 2013+A1:2015 |
nROK 1020-A (P/N: 10V00102002X0)
Intel Atom® x5-E3930 processor 1.8GHz with 4GB DDR3L, U-blox GPS module, GPS antenna, EN50155 Class TX (24VDC w/o isolation)
