MVS 5600-IP
IP65等级的坚固设计
英特尔®酷睿™双核i7-6600U/i3-6100U（Skylake）。
9~36V直流电，带点火控制
内置GPS，可选航位推算
通过3个mini-PCIe插槽，最多2WLAN或2个3G/LTE
对CAN 2.0B和GPI/O进行电气隔离
可选的OBD功能（SAE J1939/J1708）。
丰富多样的GbE、USB 2.0/3.0、串行I/O和存储空间
符合E-mark和ISO 7637-2标准
符合MIL-STD-810G的振动/冲击标准
- 产品介绍
- 技术参数
- 订购信息
- 相关下载

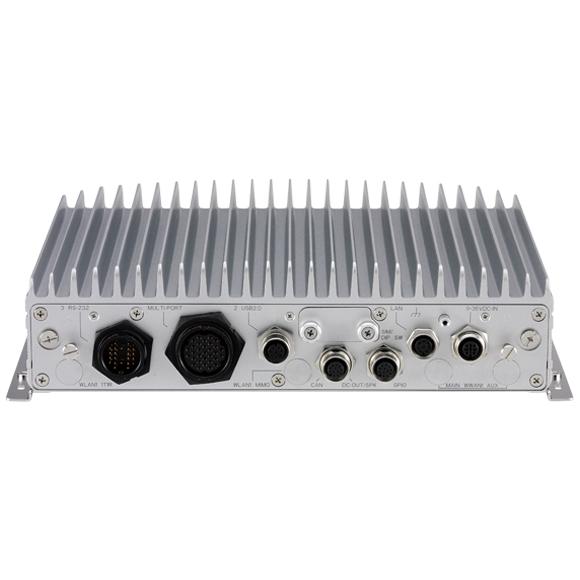

MVS 5600-IP是一款IP65仿佛等级的坚固外壳、免维护的嵌入式计算机，是在极端环境下进行数据采集的理想选择，贯穿于一些车载应用，如运输、重型和废物管理等。所有的外部接口，包括千兆以太网、隔离的CAN总线和数字I/O、USB和RS232/485串行端口，都是在IP67防护的连接器上实现的，以便在恶劣和坚固的环境中进行可靠的数据传输。
MVS 5600-IP是一个模块化的设计，它可以灵活地使用其他种类的扩展板来扩展不同的I/O功能，以快速适应大量的应用。系统内部有四个mini-PCIe插槽和三个SIM卡插槽，提供WLAN、3G/LTE cat.12、CAN OBD（SAE J1708/J1939）或CVBS功能。此外，它可以在-30℃至+60℃的温度下无风扇运行。
MVS 5600-IP支持9~36V DC电源输入，带点火管理，12V DC 2A最大功率输出。它符合E-mark和ISO 7637-2的车辆认证，并符合美国军用MIL-STD-810G，类别4，复合轮式车辆的振动和冲击标准。
| CPU | 6th generation Intel® Core™ dual core i7-6600U, 2.6GHz/i3-6100U, 2.3GHz |
| 内存 | 204-pin DDR3L SO-DMIM socket support 1600MHz up to 16GB 2GB industrial grade memory in default |
| 存储 | 1 x 2.5" SATA 3.0 SSD/HDD 1 x CFast (externally acessible) |
| 扩展 | 1 x full size mini-PCIe socket (USB 3.0/2.0) 1 x full size mini-PCIe socket (USB 2.0) 1 x full size mini-PCIe socket (USB 2.0 + PCIe) 1 x half size mini-PCIe socket (USB 2.0 + PCIe) |
| 卫星导航与车载传感器 | 1 x default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou Optional modules with Dead Reckoning available Built-in G-sensor |
| 以太网 | 2-port 10/100/1000 Mbps Controller: Intel® 1210-T1 |
| 安全 | TPM in option |
| I/O 前面板 | 6 x LED indicators for power/storage/WLAN/WWAN/Status/Health 1 x USB type A USB 3.0 port (w/ lid) 1 x SIM slot (w/ lid) 1 x Mic-in, 1 x Line-out, power & reset buttons for M12 connector 3 x antenna holes for WWAN/GPS One expansion port (M12-type) reserved |
| I/O 后面板 | Circular 22-pin: - 3 x RS-232 (two for full, RI/5V/12V selectable) M12 8-pin: - 1 x GbE M12 8-pin: - 2 x USB 2.0 M12 12-pin: - 3-bit GPO & 3-bit GPI - iButton M12 12-pin: - 1 x Line-out - DC12V-out, 2A max. - OBD from optional VIOB-CAN-05/06 module (SAE J1708/J1939) - 2 x CAN Bus 2.0B from optional VIOB-CAN-04 module Circular 31-pin: - 1 x VGA, resolution up to 2560 x 1600 @60Hz - 1 x GbE - 2 x RS-485 (2-wire) - 1 x CAN 2.0B w/ isolation M12 S-code: - DC 9~36V input with ignition and 40W typical power consumption 6-bit DIP switch (w/ lid) 3 x Digital inputs - Source-type: 9~36V-in (default) - Eexternal-type: 0~33VDC pull-high - Isolation 3 x Digital outputs - Source-type: 9~36V-in (norminal 40mA@24V) (default) - External 5~27VDC pull-high, sink current: typical 220mA for each bit, 500mA max (@25°C) - Isolation Source or external selected by 6-bit DIP Switch 1 x SIM card socket (w/ lid) and 1x internal SIM card socket selectable 4 x antenna holes for WLAN/WWAN 1 x M12 S-code for 9~36VDC-IN |
| 电源 | Selectable boot-up & shut-down voltage for low power protection by software. Setting 8-level power on/ off delay time by software. Support S3/S4 suspend modey |
| 系统 | Windows 7/WES7/Windows 8/WES8/Windows 10/Linux kernel 3.X |
| 基本信息 | 260mm (W) x 198mm (D) x 66.5mm (H) (10.24" x 7.80" x 2.62") 3.3kg |
| 环境 | Operating temperatures: -30°C~60°C (w/ industrial SSD) with air flow Storage temperatures: -40°C~80°C Relative humidity: 10% to 90% (non-condensing) Vibration (random): 1.5g@5~500 Hz (in operation, HDD), 2g@5~500 Hz (in operation, SSD) Vibration (SSD): - Operating: MIL-STD-810G, 514.6C, Category 4 - Storage: MIL-STD-810G, 514.6, Category 24, minimum integrity test Shock (SSD/HDD): - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
| 认证 | CE approval, FCC Class A, E13 |
MVS 5600-3IPK (P/N: 10VS0560005X0)
Intel® Core™ 2c i3-6100U (Skylake) 2.0GHz, 2GB DDR3L industrial grade, 2 x GbE, VGA output, 3 x RS-232, 2 x RS-485, 2 x USB2.0,
1 x USB3.0, 12VDC output, 1 x CAN 2.0B
MVS 5600-7IPK (P/N: 10VS0560004X0)
Intel® Core™ 2c i7-6600U (Skylake) 2.0GHz, 2GB DDR3L industrial grade, 2 x GbE, VGA output, 3 x RS-232, 2 x RS-485, 2 x USB2.0,
1 x USB3.0, 12VDC output, 1 x CAN 2.0B
Cable Kit (P/N: 10VS0262001X0)
External cables for all the communication ports
