MVS 5600
模块化设计，灵活扩展I/O
支持三张SIM卡+双WWAN模块
通过WWAN模块唤醒RTC/SMS
内置u-blox NEO-M8N模块，可选择支持航位推算
英特尔®酷睿™双核i7-6600U/i3-6100U
通过WWAN模块进行语音通信
用于识别驾驶员身份的iButton
内置CAN 2.0B。可选的OBDII功能（SAE J1939)
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
MVS 5600基于第六代英特尔®酷睿™双核i7-6600U 2.6GHz和i3-6100U 2.3GHz，专门为恶劣的车载环境设计。它使MVS 5600在坚固、无风扇和紧凑的机制中符合严格的MIL-STD-810G军事标准。
MVS 5600是一个模块化设计，它可以灵活地使用其他种类的扩展板，为不同的应用扩展不同的I/O功能。MVS 5600利用无线网络来简化车队管理，具有远程、实时视频监控等功能。这种远程能力使公交车队24小时保持服务。车辆数据集成和诊断也通过CAN总线和OBDII进行。
通过iButton功能，可以很容易地进行驾驶员识别管理。可选的内部备用电池可以防范任何意外的车辆电源故障或不稳定的车辆电源。
| CPU | 6th generation Intel® Core™ dual core i7-6600U, 2.6GHz/i3-6100U, 2.3GHz |
| 内存 | 2-channel 204-pin DDR3L SO-DMIM socket support 1600MHz up to 16GB, default 2GB industrial grade memory |
| 存储 | 1 x 2.5" SATA 3.0 SSD/HDD (removable & hot swappable), RAID 0, 1 supported (optional lockable storage available) 1 x CFast (externally accessible) |
| 扩展 | 1 x full size Mini-PCIe socket (USB 2.0) 1 x full size Mini-PCIe socket (USB 2.0 + PCIe) 1 x half size Mini-PCIe socket (USB 2.0 + PCIe) |
| 卫星导航与车载传感器 | 1 x default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou Optional modules with Dead Reckoning available Built-in G-sensor Built-in TPM |

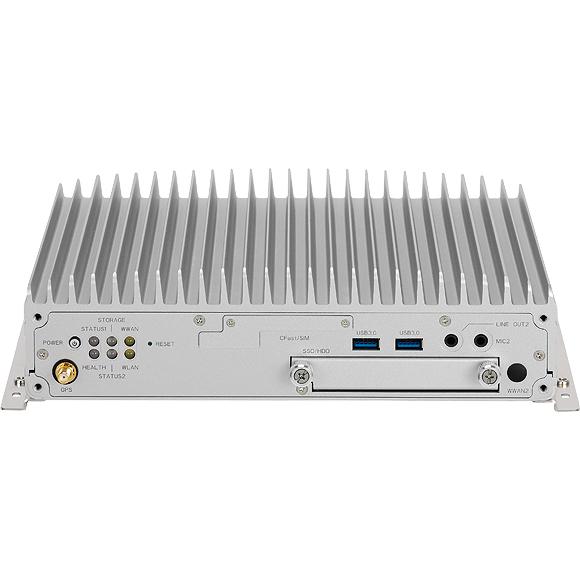

| I/O 前面板 | 6 x LED indicators for power/storage/WLAN/WWAN/Status/Health 1 x CFast socket with cover 1 x Reset button 2 x USB type A USB 3.0 port 2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out 2 x externally accessible SIM card sockets (selectable) 2 x antenna holes for WWAN/WLAN/BT/GPS |

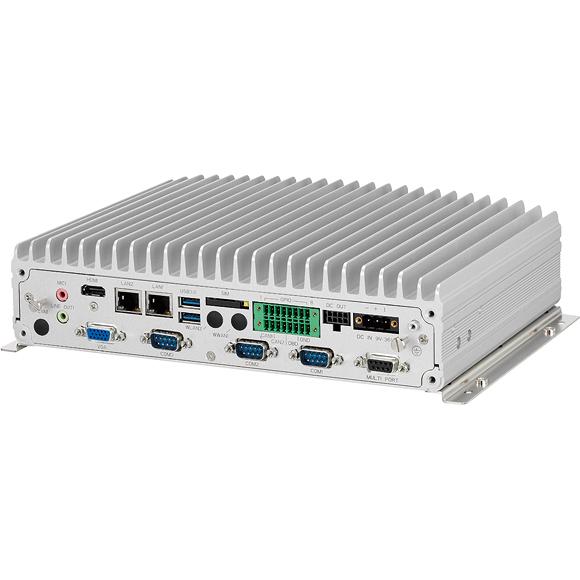

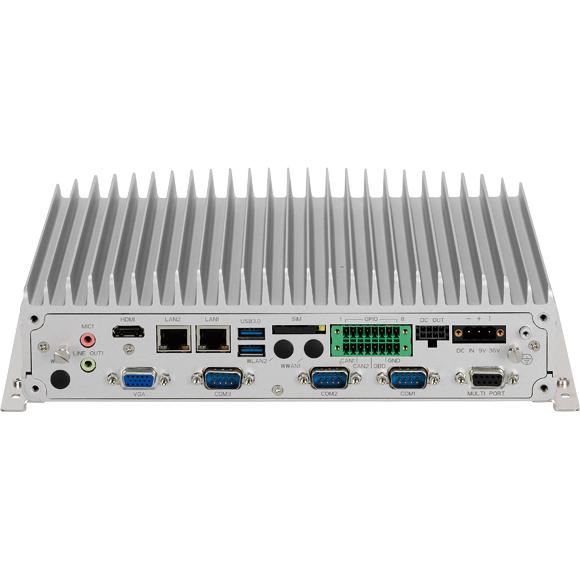

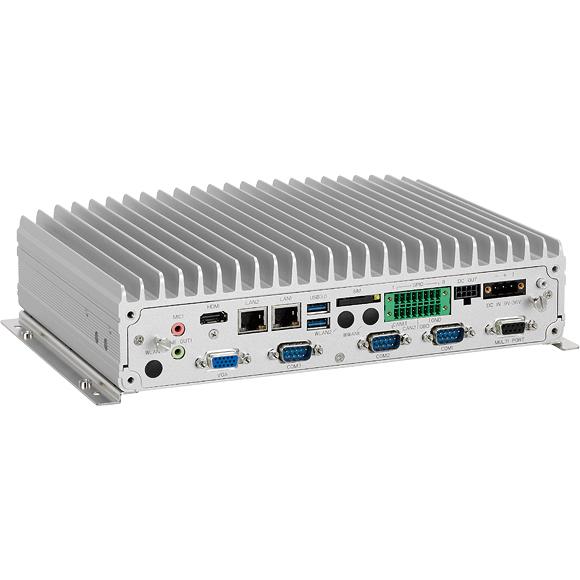

| I/O 后面板 | 2 x RJ45 10/100/1000 Intel® Fast Ethernet with LED 1 x 9~36VDC input with ignition and 34W typical power consumption 2 x USB type A USB 3.0 port 2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out 1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz 1 x HDMI port, resolution up to 2560 x 1600 @60Hz 2 x DB-9 RS-232 1 x DB-9 RS-232/422/485 (RI/5V/12V selectable) 1 x 12VDC output (2A) + SM Bus + 2 x MDI + power button 1 x 16-pin terminal block connector - 1 x CAN Bus 2.0B (on board) - 1 x OBDII from optional VIOB-OBD-03 module (SAE J1939) - 1 x CAN Bus 2.0B from optional VIOB-CAN-03 module - 1 x DB9 connector for optional DR signal input, 2 x MDO and iButton - 8 x programmable GPIO (4 x Digital inputs, w/ optional 3KV isolation protection) Input voltage (internal type): 5VDC TTL (default) Input voltage (source type): 3 ~24VDC (4 x Digital outputs, w/ optional 3KV isolation protection) Digital output (sink type): 5VDC TTL (default), max current: 20mA Digital output (source type): 3 ~ 24VDC, max current: 150mA |
| 电源 | Selectable boot-up & shut-down voltage for low power protection by software. Setting 8-level power on/ off delay time by software. Support S3/S4 suspend mode Optional internal 1100mAh, Li-Polymer rechargeable battery |
| 系统 | Windows 7/WES7/Windows 8/WES8/Windows 10/Linux kernel 3.X |
| 基本信息 | 260mm (W) x 196mm (D) x 66.5mm (H) (10.24" x 7.72" x 2.62") 2.1kg |
| 环境 | Operating temperatures: -30°C~60°C (w/ industrial SSD) with air flow Storage temperatures: -40°C~80°C Relative humidity: 10% to 90% (non-condensing) Vibration (random): 1.2g@5~500 Hz (in operation, HDD), 2g@5~500 Hz (in operation, SSD) Vibration (SSD/HDD): - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD/HDD): - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
| 认证 | CE approval, FCC Class A, E13 Mark |
MVS 5600-7BU (P/N: 10VS0560006X0)
6th generation Intel® Core™ dual core i7-6600U, 2.6GHz, 2GB DDR3L industrial grade SO-DIMM, 2 x 10/100/1000 Ethernet, VGA/HDMI output, 2 x RS232, 1 x RS-232/422/485, 2 x USB3.0, 2 x USB2.0 , 12VDC output, 1 x CAN
MVS 5600-3BU (P/N: 10VS0560007X0)
6th generation Intel® Core™ daul core i3-6100U, 2.3GHz, 2GB DDR3L industrial grade SO-DIMM, 2 x 10/100/1000 Ethernet, VGA/HDMI output, 2 x RS232, 1 x RS-232/422/485, 2 x USB3.0, 2 x USB2.0, 12VDC output, 1 x CAN
