MVS 5603-C8SU

8路PoE移动NVR

模块化设计,灵活扩展I/O

支持三张SIM卡+双WWAN模块

8 x 10/100/1000 Mbps 802.3af PoE 端口

内置u-blox NEO-M8N模块,可选择支持航位推算

英特尔®酷睿™双核i7-6600U/i3-6100U

可充电电池,在系统断电时保护数据安全

两个可移动的SATA 3.0固态硬盘/HDD

iButton用于司机身份识别

内置CAN 2.0B。可选的OBDII功能(SAE J1939)。

模式编号M531607注册,一种简单的方式扩展不同的I/O卡


MVS 5603 8路PoE移动NVR以高视频分辨率和2个可移动的大量存储HDD/SSD容量增加了公交车乘客运输的安全和保障。它最多可连接8个IP摄像机+PoE功能,提供可靠和高质量的巴士周围视频覆盖。


MVS 5603是一个模块化设计,它可以灵活地使用其他种类的扩展板,为不同的应用扩展不同的I/O功能。


MVS 5603利用无线网络来简化车队管理,具有远程、实时视频监控等功能。这种远程能力使公交车队24小时保持服务。


车辆数据集成和诊断也是通过CAN总线和OBDII进行的。针对冲击和振动的MIL-STD-810G是为在恶劣环境下运行而设计的。可选的内部备用电池可以防止任何意外的车辆电源故障或不稳定的车辆电源。


CPU6th generation Intel® Core™ dual core i7-6600U, 2.6GHz/i3-6100U, 2.3GHz
内存2-Channel 204-pin DDR3L SO-DMIM socket support 1600MHz up to 16GB, default 2GB industrial grade memory
存储

2 x 2.5" SATA 3.0 SSD/HDD (removable & hot swappable), RAID 0, 1 supported (optional lockable storage available)

1 x CFast (externally accessible)

扩展

1 x Full size Mini-PCIe socket (USB 2.0)

1 x Full size Mini-PCIe socket (USB 2.0 + PCIe)

1 x Half size Mini-PCIe socket (USB 2.0 + PCIe

卫星导航与车载传感器

1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/BeidouOptional modules with Dead Reckoning available

Built-in G-sensor

以太网供电8-Port RJ45 for 10/100/1000 Mbps PoE IEEE 802.3af conformity, total 60W

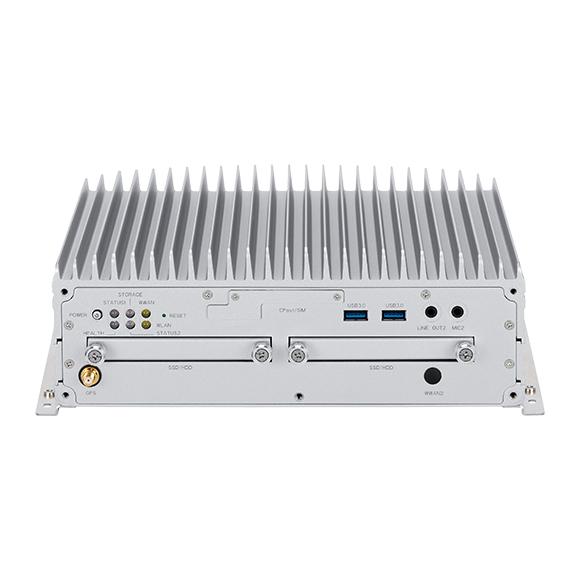

I/O 前面板

6 x LED indicators for power/storage/WLAN/WWAN/Status/Healt

h1 x CFast socket with cover

1 x Reset button

2 x USB type A USB 3.0 port

2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out

1 x externally accessible SIM card socket

2 x antenna holes for WWAN/WLAN/BT/GPS

TPM

Built-in TPM

Infineon: SLB9665TT2.0

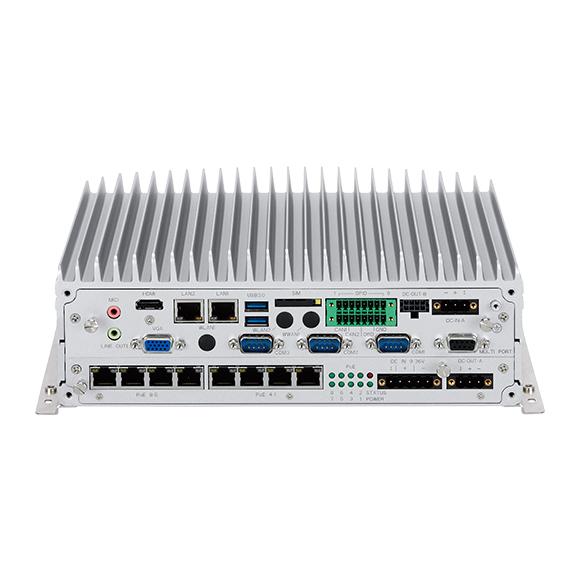

I/O 后面板

8 x RJ45 10/100/1000 Mbps PoE ports with LED

2 x RJ45 10/100/1000 Intel® Fast Ethernet with LED

1 x 9~36VDC input with ignition and 40W typical power consumption (without POE included)

2 x USB type A USB 3.0 port

2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out

1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz

1 x HDMI port, resolution up to 2560 x 1600 @60Hz

2 x DB-9 RS-232

1 x DB-9 RS-232/422/485 (RI/5V/12V selectable)

1 x 12VDC output (2A) + SM Bus + 2 x MDI + power button

1 x DB9 connector for optional DR signal input, 2 x MDO and iButton

1 x 16-pin terminal block connector

- 1 x CAN Bus 2.0B (on board)

- 1 x OBDII from optional VIOB-OBD-03 module (SAE J1939)

- 1 x CAN Bus 2.0B from optional VIOB-CAN-03 module

- 8 x programmable GPIO

(4 x digital inputs)

Input voltage (source type): 5VDC TTL (default)

Input voltage (external type): 3~24VDC (4 x digital outputs)

Digital output (source type): 5VDC TTL (default), max current: 20mA

Digital output (external type): 3~24VDC, max current: 150mA

1 x Externally accessible SIM card socket and 1x internal SIM card socket selectabl

电源

Selectable boot-up & shut-down voltage for low power protection by software.

Setting 8-level power on/off delay time by software. Support S3/S4 suspend mode

可充电电池(可选)

Lithium-ion Polymer

Nominal capacity 1100mAh

Maximum charge current 1.0CmA

系统Windows 7/WES7/Windows 8/WES8/Windows 10/Linux kernel 3.X
基本信息

260mm (W) x 196mm (D) x 91mm (H) (10.24” x 7.72” x 3.58”)

4kg

环境

Operating temperatures:

-30°C~60°C (w/ industrial SSD) with air flow

Storage temperatures: -40°C~80°C

Relative humidity: 10% to 90% (non-condensing)

Vibration (random):

1.2g@5~500 Hz (in operation, HDD), 2g@5~500 Hz (in operation, SSD)

Vibration (SSD/HDD):

- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure

- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test

Shock (SSD/HDD):

- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g

- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

认证CE approval, FCC Class A, E13 Mark


MVS 5603-7C8SU (P/N: 10VS0560305X00)
6th generation Intel® Core™ dual core i7-6600U, 2.6GHz, 2GB DDR3L
industrial grade SO-DIMM, 8 x 10/100/1000 PoE, 2 x 10/100/1000
Ethernet, VGA/HDMI output, 2 x RS232, 1 x RS-232/422/485,
4 x USB3.0, 12VDC output, 1 x CAN


MVS 5603-3C8SU (P/N: 10VS0560306X0)
6th generation Intel® Core™ daul core i3-6100U, 2.3GHz, 2GB DDR3L
industrial grade SO-DIMM, 8 x 10/100/1000 PoE, 2 x 10/100/1000
Ethernet, VGA/HDMI output, 2 x RS232, 1 x RS-232/422/485,
4 x USB3.0, 12VDC output, 1 x CAN


Battery Kit (P/N: 88VS0560303X0)
Rechargeable battery, Lithium-ion, capacity 1100mAh
