MVS 2620-IP

车载 IP65 级箱式计算机

IP65 级坚固设计

英特尔凌动® x7、4c、2.0GHz E3950(阿波罗湖)

9~36V DC 带点火控制

带可选航位推算的内置 GPS

通过 3 个 mini-PCIe 插槽最多支持两个 WLAN 或两个 3G/LTE

CAN 2.0B & GPI/O 电气隔离

可选的 OBD 功能(SAE J1939/J1708)

丰富多样的 GbE、USB 2.0、串行 I/O 和存储

符合 E-mark 和 ISO 7637-2

在振动/冲击方面符合 MIL-STD-810G


MVS 2620-IP 是一款 IP65 级坚固外壳、免维护箱式计算机,非常适合在各种车载应用(如运输、重型和废物管理等)的极端环境中进行数据采集。所有外部接口,包括千兆以太网、隔离式 CAN 总线和数字 I/O、USB 和 RS232/485 串行端口,均在 IP67 防护连接器上实现,以便在恶劣和恶劣的环境中进行可靠的数据传输。


MVS 2620-IP 采用模块化设计,可灵活使用其他类型的扩展板扩展不同的 I/O 功能,以快速适应大量应用。系统内部有四个 mini-PCIe 插槽和三个 SIM 卡插槽,提供 WLAN、3G/LTE、CAN OBD(SAE J1708/J1939)或 CVBS 功能。此外,它可以在 -30°C 至 +70°C 的温度下在无风扇下运行。


MVS 2620-IP 支持带点火管理的 9~36VDC 电源输入和 2A 最大功率输出时的 12VDC。它在车辆证书中符合 E-mark 和 ISO 7637-2 标准,并符合美国军用 MIL-STD-810G,类别 4,复合轮式车辆的振动和冲击标准。


CPUIntel Atom® x7, 4C, 2.0GHz E3950 (Apollo Lake)
内存204-pin DDR3L SO-DMIM socket support 1600MHz up to 8GB, 4GB industrial grade memory in default
存储

1 x 2.5" SATA 3.0 SSD/HDD

1 x CFast (externally acessible)

卫星导航与车载传感器

1 x default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou

Optional modules with Dead Reckoning available

Built-in G-sensor

以太网

2-port 10/100/1000 Mbps

Controller: Intel® 1210-T1

SecurityTPM in option

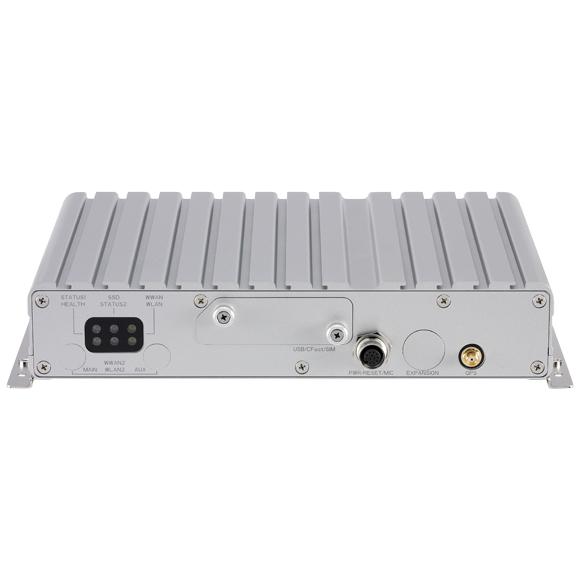

I/O 前面板

6 x LED indicators for power/storage/WLAN/WWAN/Status/Health

1 x USB type A USB 2.0 port (w/ lid)

1 x SIM slot (w/ lid)

1 x Mic-in, 1 x Line-out, power & reset buttons for M12 connector

3 x antenna holes for WWAN/GPS

One expansion port (M12-type) reserved

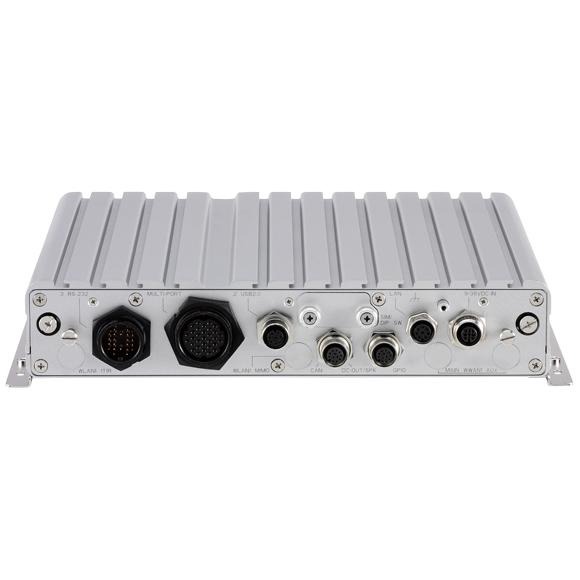

I/O 后面板Circular 22-pin:

- 3x RS-232 (two for full, RI/5V/12V selectable)

M12 8-pin:

- 1 x GbE

M12 8-pin:

- 2 x USB 2.0

M12 12-pin:

- 3-bit GPO & 3-bit GPI

- iButton

M12 12-pin:

- 1 x Line-out

- DC12V-out, 2A max.

- OBD from optional VIOB-CAN-05/06 module (SAE J1708/J1939)

- 2 x CAN Bus 2.0B from optional VIOB-CAN-04 module

Circular 31-pin:

- 1 x VGA, resolution up to 2560 x 1600 @60Hz

- 1 x GbE

- 2 x RS-485 (2-wire)

- 1 x CAN 2.0B w/ isolation

6-bit DIP switch (w/ lid)

3 x Digital inputs

- Source-type: 9~36V-in (default)

-Eexternal-type: 0~33VDC pull-high

-Isolation

3 x Digital outputs

- Source-type: 9~36V-in (norminal 35mA@24V) (default)

- External 5~27VDC pull-high, sink current: typical 220mA for each bit, 500mA max (@25°C)

- Isolation

Source or external selected by 6-bit DIP Switch

1 x SIM card socket (w/ lid) and 1x internal SIM card socket selectable

4 x antenna holes for WLAN/WWAN

1 x M12 S-code for 9~36VDC-IN

电源Selectable boot-up & shut-down voltage for low power protection by software. Setting 8-level power on/ off delay time by software. Support S3/S4 suspend mode
系统Windows 10 64-bit only, Linux YOCTO
基本信息260mm (W) x 198mm (D) x 50mm (H) (10.24" x 7.80" x 1.97")

2.88kg

环境

Operating temperatures:

-30°C~70°C (w/ industrial SSD) with air flow

Storage temperatures: -40°C~80°C

Relative humidity: 10% to 90% (non-condensing)

Vibration (random):

- 1.2g@5~500 Hz (in operation, HDD), 2.5g@5~500 Hz (in operation, SSD)

Vibration (SSD):

- Operating: MIL-STD-810G, 514.6C, Category 4

- Storage: MIL-STD-810G, 514.6, Category 24, minimum integrity test

Shock (SSD/HDD):

- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g

- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75

认证CE approval, FCC Class A, E13


MVS 2620-IPK (P/N: 10VS0262000X0)

Intel Atom® 4c E3950 (Apollo-lake) 2.0GHz, 4GB DDR3L industrial grade, 2 x GbE, VGA output, 3 x RS-232, 2 x RS-485, 3 x USB2.0, 12VDC output, 1 x CAN 2.0B


Cables Kit (P/N: 10VS0262001X0)

External cables for all the communication ports
