(M)PPC-240T-HW-01
16:9 24" Full HD Marine Panel Computer
Intel® Core™ i5-4300U, Dual Core, 1.9 GHz
24" PCAP touch screen with AR coating
4 Gigabit Ethernet/1x DVI-I port for connecting secondary display
2 USB 2.0, 2 USB3 .0
1 RS232/422/485 isolated
DDR3L 4GB/M.2 SATA 128GB
IP65 compliant front panel
Full range AC + 24VDC power inputs
Mounting support: flush/VESA 100mm x 100mm
IEC-60945 maritime standards compliance
- Introduction
- Specification
- Order
- Download

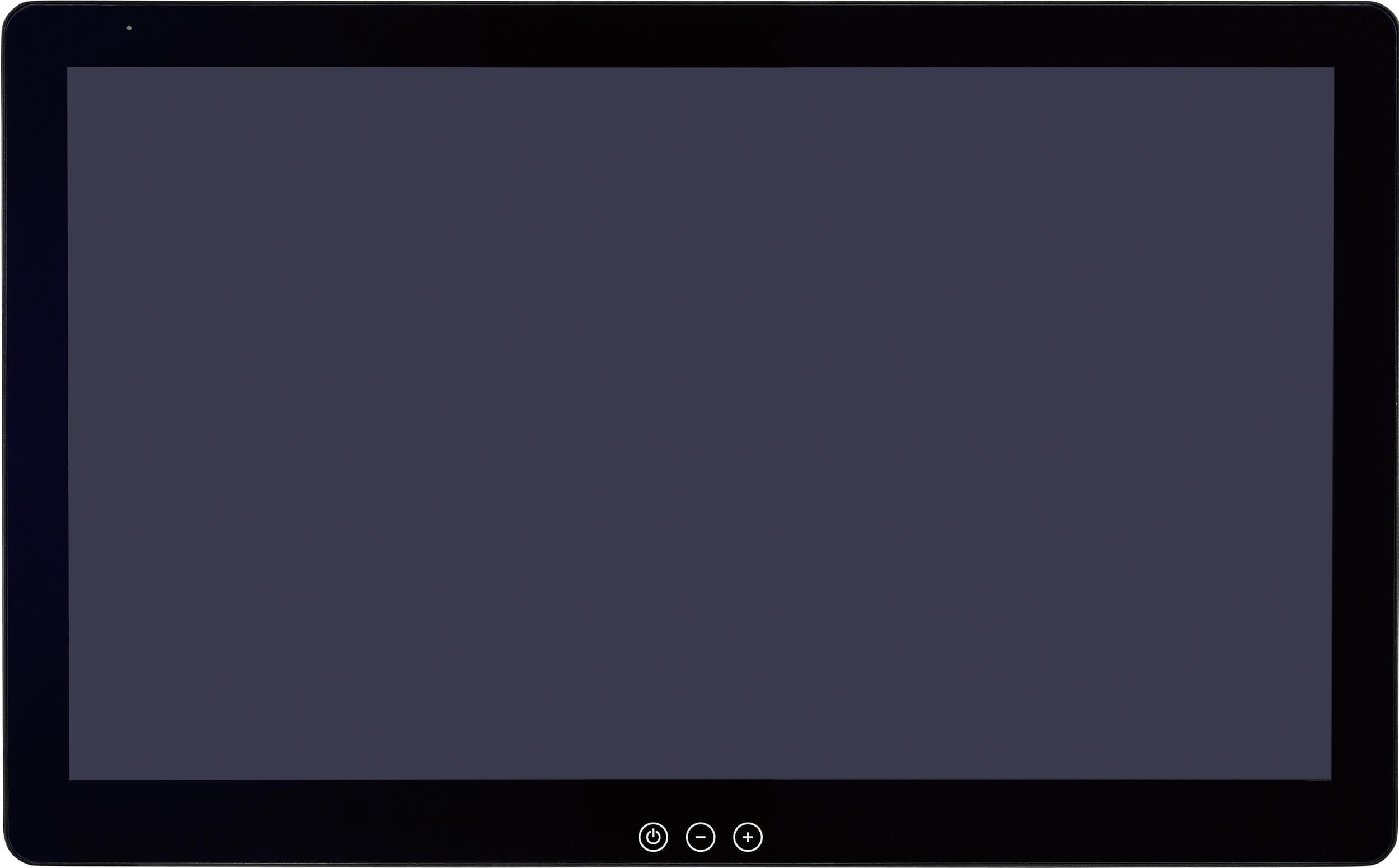

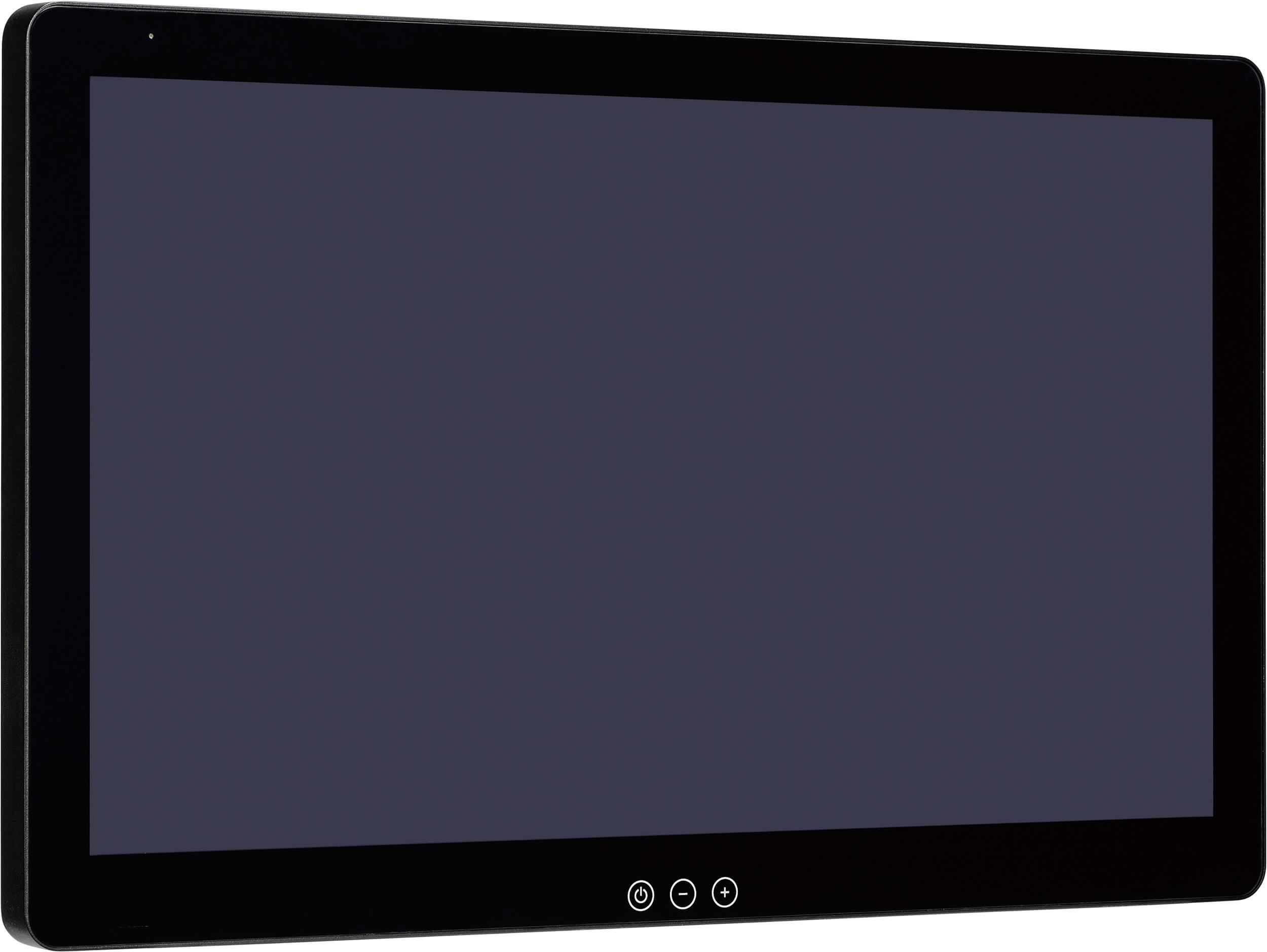

PPC-240T-HW-01 24-inch panel computer features the Intel® Core i5-4300U processor with low power consumption and deliver a reliable, durable, high-performance platform of wide versatility for use in maritime and offshore environments. The panel PC has a touch screen LCD panel with 1920 x 1080 (Full HD) resolution and 300-nit brightness. The front panel which adopts a flush panel design and has IP65 front panel. It offers a projected-capacitive, glove-friendly multi-touch screen for outdoor applications.
PPC-240T-HW-01 has an Isolated RS-232/422/485 port, four Gigabit Ethernet LAN ports, four USB posts, and also comes with a DVI-I port for connecting secondary display, allowing you to extend the screen size and reduce the total cost of system development. The PPC-240T-HW series panel computers are designed with a wide -25°C to 70°C temperature range, supports full range 110/230VAC or 24VDC power inputs and come with a minimalistic and fanless enclosure designed, and satisfy IEC-60945 maritime standards compliance.
| Panel | LED size: 24", 16:9Resolution: Full HD 1920 x 1080Luminance: 300cd/m2Contrast ratio: 5000LCD color: 16.7MViewing angle: 89(U), 89(D), 89(L), 89(R)Backlight: LED |
| Touch Screen | Projected capacitive (flush panel type)Light transmission: 91%Interface: USBWith AR coating |
| System | CPU: onboard Intel® Core™ processor i5-4300U, 1.9GHz, 3M CacheBIOS AMI BIOSSystem memory: 2x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 16GB DDR3L-1066/1333, non-ECC and un-bufferedStorage device - 1x SATA M.2 connector, 128G M.2 SATA (default) - 1x mini-PCIe connectorGraphics: Intel® HD GraphicsWatchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)H/W status monitor: monitoring system temperature, and voltageControl buttons - Poweron/off, reset, brightnessBacklight control - Auto dimming function can be adjust by ambient light sensor - Panel backlight can be controlled by software, dimming range from 0% to 100% |

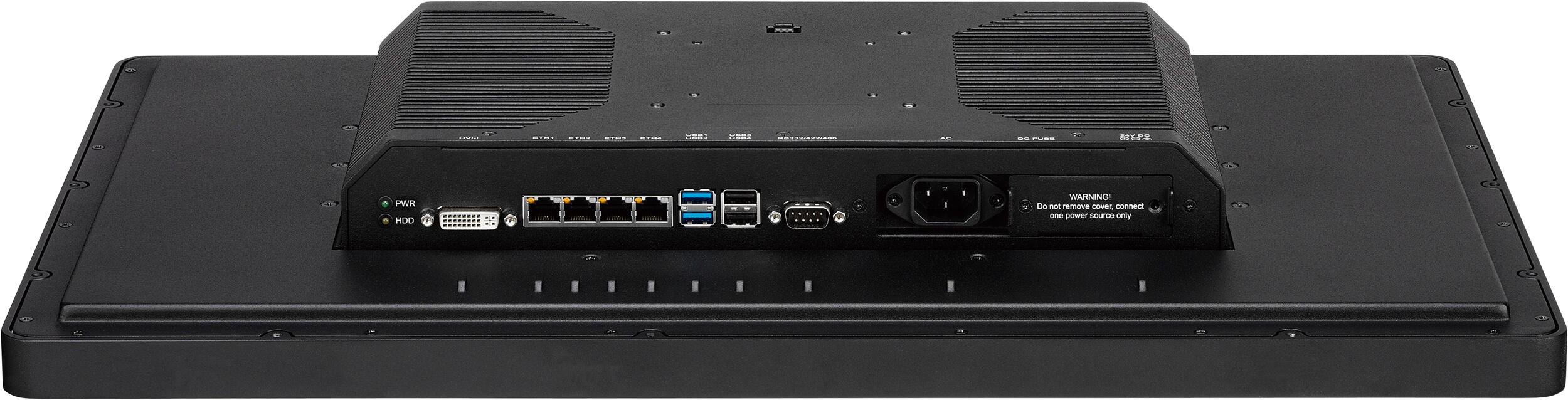

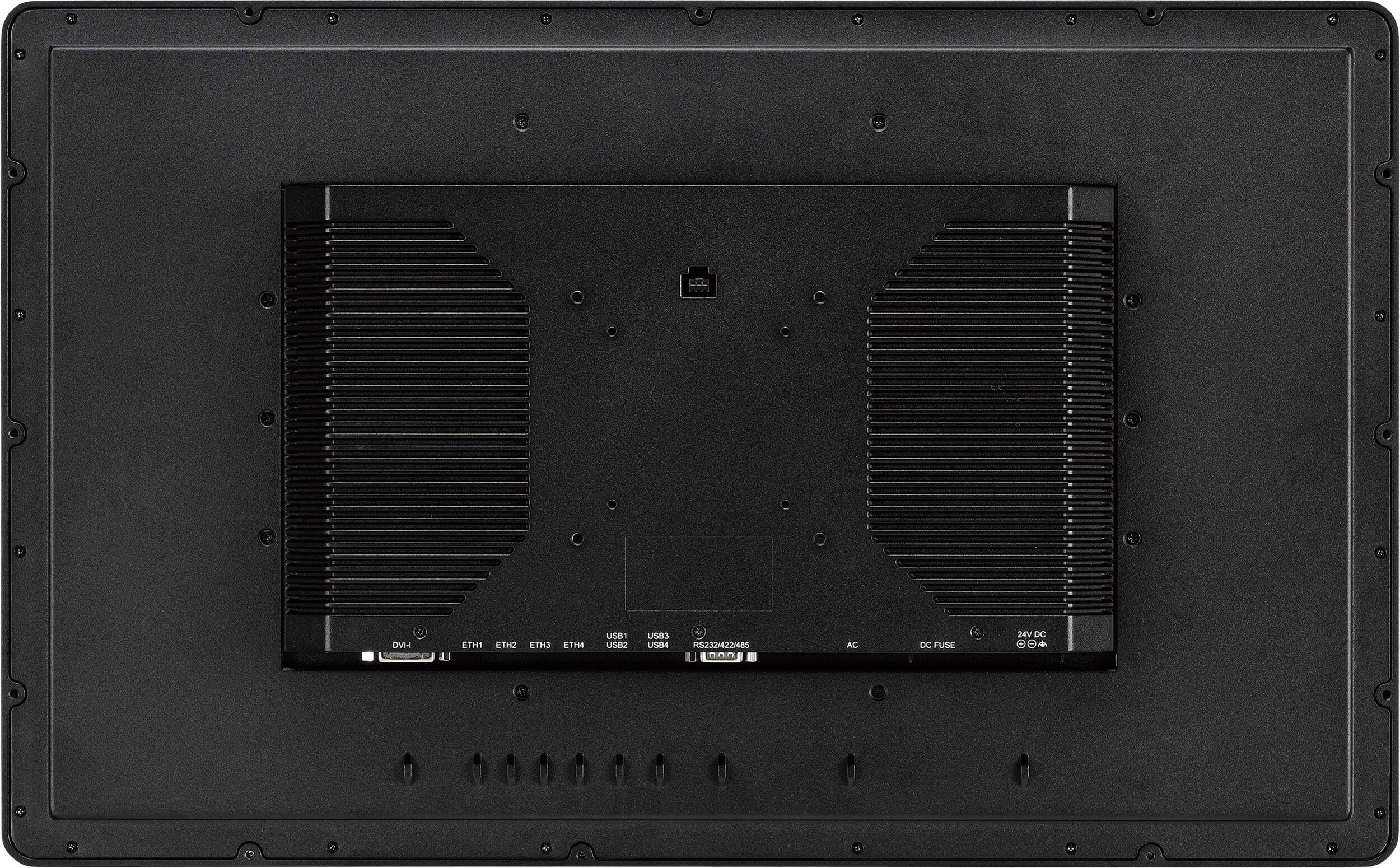

| Rear I/O | Ethernet: 4x RJ452nd display port: 1x DVI-I portUSB: 2x USB 2.0, 2x USB 3.0COM #1: 1x RS232/422/485Power status/ HDD status LEDsAC power input connector: IEC 60320 C14 connectorDC power input connector: 3-Pin Phoenix terminal blocks |
| EtherNet | LAN chip: 2x Intel® I210-IT Gigabit LAN + 2x Intel® 82574 Gigabit LANEthernet interface: 10/100/1000 MbpsSupport wake up on LAN |
| Power Requirements | AC power input - Input voltage: 110/230VAC - Power consumption: 28W to 55WDC power input - Input voltage: 24VDC - Reverse polarity protection - Galvanic isolated * Note: only one power source (AC or DC) to be connected. No failover functionality |
| Mechanical & Environment | Fanless system designColor - Pantone black RAL9005, powder painting for aluminum front bezel - Pantone black RAL9005 for backlight button membraneIP protection - IP65 front bezel - IP20 back systemMounting: flush/VESA 100mm x 100mmVibration - Compliance with EN60945 protected b - Sweep 2 Hz – 13.2 Hz at ±1 mm, 13.2 Hz – 100 Hz at 7m/s2 and for 2 h on each resonance (Q>5), 2h on one resonance/observed frequency (Q<5), otherwise (Q=0) 2 h at 30 Hz in all three axes, 12 minutes/axisShock - IEC 68 2-27 - 20G @ wall mount, half sine, 11msOperating temperature: -25°C to 70°CStorage temperature: -25°C to 75°COperating humidity: 10%~90% relative humidity, non-condensingDimension: 590 x 366.6 x 71.66 mmWeight: 9 KG |
| Certifications | CE approval FCC Class A CCC approval IEC-60945 maritime standards compliance |
PPC-240T-HW-01 (P/N: 10M20240T00X0)
24” Full HD LED backlight touch panel PC, Intel® Core™ i5-4300U 1.9 GHz, touch screen, 4GB DDR3L, 128G M.2 SATA, 1x RS23/422/485, PCAP control buttons
