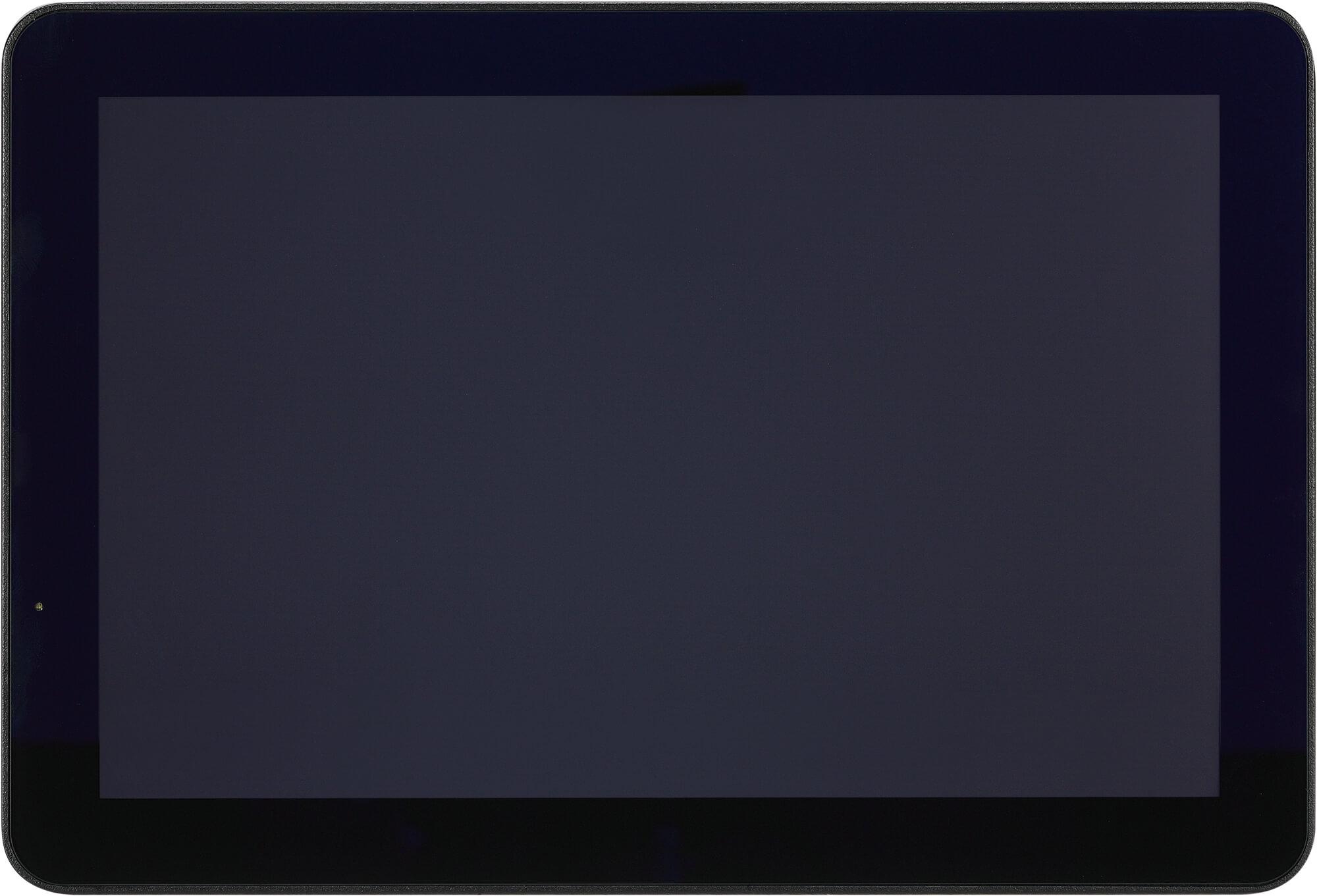

(M)PPC-120T-BT-01

12” WXGA 16:9 Marine Panel PC with Intel® Atom™ E3845, 1.91GHz

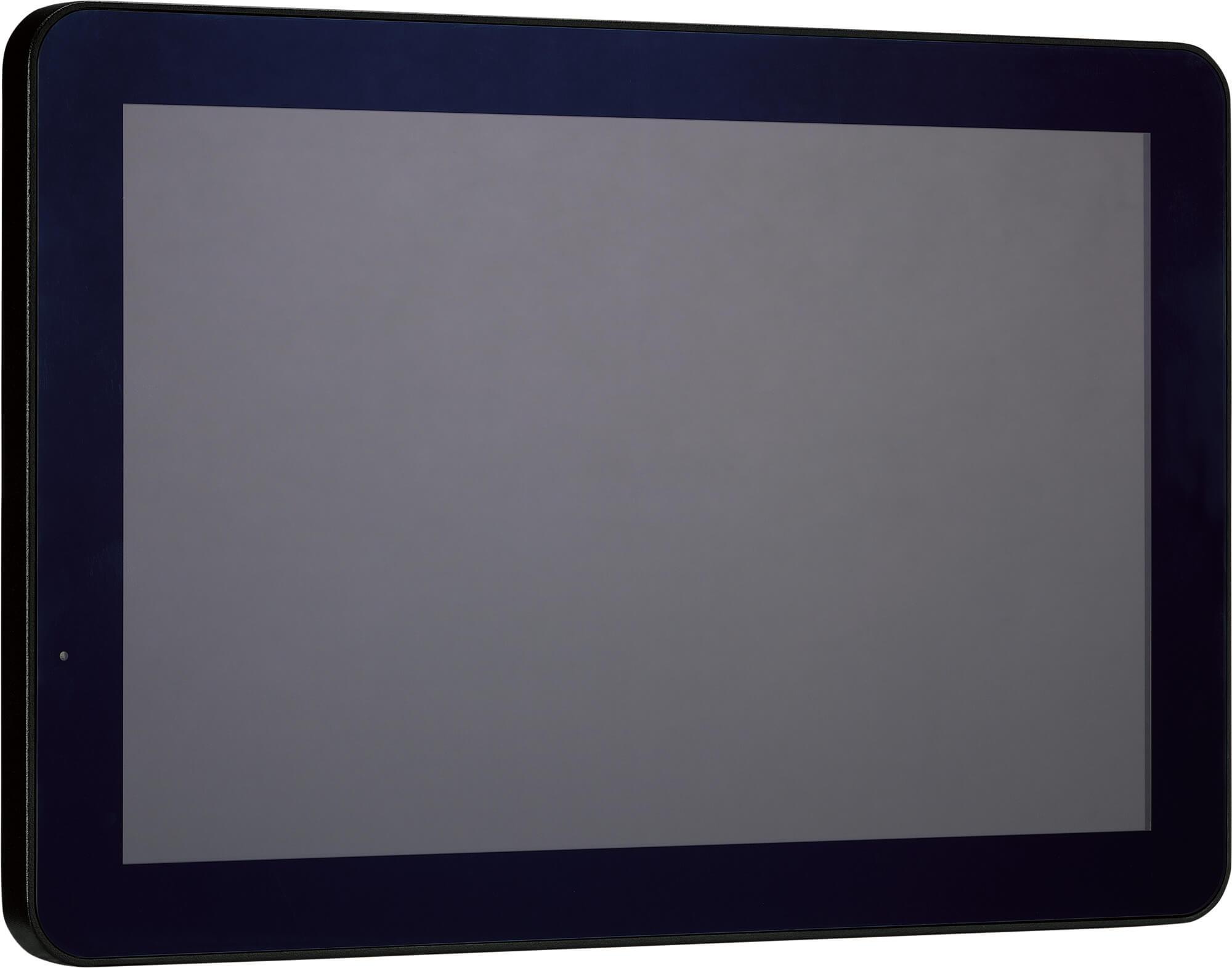

16:9 12” WXGA marine panel computer

Intel® Atom™ E3845, Quad Core, 1.91GHz

12” PCAP touch screen with AR coating

4 Gigabit EtherNet/mini DisplayPort for external monitor

1 USB 2.0, 1 USB 3.0

1 RJ45 output for RS232/422/485

DDR3L memory/M.2 SATA storage

1 swappable SSD Tray for 2.5” SSD

IP65 compliant front panel

Built-in 24VDC power input

Mounting support: flush/VESA 75mm x 75mm

IEC-60945 maritime standards compliance


PPC-120T-BT-01 12-inch panel computer features the Intel® Atom™ E3845 processor with low power consumption and deliver a reliable, durable, high-performance platform of wide versatility for use in maritime and offshore environments. The panel PC has a touch screen LCD panel with 1280 x 800 (WXGA) resolution and 500-nit brightness. The front panel which adopts a flush panel design and has IP65 front panel. It offers a projected-capacitive, glove-friendly multi-touch screen for outdoor applications.


PPC-120T-BT-01 has a RJ45 output for RS-232/422/485, four gigabit EtherNet LAN ports, two USB posts, and also comes with a mini DisplayPort for external monitor, allowing you to extend the screen size and reduce the total cost of system development. The PPC-120T-BT series panel computers are designed with a wide -25°C to 70°C temperature range, supports 24VDC power input and come with a minimalistic and fanless enclosure designed, and satisfy IEC-60945 maritime standards compliance.


PanelLED size: 12”, 16:9
Resolution: WXGA 1280 x 800
Luminance: 500cd/m2
Contrast ratio: 1000LCD
color: 16.2M
Viewing angle: 88(U), 88(D), 88(L), 88(R)
Backlight: LED
Touch ScreenProjected capacitive (flush panel type)
Light transmission: 89%
Interface: USB
With AR coating
SystemCPU: onboard Intel® Atom™ processor E3845, 1.91 GHz, 2M L2 Cache
BIOS AMI BIOS
System memory
- 1x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 4GB DDR3L-1067/1333, non-ECC and un-buffered
Storage device
-  1x SATA M.2 connector, 128G M.2 SATA (default)
   1x SATA connector, support SATA 3Gb/s and SATA 6Gb/s
   1x swappable SSD tray for 2.5” SSD
Graphics: Intel® HD Graphics
Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)
H/W status monitor: monitoring system temperature, and voltage
Backlight control
- Control button: increase brightness, decrease brightness, backlight on/off
- Auto dimming function can be adjust by ambient light sensor
- Panel backlight can be controlled by software with 45 steps, dimming range from 0% to 100%

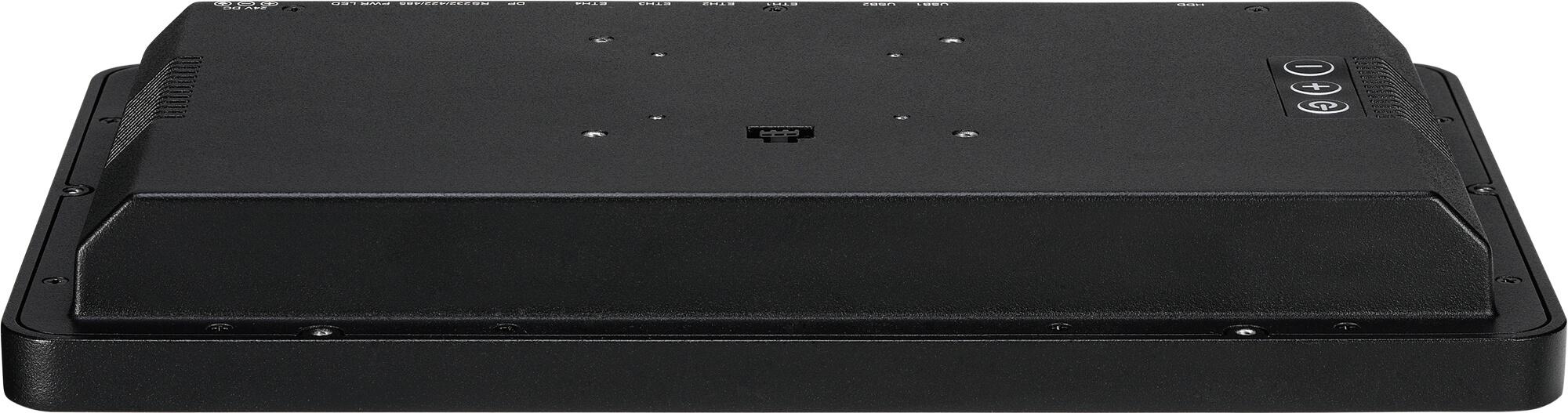

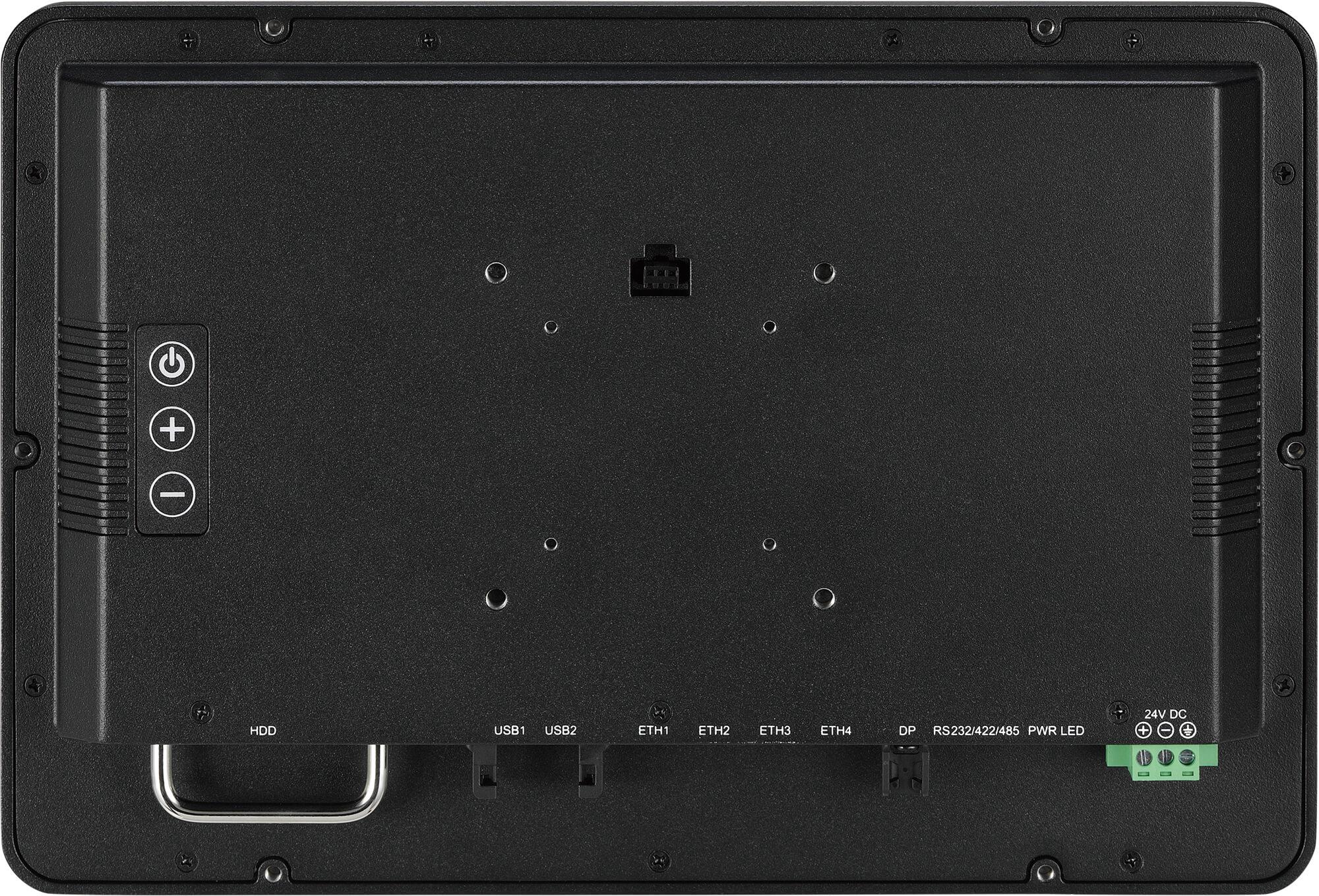

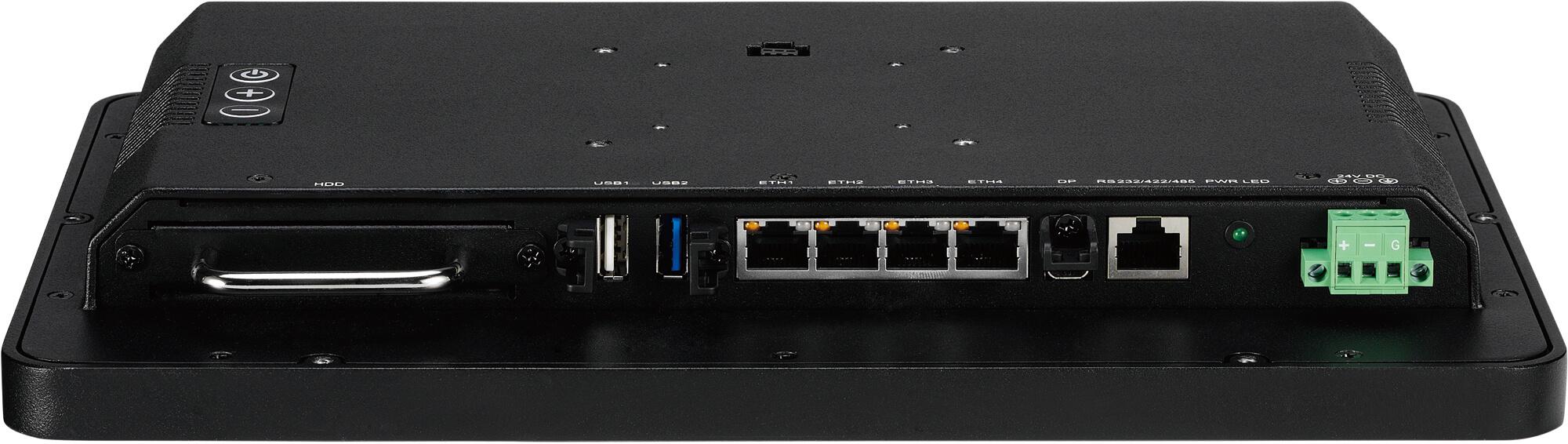

Rear I/OEtherNet: 4x RJ45
2nd DisplayPort: 1x mini DisplayPort
USB: 1x USB 2.0, 1x USB 3.0
COM #1: 1x RJ45 output for RS232/422/485
Power status LED
DC power input connector: 3-pin Phoenix terminal blocks
EtherNetLAN chip: 4x Intel® I210-IT Gigabit LAN
EtherNet interface: 10/100/1000 Mbps
Support wake up on LAN
Power RequirementsInput voltage: 24VDC
Reverse polarity protection
Galvanic isolated
Power consumption: 22W to 30W
Mechanical & EnvironmentFanless system design
Color
- Pantone black RAL9005, powder painting for aluminum front bezel
- Pantone black RAL9005 for backlight button membrane
IP protection
- IP65 front bezel
- IP20 back systemMounting: flush/VESA 75mm x 75mm
Vibration
- 1.15Grms @ random condition, 1~200Hz, 1.5hr/axis (operating/non-operating)
Shock
- IEC 68 2-27
- 20G @ wall mount, half sine, 11ms
Operating temperature: -25°C to 70°C
Storage temperature: -25°C to 75°C
Operating humidity: 10%~90% relative humidity, non-condensing
Dimension: 307.5 x 209 x 39.9 mm
Weight: 5 KG
CertificationsCE approval
FCC Class A
IEC-60945 maritime standards compliance


PPC-120T-BT-01 (P/N: 10M20120T00X0)
12” WXGA LED backlight touch panel PC, Intel® Atom™ E3845 1.91GHz, touch screen, 4GB DDR3L, 128G M.2 SATA, 1x RJ45 output for RS23/422/485, brightness adjustment buttons
